Product Description
Specifications

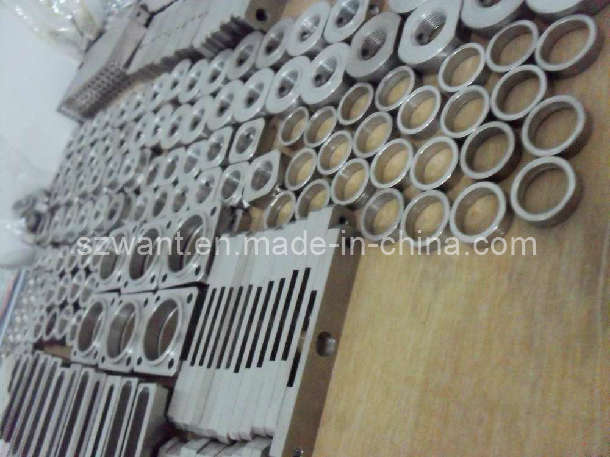

High quality CNC machine parts
precision CNC machining parts
carbn steel, brass material
OEM available
ISO9001-2008
High quality CNC machine parts
carbn steel, brass material
cast and machining part assembled
ISO 9001-2008 certificate
100% export
The shortest lead time is 7 days
samples provided before production
QC inspection 100%
Precision cnc machining, steel machining
A:certification: ISO9001:2008
B.Products Available
bolts, screws, nuts, rivets, Heatsink, shafts(axles, spline shafts, dart shafts),gears (pinions, wheels ) bearing, LED light-fixture, auto parts, electronic parts, etc.
C.Advantage
1. Competitive price with good quality
2. Low MOQ (200pcs is even acceptable in some special conditions)
3. Short lead time (7-30days according to order qty)
4. Customized size and spec /OEM available
5.Near shenzhen and HK, convenient transportation
D.Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316 etc.
2. Carbon Steel: AISI 1045, 9SMnPb28 etc
3. Brass:C36000 (C26800), C37700 (HPb59), C38500(HPb58), C27200(CuZn37), C28000(CuZn40) etc.
4. Bronze: C51000, C52100, C54400, etc.
5. Iron: grey iron and ductile iron
6. Aluminum: 6061, 6063,7075,5052 etc.
E.Processing Method
cnc machining, turning, milling, drilling, grinding, broaching, welding and assembly.
F.Package
suitable for sea and air transportation or as required
CNC Swiss Turning Center Capabilities |
|
|
|
|
|
| Processes (General Capabilities) | Boring | Milling |
| Deburring | Polishing |
| Drilling | Reaming |
| Knurling | Turning |
| 7 Axis Cutting | 12 Live Tools |
| Cross Milling & Drilling |
|
|
| Processes (Special Capabilities) | Broaching | Knurling |
| Deep Hole Drilling | Slotting |
|
| Processes (Threading) | External Thread Cutting |
|
| Internal Thread Cutting |
|
|
| Tolerance (+/-) | 0.0005 in | Tight Tolerance |
| Precision | Ultra Precision |
|
| Outer Diameter | Max |
| 20 mm |
|
| Part Length | Max |
| 6 in |
|
| Equipment Capabilities | 7-Axis Machining Capabilities | Single Spindle |
| Mitsubishi CNC Control | Swiss Screw Machine |
| Multi-Spindle |
|
|
| Support Machine Tools | Miyano BND345 w/ Bar Feed |
|
| Hardinge CH Bar |
|
| Hardinge GT |
|
|
| Additional Capabilities | CAD Design Support |
|
| CAM Programming |
|
| Coordinate Measuring Machines (CMM) |
|
| Design Review for Manufacturability |
|
|
| Materials (Metals) | Alloy Steels | Copper |
| Aluminum | Invar |
| Brass | Kovar |
| Bronze Alloys | Stainless Steel |
| Carbon Steel |
|
|
| Materials (Plastic Polymers) | ABS (Acrylonitrile Butadiene Styrene) | Polyetheretherketone (PEEK) |
| Acetal / Delrin | Polyetherimide / Ultem |
| Acrylic | PTFE (PolyTetraFluoroEthylene) |
| Nylon | PVC (Polyvinyl Chloride) |
| Phenolic | PVDF (Polyvinylidene Fluoride) |
| Polyamide-Imide | Teflon |
| Polycarbonate | Torlon |
|
| Secondary Services Offered | Anodizing (All colors) | Silk Screening |
| Passivating | Painting |
| Electroless Nickel | Heat Treating |
| Electro Polish | Black Oxide |
| Bead Blasting | Ebonal C |
| Laser Engraving |
|
|
| Lead Times Available | Job by Job Basis |
|
| Expedited Services Available |
|
|
| Production Volume | Prototype |
|
| Low Volume |
|
| High Volume |
|
|
| Intended Application | Blood Analyzers, Hand Held | Microscopes |
| Borescopes | Multi-Element Zoom Systems |
| CCD Camera Systems | Nano Positioning Stages |
| Custom Optical Systems | NIR Systems |
| Endoscopes | Optical Scanners |
| Galvanometers | Precision Motion Control Stages |
| High Speed Shutters | Scanning Mirrors |
| Inspection Instruments | Small Motion Systems |
| IR Systems | Test and Measurement Systems |
| Laser Marking |
|
| Laser Scanning |
|
| Linear and Rotary Stages |
|
|
| Markets | Aerospace | Life Sciences |
| Automotive | Medical |
| Biomedical | Metrology |
| Contract Manufacturing | Military |
| Data Collection/Transfer | Night Vision - IR/NIR |
| Defense and Security | Optics and Photonics |
| Fiber Optic Illumination | Projection Optics |
| Laser Marking | Semi Conductor |
| Laser Scanning | Vision Systems |
| Law Enforcement |
|
Shenzhen Wan Tongzhen Electrical and Mechanical Services Co., Ltd. Located in 1st Floor. Building 15, San Zhuli, Shiyan Town, Bao'an Disrtict, Shenzhen, Guangdong.
We are specialized in all kinds of customized precision machine part processing, work fixture and jig, Development and production of automation machinery equipment. Now we owned automatic engine lathe, milling machine, grinder, Line section cut processing equipment and CNC automatic processing center.
Here we are of Well-found processing equipment, High technology and workmanship, stong technical force, and we can fulfill all customers' requirements.
