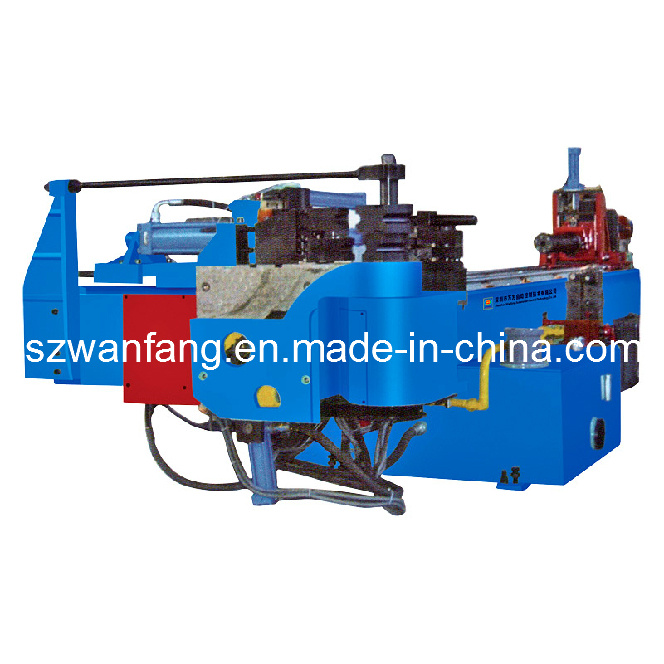

| Prod Model: |
Wfcnc114X8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Hardware: use the international mainstream products, commercialization, modular design and installation, simple structure , the domestic efficient supply is convenient for troubleshooting and after-sales service
Master control system: Adopt PLC control, 10 "color touch display, with intuitive and quick operation
Using France schneider brand products or similar products
|
Specification/Model |
WFCNC114x8 |
|
Max. bending capacity(mm) |
Φ114x8 |
|
Min. bending capacity(mm) |
Φ30 |
|
Max. bending radius(mm) |
580 |
|
Min. bending radius(mm) |
50 |
|
Max. bending angle |
190 |
|
Length of mandrel(mm) |
5500 |
|
Mandrel stroke(mm) |
1000 |
|
Mandrel adjustment(mm) |
100 |
|
Clamp die stroke(mm) |
320 |
|
Clamp die return stroke(mm) |
320 |
|
Follower die stroke(mm) |
1000 |
|
Pipe end Min. length(mm) |
500 |
|
Tools centerline height(mm) |
95 |
|
Working height(mm) |
1200 |
|
Speed range |
Bending speed C(r/min) |
0-3 |
|
Feeding trolley walking speed Y(r/min) |
0-16 |
|
Clamping set speed B(r/min) |
0-6 |
|
Pre-set speed(each axis-CNC) |
9 |
|
Working accuracy |
Bending accuracy C axis(°) |
±0.1 |
|
Feeding accuracy Y axis(°) |
±0.15 |
|
Rotary accuracy B axis(°) |
±0.1 |
|
Capacity of memory |
10^5 |
|
C-axis stall torque(N.m) |
89000 |
|
Motor power (KM) |
45 |
|
Hydraulic system pressure(Mpa) |
14 |
|
Hydraulic tank capacity(L) |
550 |
|
Dimensions: L*W*H(m) |
9.9*3.52*2.3 |
Shenzhen Wanfang Automation Technology Co., Ltd. Is A Tube Processing Equipment Manufacturing Company Collecting Independent R & D Design Production And Sales In A Body.
Our Company Has More Than 30 Years Of Experience In Research, Desigh, Manufacturing And Procesing.
CNC Series Tube Bender Which Is Self-developed Has Been Awarded The National And Provincial Scientific And Technological Progree Award. Our Engineering Staff Has Participated In Customized Of Bending Industry-standard And Revised Of Forging Guide. We Have Repeatedly Solved Difficult Processing Of Shaped Tubes For Domestic And Foreign Customers.
Our Products Are Widely Used In Coach, Shipbuilding, Boiler, Nuclear, Air-condicition, Furniture Manufacturing, Steel Structure, Electric Power, Petroleum, Chemical, Metallurgical And Heavy Machinery Manufacturing Industry, etc.
Our Main Customer Is Domestic And International Famous Big, Medium Companies. Our Quality Control System Strictly Complies With ISO 9001 Standards.
Our Products Are Include: CNC Tube Bending Machine. Hydraulic Tube Bending Machine. Profile Bending Machine. Special Tube Bending Machine. (Intermediate Frequency Tube Bending Machine , Swage Tube Bending Machine)Tube-cutting Machine. Tube-end Forming Machine.
If You Are Interested In Any One Of Them, Please Feel Free To Contact Me. We Warmly Welcome You To Visit Us Anytime.
