| Prod Model: |
GH--CNC50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Spring Machine |
Product Description

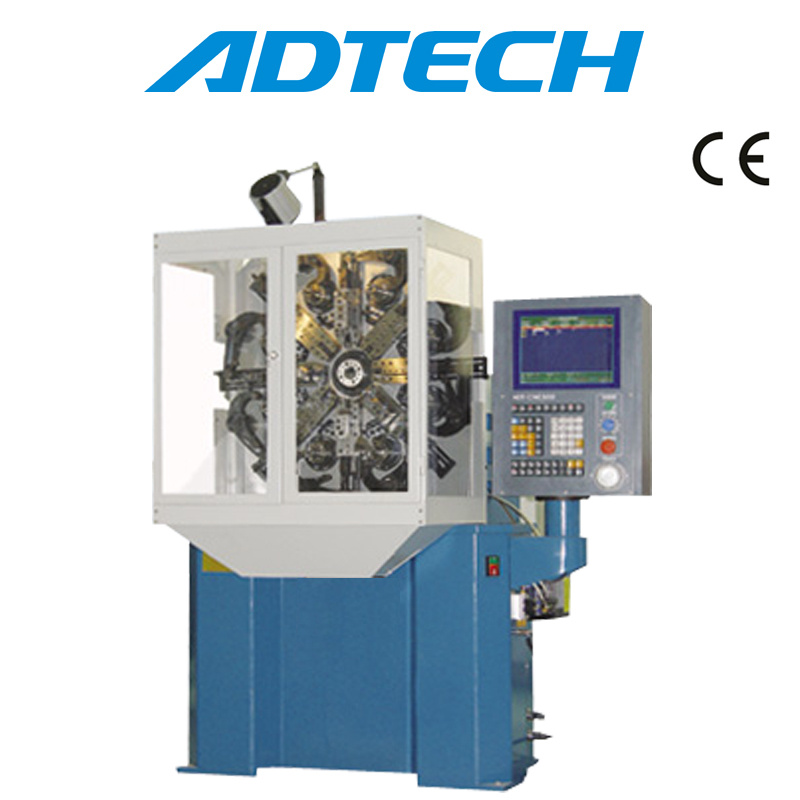

1. GH-CNC50 coiling spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sets-group slide rails, the crank and the cam rotation axis. The winch and cam rotation have three mechanical action types: Extrusion, punching and molding.
2. The computerized cam rotation system can be set from 0.1~359.9". Every two wire feeding wheels is one group, there are three groups.
3. GH-CNC50 machine is equipped with ADT-CNC625 computer. The computer system can save 1000 material numbers. Axis location, feeding data, production speed and production output are displayed on the screen. The program data can be set and changed easily.
4. The rotation core system is installed on the axis. The axis can rotate leftwards and rightwards. The rolling axis is installed on the sliding house. The cam rotate is up to 360". More than that can come leftwards and rightwards or the rotation of the cam in a specific.
Optional accessories: Cutting tool, rolling axis
|
Model |
GH-CNC50 |
|
Axis |
3 Axis |
|
Diameter |
2.0~5.0mm |
|
Max Feeding Dia |
300mm |
|
Max Feeding Length |
unlimited |
|
Max production speed |
50RPM |
|
Probe |
4set |
|
Cam Servo Motor |
5.5kw |
|
Wire Feed Servo Motor |
7.0kw |
|
Axis Servo Motor |
1.5kw |
|
Coiling Axis |
400w |
|
Power AC |
three-phase 380V |
|
Dimension |
1800 X 1300 X 2100mm |
|
Weight |
3500kg |
ADTECH (Shenzhen) Technology Co., Ltd., was established at Hi-tech Industrial Park Nanshan District, Shenzhen in 1997. By the end of 2011, the company has acquired more than 27 patents and 35 certifications.
ADTECH Industrial Park covering nearly one million square meters has been finished and started mass production. In the overseas market, our products have reach over fifty countries and regions like Europe, America, the Middle East, South-east Asia.
