| Prod Model: |
JUST-13059 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Customer 's Drawing: |
Acceptable |
| Molding Style: |
Forging |
| Processing Object: |
Metal |
Product Description

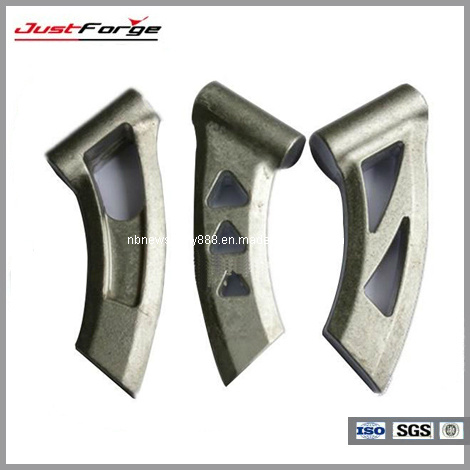

Forging Part details
1. Forging part, forged part
2. Process: Hot Forging, close die forging, open die forging, free forging, mould forging,
3. Material inculudes: Aluminum forging as cutomer appointed.
4. Heat treatment: Quenching, Normalizing, Tempering, etc. With the help of heat treatment process, It is OK for us to control the mechanical properties very well, such as hardness, tensile strength, etc
5. Quality control: ISO
6. Weight controlled: 0.1- 30000KG. For small parts, we will use the mould forging process;
For bigger parts, it is OK to use open die forging.
Advantage of Tontel Forging part:
1. OEM FACTORY
2. ISO9001: 2008
3. High quality & much better price
4. Short delivery time: 15 working days from your order.
5. Good after-sale service
The following is list of our forging component:
Forged Automotive Components Forged Truck Components Forged Tractor Components
Forged Gear Components Forged Metal Building Components Forged Shaft Components
Forged Trailer Components Forged Steering Components Forged Railway Components
In addition to above forged components, we may manufacture the forged components according to the clients' drawings or requirements. If you need a good forging manufacturer, please send your enquiry to us.
|
1.Open Die Forging |
|
1) Suitable for: |
Small bath or Big size part. |
|
2) Material: |
Carbon steel, Alloy steel, Stainless steel,aluminum/brass |
|
3) Industry involved: |
Fluid power industry/ Automotive industry |
|
4) Part overall dimension limit: |
not exceed Dia.4000 (mm) |
|
5) Representative product: |
Flanges/Gears |
|
5) Manufacturer Certification: |
ISO9001 (2000) |
|
2.Close die forging |
|
1) Suitable for: |
big bath & medium size |
|
2) Material: |
Carbon steel, Alloy steel, Stainless steel,aluminum/brass |
|
3) Industry involved: |
Automotive industry/Engineering/^. |
|
4) Part overall dimension limit: |
max 4000tons
Hot die forging press: up to 2500tons
Electronic hydraulic hammer: up to 5tons |
|
5) Representative product: |
Auto connecting rods/Steering engines/Gears/Driving shafts/Vehicle axles |
|
6) Manufacturer Certification: |
ISO9001 (2000)/TS16949.
|
Ningbo New Sunny Co., Ltd. Founded in 1985, is a private company with 300 employees. It takes 6, 000 square meters of building area. The company's fixed assets amount to 10 million US Dollars. Our company is 15 kilometers near from Ningbo International Airport. Also 40 kilometers from Ningbo Beilun Seaport which is third largest port in China.
Ningbo New Sunny Co., Ltd has two wholly owned factory which one is Ningbo JUST forging Co., Ltd, another one is Ningbo New Sunny Plastic Auto Part Co., Ltd. From 1985 year, we produced forged valve body, forged valve bonnet, forged iron core of rubber track, forged stainless steel component, forged car steering knuckle, forged cross shaft, forged mechanical parts, forged auto parts, forged motorcycle parts, etc. These products are exported to the United States, Canada, Germany, Sri Lanka, Turkey, and Southeast of Asian included more than 150 countries of the world...
Durning the more than 20 years development, due to complete and excellent production equipments, advanced technologies and whole testing facilities, we enlarge our products line to molding system. Such as provides injection molding, stamping plastic products processing plastic, non-standard plastic tools for all kinds of auto parts.
Our company has advanced processing equipment die - CNC machining centers, CNC milling machine, EDM machine tools, WEDM and lathes, MILLING machines, GRINGING machines, production of all die on their own equipment and processing. The annual capacity of the company is 10000 ton forged & million injection molding plastic products per month. Our main hot die forging equipment include: Hot die forging double friction press(1600T, 1000T, 630T, 400T), air hammer, 200 ton punching machine, sand rolling machine, round steel cut machine, sawing machine, coal gas furnace, 5 web-strip hot resistance furnace. The main test machine include: Sclerometer, hydraulic universal testing machine, magnaflux, carbon and sulfur analyzer, metallographic analysis instrument, spectrum meter. Also our company passed the ISO9001 & ISO14001. For more details, please don't hesitate to visit our B2B platform of HTTP: //nbnewsunny888. Made-in-China. com
