Product Description
Type XDB
Power(W) 300W-1200W
Output Voltage(KV), 40, 50, 60, 70, 80, 90, 100, 125, 130, 150,

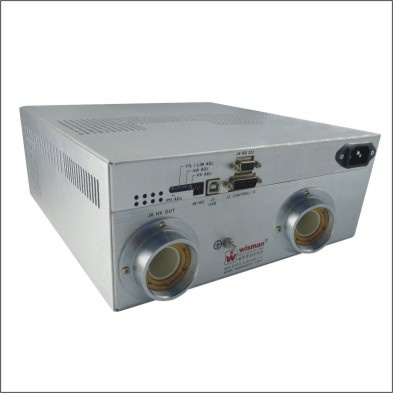

Wisman'snew XDB Series of bipolar X-ray generatormodules are designed for OEM applications up to 140kV(± 70kV) at 1200 watts. Its universal input, small package size and choice of three standard digital interfaces simplifies integrating the XDB into your X-ray analysis system. DSP based emission control circuitry provides excellent regulation of emission current, along with outstanding stability performance.
TYPICAL APPLICATIONS
Plastics Sorting\Crystal Inspection\Plating Measurement\Thickness Gauging\Food Inspection\Mineral Analysis X-ray Fluorescence\X-ray Diffraction
OPTIONS
USB USB2.0 interface
RS422 RS-422 interface
SPECIFICATIONS
Input Voltage:
Power factor corrected input
90-264VAC, 47-63 Hertz, for 300 watt units
180-264VAC, 47-63 Hertz for 600 and 1200 watt units
Output Voltage:
6 models: 40kV, 60kV, 80kV, 100kV, 120kV and 140kV
Output Polarity:
± Bipolar output, filament referenced to negative output
Power:
3 power ranges available-300 watts, 600 watts and 1200watts.
Other power levels available on special order.
Output Voltage Regulation:
≤ 0.01% of rated output voltage over specified input voltage range.
≤ 0.01% of rated output voltage for a full load change.
Emission Current Regulation:
≤ 0.01% of rated output current over specified input voltage range
≤ 0.01% of rated output current for a change from 30% to 100% of rated output voltage
Ripple: 1%RMS at >20 kHz, 0.1%RMS below 20 kHz
Stability:
25ppm/hr after a 2 hour warm up
Temperature Coefficient:
≤ 50ppm per degree C
Environmental:
Temperature Range:
Humidity: 20% to 85% RH, non-condensing.
Filament Configuration:
Closed loop emission control regulates filament setting to provide desired X-ray tube emission current.
Floating Filament (AC output referenced to negative output voltage).
Output:
0-5 AMPS at a compliance of 10 volts, maximum.
The filament loop is disabled when the kV output is less than 30% of full scale output to protect the X-ray tube.
Other filament levels available on special order.
Local Interface:
Potentio meters are provided to adjust filament limit and preheat levels.
Remote Interface:
RS-232 are standard.
All digital monitors have an accuracy specification of 2%
Control Software: A Windows graphical user interface example is provided.
High Voltage Enable:
A hardware based, dry contact closurewill enable the power supply into the high voltage on mode
Monitor Signals:
Voltage and current monitor signals arescaled 0-10Vdcequals 0-100%of fullscale, accuracy is 1%
Cooling: Forced air
Dimensions: L: 304mm, W: 304mm, D: 120mm;
