Collar Wheel and Ball Pto Shaft with Clutch FF4

Name: Collar Wheel and Ball Pto Shaft with Clutch FF4
Brand: china-castingforging.com
SKU: 765719335
Availability: InStock
Rating: 4.9 (130 reviews)

Price:	US $ 80/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

STIC TRADING CO., LIMITED

Showroom Product Company Profile

Prod Model:	05.13B+FF4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Profile:	Triangle/Lemon
Color:	Black/Yellow/Red
Trctory Output Rpm:	540rpm/1000rpm

Product Description

1. Introduction

Size 1-3 PTO Shaft Used on small timber winches and centrifugal fertilizer spreaders. Rated for 16 hp at 540 rpm; 25 hp at 1000 rpm.
Size 4-5 PTO Shaft Used on medium tractor winches, small wood chippers, small rotor tillers and some hay rakes. Rated for 35 hp at 540 rpm; 55 hp at 1000 rpm.
Size 6 PTO Shaft Used on large logging winches, medium wood chippers, mowers, snow blowers, and rotor tillers. Rated for 62 hp at 540 rpm; 98 hp at 1000 rpm.
Size 7-SLC PTO Shaft 75 - 115 hp
Size 8 PTO Shaft Used on forestry mowers and large snow blowers. Rated for 91 hp at 540 rpm; 145 hp at 1000 rpm.

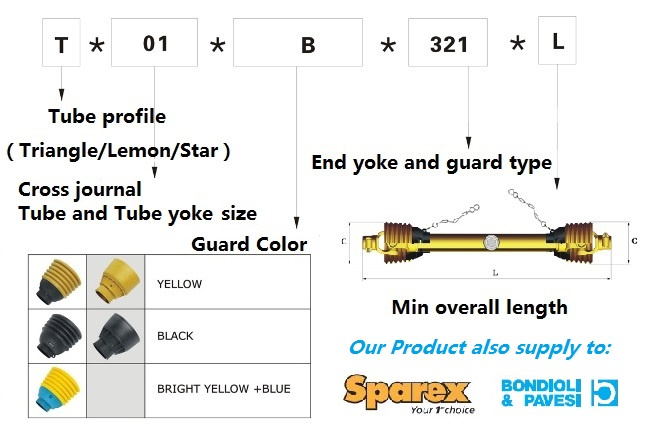

2. Product Code

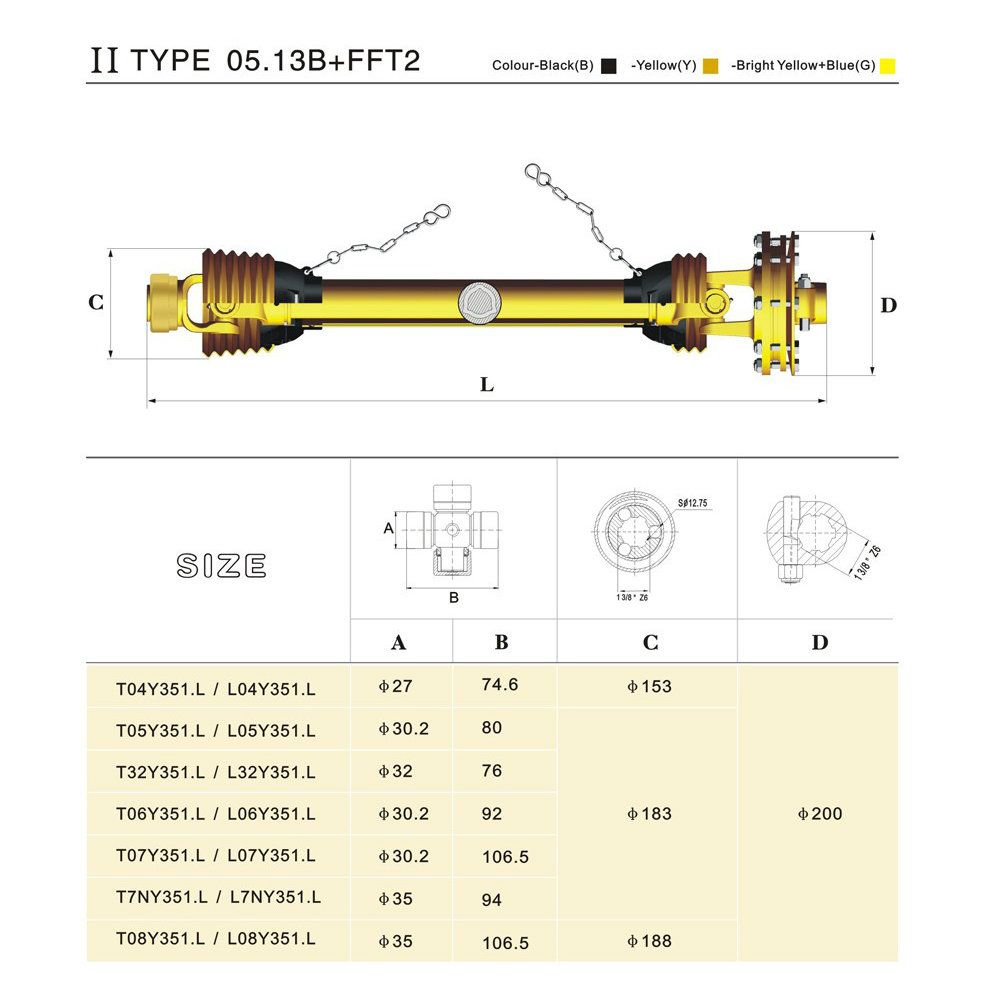

3. Product Information

4. Application Guide

Complete Drivelines*

Series	Length (L)	Tractor	Implement	Part#	Typical Use
1	27"	1 3/8" 6 spline	1 3/8" 6 spline	CS12111	Fertilizer Spreader
1	35"	1 3/8" 6 spline	1 3/8" 6 spline	CS12911	Fertilizer Spreader
2	47"	1 3/8" 6 spline	1 3/8" 6 spline	CS23911	Finishing Mower
4	33"	1 3/8" 6 spline	1 3/8" 6 spline	CS42511	Small Disc Mower
4	48"	1 3/8" 6 spline	1 3/8" 6 spline	CS44111	5'-6' Rotary Cutter
5	46"	1 3/8" 6 spline	1 3/8" 6 spline	CS53811	Rotary Cutter
5	33"	1 3/8" 6 spline	1 3/8" 6 spline	CS52511	Disc Mower
6	37"	1 3/8" 6 spline	1 3/8" 6 spline	CS63911	Finishing Mower
6	57"	1 3/8" 6 spline	1 3/8" 6 spline	CS65011	All Purpose
8	57"	1 3/8" 6 spline	1 3/8" 6 spline	CS84811	All Purpose

Complete Drivelines with one Round Bore Yoke*

Series	Length (L)	Tractor	Implement	Part#	Typical Use
2	51"	1 3/8" 6 spline	1 3/8" RB 1/2" PH	CS24314	Pull Type Rotary Mower
2	52"	1 3/8" 6 spline	1 1/4" RB 3/8" PH	CS34414	Post Hole Digger
4	36"	1 3/8" 6 spline	1 3/8" RB 1/2" PH	CS42814	5' Lift Rotary Mower
4	48"	1 3/8" 6 spline	1 3/8" RB 1/2" PH	CS44114	5'-6' Rotary Mower
4	53"	1 3/8" 6 spline	1 1/4" RB 3/8" PH	CS44514	H.D. Post Hole Digger
5	42"	1 3/8" 6 spline	1 3/8" RB 1/2" PH	CS53414	6' Lift Rotary Mower
6	52"	1 3/8" 6 spline	1 3/8" RB 1/2" PH	CS64414	7' Fift Rotary Mower

Complete Drivelines with Slip Clutch*

Series	Length (L)	Tractor	Implement	Part#	Typical Use
4	33"	1 3/8" 6 spline	1 3/8" 6 sp FF1 CL	CS42516	Rotary Tiller
4	45"	1 3/8" 6 spline	1 3/8" 6 sp FF1 CL	CS43516	Rotary Tiller
5	45"	1 3/8" 6 spline	1 3/8" 21 sp FF1 CL	CS54816	5'-7' Rotary Mower
5	58"	1 3/8" 6 spline	1 3/8" RB w/FF1 CL	CS53516RB	5'-7' Rotary Mower
5	45"	1 3/8" 6 spline	1 3/8" 6 sp FF1 CL	CS53516	5'-7' Rotary Mower
6	54"	1 3/8" 6 spline	1 3/8" 6 sp FF2 CL	CS64416	7'-8' Rotary Mower
6	58"	1 3/8" 6 spline	1 3/4" 20 sp FF2 CL	CS64816	7'-8' Rotary Mower

Complete Drivelines with Overrun Clutch*

Series	Length (L)	Tractor	Implement	Part#	Typical Use
5	44"	1 3/8" 6 spline	1 3/8" 6 sp OR CL	CS53517	Disc Mower w/Overrun Clutch
6	39"	1 3/8" 6 spline	1 3/8" 6 sp OR CL	CS62917	Disc Mower w/Overrun Clutch

Complete Drivelines with Round Bore and Keyway*

Series	Length (L)	Tractor	Implement	Part#	Typical Use
2	52"	1 3/8" 6 spline	1" RB w 1/4" KW	CS24414	Fertilizer Buggy
4	48"	1 3/8" 6 spline	1 1/2" RB w 3/8" KW	CS44014	Catfish Pond
5	48"	1 3/8" 6 spline	1 1/2" RB w 3/8" KW	CS54014	Catfish Pond
5	48"	1 3/8" 21 spline	1 1/2" RB w 3/8" KW	CS54024	Catfish Pond
6	48"	1 3/8" 6 spline	1 1/2" RB w 3/8" KW	CS64114	Catfish Pond
6	48"	1 3/8" 21 spline	1 1/2" RB w 3/8" KW	CS64124	Catfish Pond

Complete Driveline with Radial Pin Clutch*

Series	Length (L)	Tractor	Implement	Part#	Typical Use
4	54"	1 3/8" 6 spline	1 3/8" 6 sp w RP3 CL	CS44315	Rotor Hay Tedder
4	66"	1 3/8" 6 spline	1 3/8" 6 sp w RP3 CL	CS45515	Rotor Hay Tedder

Complete Drivelines with Shear Pin Clutch*

Series	Length (L)	Tractor	Implement	Part#	Typical Use
4	42"	1 3/8" 6 spline	1 3/8" 6 sp w/SP	CS43518	Snowblower
5	43"	1 3/8" 6 spline	1 3/8" 6 sp w/SP	CS53518	5'-7' Rotary Mower
6	55"	1 3/8" 6 spline	1 3/8" 6 sp w/SP	CS64818	Snowblower
8	56"	1 3/8" 6 spline	1 3/4" 20 sp w/SP	CS84818	Snowblower

* Complete shafts can be cut to length, the above driveline are genuine alternative drivelines and will not usually ship as LaMagdalena drivelines. Parts are available for all genuine alternative drivelines. Most items and parts can ship within 48 hours from suppliers with your credit card order.

General Purpose Drivelines

Series	Length (L)	Tractor	Implement	Part #
1	55"	1 3/8" 6 spline	1 3/8" 6 spline	BP112100101-A	General Purpose
2	55"	1 3/8" 6 spline	1 3/8" 6 spline	BP212100101-A	General Purpose
4	56"	1 3/8" 6 spline	1 3/8" 6 spline	BP412100101-A	General Purpose
5	56"	1 3/8" 6 spline	1 3/8" 6 spline	BP512100101-A	General Purpose
6	57"	1 3/8" 6 spline	1 3/8" 6 spline	BP612100101-A	General Purpose
6	57"	1 3/8" 21 spline	1 3/8" 21 spline	BP612100202	General Purpose
8	57"	1 3/8" 6 spline	1 3/8" 6 spline	BP812100101-A	General Purpose
8	57"	1 3/8" 21 spline	1 3/8" 21 spline	BP812100202-A	General Purpose
8	57"	1 3/4" 20 spline	1 3/4" 20 spline	BP812100303	General Purpose

The following chart gives you the industry standard for PTO driveline horsepower ratings. Please keep in mind these are rated horsepower at the PTO, not engine horsepower. Many times the difference between engine horsepower and PTO horsepower can vary as much as 10%. These values give the maximum recommended horsepower that can be transferred through the driveline from the tractor to the implement.

Series	Rating @ 540rpm	Rating @ 1000rpm
1	16	24
2	21	32
3	30	47
4	35	54
5	47	72
6	62	98
7	74	114
8	91	145
9	141	225

If you are not sure how far you can safely extend a driveline, the following chart give the recommended maximum extension available on each series of shaft with a minimum collapsed length listed. In most cases, it is recommended that the driveline does not extend 1/2 of its' collapsed length. This means the driveline tubes should overlap at least 1/2 for safe operation at all speeds.

	Minimum Collapsed Length (L)
	28"	31"	35"	39"	43"	47"	51"	55"	59"
Series	Maximum Extended Length (L)
1	35"	41"	47"	53"	59"	64"	71"	77"	83"
2	35"	41"	47"	53"	59"	64"	71"	77"	83"
3	35"	41"	47"	53"	59"	64"	71"	77"	83"
4	35"	41"	47"	53"	59"	64"	71"	77"	83"
5	34"	40"	46"	52"	58"	63"	70"	76"	82"
6	34"	40"	46"	52"	58"	63"	70"	76"	82"
7	34"	40"	46"	52"	58"	63"	70"	76"	82"
8	34"	40"	46"	52"	58"	63"	70"	76"	82"
9	33"	39"	45"	51"	57"	62"	69"	75"	81"
