| Prod Model: |
AF-R360 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Color Steel Self-Lock Roof Sheet Roll Forming Mach |
| Machine Color: |
as Require |
| Machine Weight: |
3tons |
| Machine Size: |
6.5m*1.4m*1.4m |
| Control System: |
PLC |
| Cutting Type: |
Hydraulic |
| Driven Type: |
Chain |
| Usage: |
Roof and Wall |
| Size Of Container: |
40gp |
| Life Long: |
10year |
| Forging Forming Method: |
Mold Forging |
Product Description

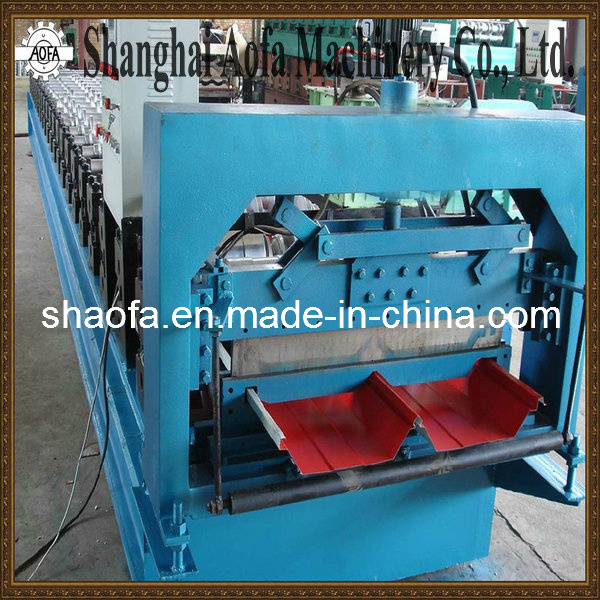

Color steel self-lock roof sheet roll forming machine
Other machine we manufacture
Cold roll forming mahcine, color steel roll forming machine, roof and wall panel machine, decking floor roll forming machine, floor decing forming mahcine, stud and track roll forming machine, z and c purlin machine, highway guardrail roll forming machine, cable tray machine, and so on.
Working flow:
Decoiler----- feeding ------roll forming ------ cutting----output table
Machine components:
De-coiler------------------------------------------1set
Forming machine-------------------------------1set
Cutting device -----------------------------------1set
PLC control box -------------------------------- 1set
Hydraulic pump station------------------------1set
Production support table----------------------1set
Terms
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 18monthes free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
|
Technical description |
Decoiler
|
Coil inner diameter:500-600mm
Max coil width:1000-1250mm
Carrying capacity:5000kg
|
Forming Device
|
Shaft material: high grade No.45 steel after treatment
Roller diameter:70mm
Roller Material:45# steel polished and coated with chrome HRC55-60°
Roller steps:14groups
Chains transport:1inch chains transmission
Forming Speed:10-12m/min
Main motor power:380V 3PHASE 50HZ
Power:4kw
Mid-plate thickness:14mm
Frame.300 "H"steel
Plating hard chrome,then forming.
|
Cutting Device
|
Hydraulic shearing
Hydraulic power:3kw
Blade material,Cr12 steel with quenched treated 60-62°C
Cutting system,Adopt hydraulic drive,automatic cutting after forming,no distorting and wasting,high level safety factor.
|
Controlling System
|
Type: PLC Frequency Control System with touch screen
PLC Brand: Japan Panasonic
Encoder Brand: Omron
Length Error: ±2mm
|
Output table
|
It is simple and used to load finished product.
Length:6m
|
