| Prod Model: |
Insulator Fiberglass Rod |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
L&R or as Per Clients' Requirements |
| Size: |
Any Size Can Be Ordered |
| OEM&ODM: |
Accept |
| Impulse Voltage: |
≥95kv/Cm |
| Application: |
Insulators |
| Material: |
Fiberglass |
| Thermal Rating: |
250 250 |
| Maximum Voltage: |
>100KV |
| Type: |
Insulator Rod |
Product Description
Product brief:

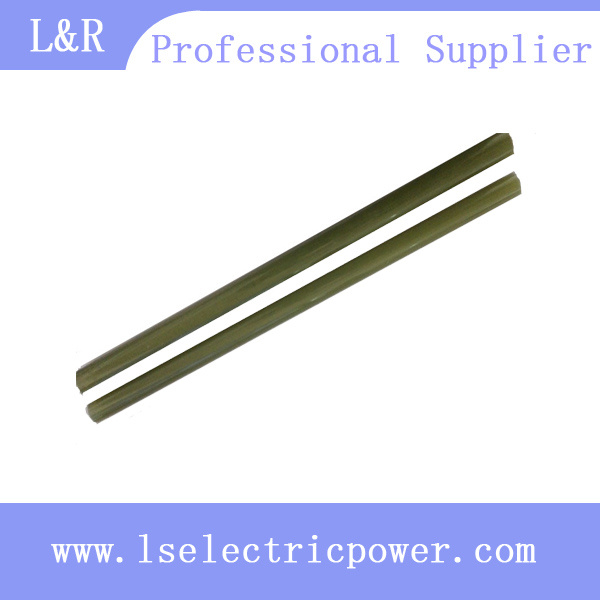

The expoxy fiberglass gulding and pulling rod is composed of untwisted and alkall-free fiberglass yarn impregnated with epoxy adhesive after vacuum continuous winging and solidfication.
The products have good performance and machanical strength.
Along with high-temperature and stress corrosion resiistance performance.
We can according to different requirement, such as slotted, turning, wire picking.
| Description | Unitg | Date |
| density(20±2ºC) | g/cm² | ≥2.0 |
| water absorption | % | ≤0.05 |
| tensile strength | Mpa | ≥1690 |
| bend strength | Mpa | ≥965 |
| absorb test | min | ≥50 |
| water diffusion test(1%NaC1 Boiled 100h, 12kv, 1min) | uA | ≤50 |
| layl shear strength | Mpa | ≥50 |
| power frequency puncture voltage | KV/cm | ≥50 |
| impulse voltage | KV/cm | ≥95 |
| hot bending strength | Mpa/150ºC | ≥300 |
| stress corrosion(1mol/1HNO3,316Mpa stress) | h | >200 |
Type
| Φ12 | Φ16 | Φ16.5 | Φ16.8 | Φ17.48 |
|
| Φ18 | Φ20 | Φ22 | Φ24 | Φ25 | Φ25 |
| Φ28 | Φ30 | Φ32 | Φ34 | Φ35 | Φ35 |
| Φ40 | Φ45 | Φ46 | Φ50 | Φ53 | Φ53 |
| Φ63 | Φ70 | Φ76 | Φ80 | Φ90 | Φ90 |
