| Prod Model: |
JYP-3PH |
| Markets: |
North America,Southeast Asia,Africa,Mid East |
Product Description

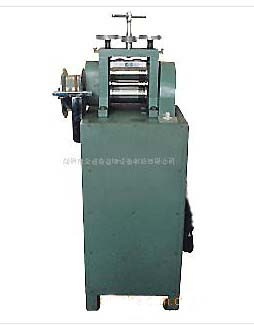

Compressing machine
Brand Name: Digao Place of Origin: Guangdong China (Mainland) Model Number: CTYP-840
Jewelry Tools & Equipments Type: Compressing ma...
Packaging & Delivery
Packaging Detail: L900 X W600 X H1200mm 1set/one wooden case
Delivery Detail within two weeks
Specifications
This machine can compress tube to sheet and wire.
Mininum wire diameter will be 1.0mm
Compression Machine JYP-3pH is a standard form of machine designed and made by our company. Having been improved for several times in the mechanical structure, it has been equipped with elevation compression of worm-gear and hob. Using the Oldham coupling as its transmission mechanism, the machine would not make noises or gnaw teeth, which resulting from elevating when it is working, such device has substituted for the imperfect gear elevation and transmission that used to take by the counterparts.
Unique Side: The machine has a speed reduction unit. For the lubricating system, it uses oil pump to fill oil by automatic circulation, so that the machine would not cause any damage resulting from lack of oil.
Advantage: The double-speed damageable gearshift of the main engine can be selected freely while compressing. In addition, we import the main compressing shaft from abroad, of which the hardness reaches over HRC630, and the surfaces have been grinded precisely through the specula dim-light treatment. Surfaces of gold, platinum gold, K gold, silver and copper etc., which are compressed by the machine are brilliant and smooth, without any wave or twist. Therefore, the machine is welcomed in the jewelry trade and among our clients. We believe that our machine would add more glories to jewelry trade.
Dimensions: L900 × W600 × H1200(mm)
Weight: 720Kg
Noise: ≤ 40 decibel
Minimum thickness of compression line: 0.08mm
Diameter of compression wheel: 1 mm
Line connecting: Three-phase with four-line system
Power: Max. / min.: 4kW/ 3.5kW
Max. / min. Speed of main engine: 1440/960 circles/minute
Working system of main engine: S1 system
Working frequency: 50Hz (plus or minus 5%)
Ambient relative humidity: <80%
Shenzhen Jindigao Automation Co., Ltd., a company that specialized in peoducing jewelry processing eqyupments locates ines in they are namely R&D, Production, Marketing and After- sale service. On the basis of our experiences and technology, we have developed some innovative products, which are as follows: Ckeaner, electroplating equipment, welding machine, burnish, polishing, vacuum, dryer, melt metal facility and so on. Automatic chain/ corner forming machine, bracelet forming machine etc. Are our special recommendations.
Currently the company focuses mostly on the domestic market and also try to promote our international sales stepwise. Now we have nationwide customers, most of which are in Shenzhen, Panyu, Zhejiang, Shandong, Singapare, Australi, Thailand, etc. We have cooperative partship with many top companies in jewelry industry home and abroad.
Through best quality and after-service, Digao will succeed in the future with its costmers.
