| Prod Model: |
MQ860 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Price: |
Manufactury Price |
| Delivery Time: |
Generally 7 Workdays or According to Quantity |
| Material: |
Steel |
| Usage: |
Home Appliance |
| Load Type: |
Compression |
| Shape: |
Coil |
Product Description

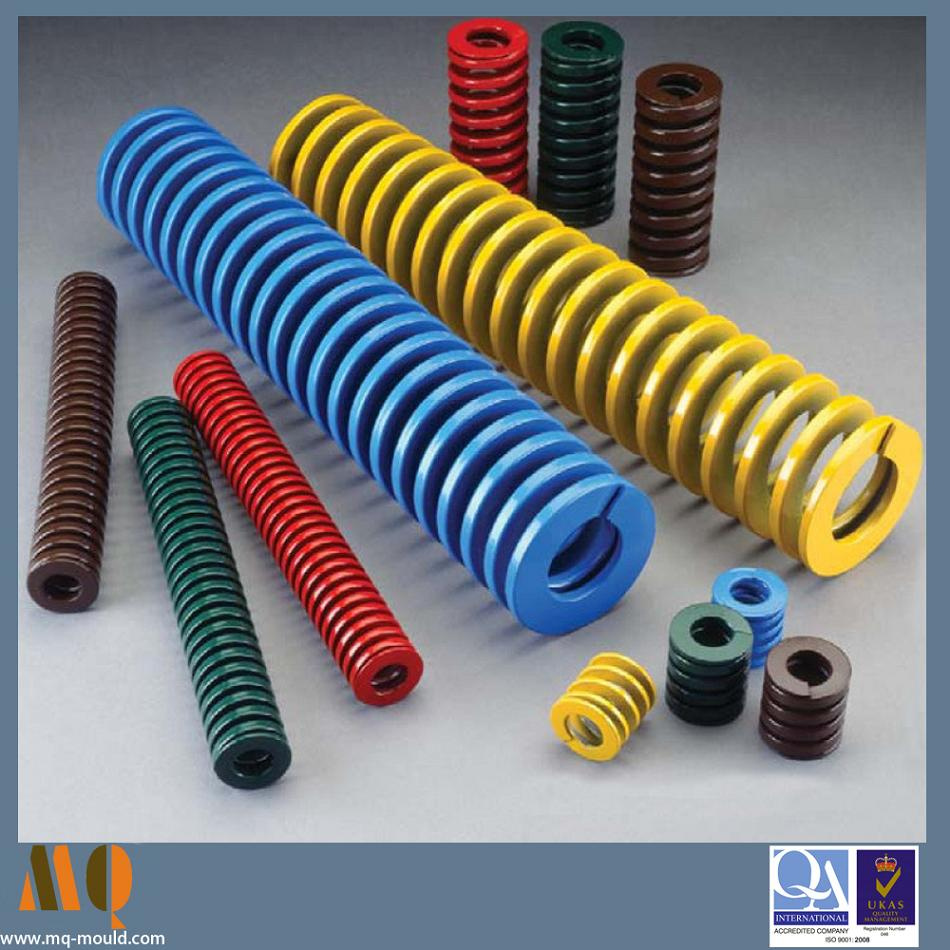

Compression Spring Manufacturers/Metal Stamping Mold SpringsDie spring includes: Japanese standard, German standard mold die springs spring, spring, spring spring polyurethane, usually refers to the rectangular die spring.
Die springs are widely used in the stamping die, metal die-casting mold, plastic mold and other elastic motion precision machinery and equipment, automotive and other fields.
Die spring material generally used chromium alloy steel. Chromium alloy spring steel has the characteristics of high temperature resistance, high rigidity, long service life.
Rectangular die spring has the advantages of small volume, good elasticity, high rigidity, high precision, material is rectangular, surface color coating (plating) to distinguish different loading, the characteristics of beautiful appearance and so.
Compressing Proportion:| Lightest Load Max | 58% |
| Light Load | 48% |
| Medium Load | 38% |
| Heavy Load | 28% |
| Ultra Heavy Load | 24% |
| Light Load | 60% |
Permitted size tolerance :| Outer-Dia | Inner-Dia | Free
55mm under
| Length
60mm under | Load | Coil-Direction | Tilt |
+0 mm
-0.1mm | +0.2mm
-0 mm | ±0.5mm | ±1% | ±10% | Right | 60mm under<2° |
Performance and Times:Times
Types | 1 million(Free length) | 0.5million(Free length) | 0.3million(Free length) | Max bend |
TF,TR
Lightest load | 40% | 45% | 50% | 58% |
| Light load | 32% | 36% | 40% | 48% |
| Medium load | 25% | 28% | 32% | 38% |
| Heavy load | 19% | 21% | 24% | 28% |
TB
Ultra heavy load | 16% | 21% | 20% | 24% |
Compression Spring Manufacturers/Metal Stamping Mold Springs| Material | 60Si2MnA,60Si2CrA,60Si2CrV,etc |
| Wire diameter | 5mm ~80mm |
| Free hight | 10mm ~1188mm |
| hardness | 42HRC~52HRC |
| Direction of coils | Right, left |
| Total coils | Deted By Drawing / Data. |

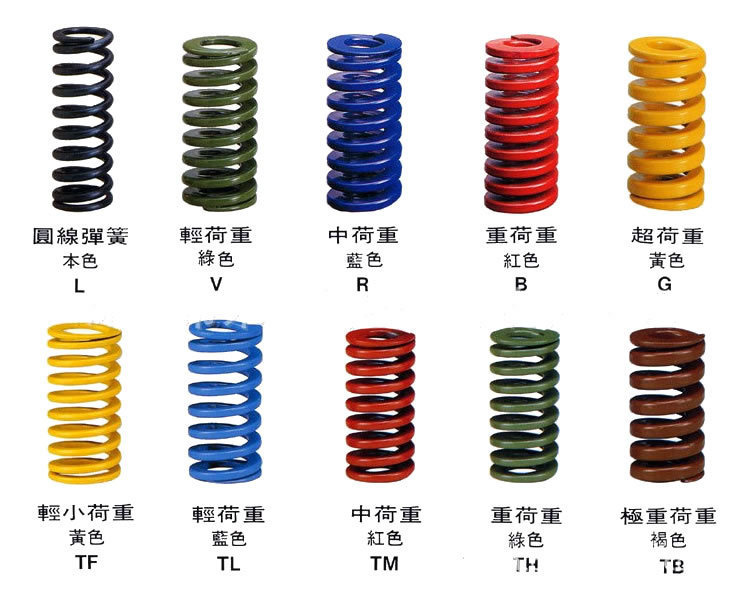

| Load Bearing Capacity | Yellow( Lightest Load ) Blue(Light Load ) Red(Medium Load )
Green(Heavy Load) Brown(EX-Heavy Load) |
| Application | Excavator, digger machine, car, train, shakeout machine,Steel Plants,Railway Bogies & Wagons,,etc. |
| Painting and Coating | Amino paint,Synthetic Enamel Paint, Powder Coating, Phosphate, Zinc Coating etc. |
| Color | yellow blue red green Brown |
| Production method | Hot formed, cold formed |
| Note | The materials and specifications can be decided by the customers. |
