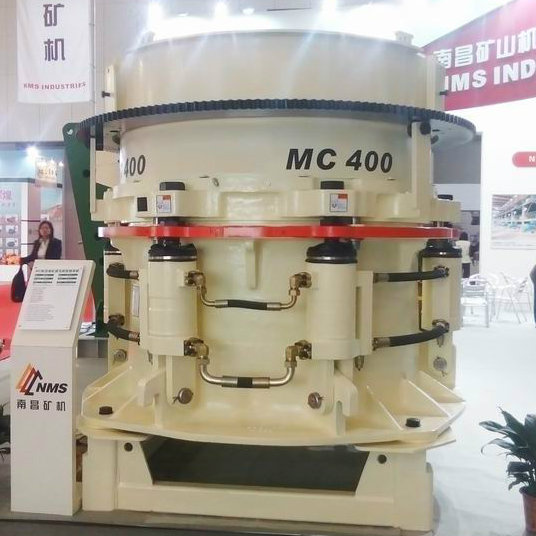

Cone Crusher MC Series
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,DAP |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
MC200, MC300, MC400, MC500, MC800, etc. |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Cone Crusher |
| Application: |
Stone Industry |
| Drive: |
Electric |
| Crushing Style: |
Extruding |
| Compressive Strength (',For Crushing): |
100-250MPA |
| Crushing Degree: |
Intermediate or Fine Crusher |
| Color: |
As Required |
Product Description
MC series high-performance multi-cylinder cone crusher is a new type of high-performance cone crusher which is designed innovatively by USA. Nordman. The body is made of alloy cast steel integral pour, alloy forging axis, the rotating pendulum structure and etc. And it has many structural features with high-speed main shaft, big power, super strong, crowded full feeding, automatic computer control system, lining board can be changed fast, higher productivity and quality and low cost and failure rate.
MC series high-performance multi-cylinder cone crusher is widely used in metallurgical, construction, cement, building material industry and etc. It is suitable for all kinds of ores and rocks, such as iron ore, non-ferrous metal ore, granite, limestone, quartzite, sandstone, pebbles and so on.Machine And Assembly Weight| Weight | MC200 | MC300 | MC400 | MC500 | MC800 |
| Gross Weight (kg) | 11200 | 16500 | 23500 | 33600 | 64500 |
| BOWL ALSSEMBLY (kg) | 2700 | 3650 | 4850 | 7260 | 15350 |
| HEAD ASSEMBLY (kg) | 1260 | 2150 | 3260 | 5200 | 9480 |
| Motor Power(kw) | 132 | 250 | 315 | 400 | 600 |
| Speed(rpm) | 800-1250 | 750-1250 | 750-1100 | 750-1000 | 750-1000 |
Capacity (t/h) |
| Close Side Settings (mm) | 10 | 13 | 16 | 19 | 22 | 25 | 32 | 38 | 46 | 51 |
| MC200 | 93-125 | 125-155 | 145-185 | 155-195 | 165-205 | 175-225 | 195-240 | 215-255 |
|
|
| MC300 | 120-145 | 155-190 | 185-225 | 205-245 | 225-265 | 235-285 | 255-325 | 305-385 | 355-445 |
|
| MC400 | 145-185 | 190-235 | 230-285 | 260-325 | 280-350 | 300-375 | 330-435 | 365-495 | 415-565 | 470-635 |
| MC500 | 180-225 | 235-295 | 285-355 | 325-405 | 350-435 | 370-460 | 410-540 | 450-610 | 515-705 | 585-795 |
| MC800 | 265-340 | 330-430 | 390-510 | 440-550 | 480-610 | 500-735 | 550-810 | 610-955 | 695-1055 | 790-1200 |
| Various capacity at different discharge setting |
NMS, since 1965, is the most famous Chinese manufacture of crushing and screening equipment. During planning period, Chinese government introduced Germany technology to NMS. Therefore NMS is also the earliest manufacture of crushing and screening equipment.
NMS is the draftsman of National Standard of crushing and screening equipment here in China.
NMS has many patens in terms of crushing and screening equipment.
NMS covers the top level market here in China.
NMS works with all the largest mining groups in China, such as China Aluminum, Sino Steel, China Non-ferrous Metal Mining Group Co. Ltd, China Gold, Baosteel, Jiangxi Copper Group, Minmetals, etc.
NMS passed the 3rd partner assessment by JACOBS, D&B, B. V. And S. K. M. With these audit, NMS also works with top 10 world mining and cement groups. In addition to the supply of the crushing and screening equipment, we also offer you replacement components of the other brand cone crusher and gyratory crushers.
