| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Western Europe |
| Package: |
Plywood Box |
| Usage: |
Construction Mahcinery |
| Material: |
Grey Iron |
| Weight: |
5kg |
| Casting Metal: |
Cast Iron |
| Casting Form Material: |
Metal |
| Casting Method: |
Sand Casting |
Product Description

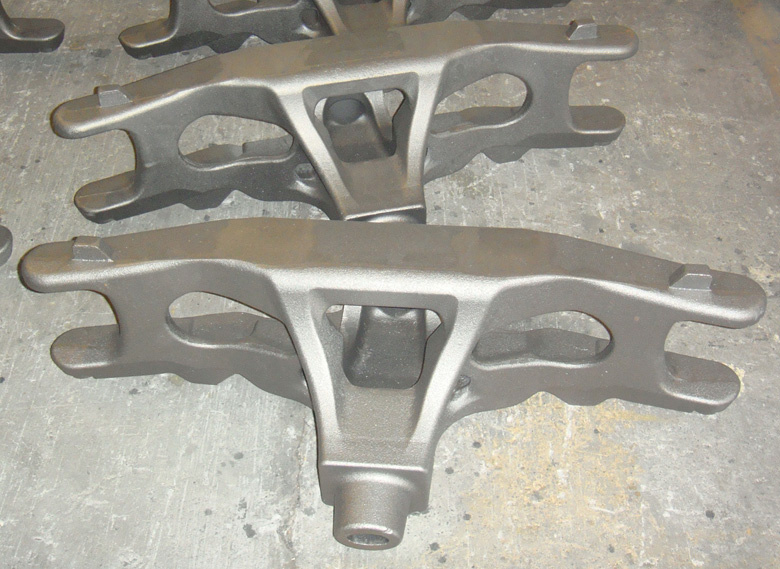

Other name: Connecting pieces, mechanical parts
Manufacturing process: Sand casting
Depending on outstanding casting and machining process, Shantin can provide also in the following specification:
- Manufacturing Process: Sand casting with resin sand core boxes
- Machining: Turning, Milling, Drilling, Grinding, Threading/Machinery
- Finishing: Grid sand blasting, Cutting and Polishing, Cleaning
- Inspection:
A) Foundry and Machine shop in-house, CMM available
B) Third party inspection available upon request
C) 3.1B material certificate and dimensional inspection.
- Packing:
A) International standard wooden box with plywood pallet
B) As per customers' requirements, VCI bags for cast iron parts
The following detailed information for your reference.
The simple list of Shantin's products range:
- Material: Bronze, cast iron, stainless steel, carbon steel, alloy steel etc.
- Weight Range: Depending on casting process from 0.5kg up to 5000kg.
- Dimension Range: Depending on shape and weight, max1500*1500*1500mm.
- Application: Pump & valve, Shipbuilding industry, Heavy machinery, Engineering machinery, Sewage Treatment etc.
- Flow Liquid: Water, oil or air
- Weight Range: Depending on casting process from 0.5kg up to 500kg.
- Dimensions: Depending on shape and weight, max1500*1500*1500mm.
- Quality Certification: ISO 9001: 2000.
- OEM service available.
Only sending us the drawings or your special requirement, you can expect the perfect casting parts or components from Shanghai Shantin during the shortest lead time.
T: 021 616 206 85, 021 616 206 82
F: 021 616 205 87
Castings in bronze/brass/copper
Manufacturing processes: |
Sand casting, centrifugal casting |
Typical materials: |
ASTM |
C95800 |
C83600 |
C87600 |
C86300 |
C95200 |
EN |
CuAl10Fe5Ni5-C |
CuSn5Zn5Pb5-C |
CuZn5Si4Pb-C |
CuZn25Al5Mn4Fe3-C |
CuAl10Fe2-C |
DIN |
G-CuAl10Ni |
G-CuSn5ZnPb |
|
G-CuZn25Al5 |
G-CuAl10 Fe |
Material No. |
2.0975 |
2.1096 |
|
2.0598 |
2.0940 |
Other materials are also available based on the material specification you provided. |
Weight range: |
Depending on casting process from 0.5kg up to 500kg |
Dimensions: |
Depending on shape and weight, max 1500×1500×1500mm |
Typical products: |
Impeller, Pump Case, Cover, Wear Ring, Sleeve, Flange, Valve Body & Disc |
|
Castings in cast iron
Manufacturing processes: |
sand casting |
Available materials: |
Cast iron -- various grades
Ductile iron – various grades
High chrome iron
Ni-resistant and Ni-hard iron
White iron |
Weight range: |
Depending on casting process from 0.5kg up to 5 tons |
Dimensions: |
Depending on shape and weight, max 3000mm*3000mm*3000 |
Typical products: |
Impeller, Pump case & cover, Bearing house & brackets, Valve body, Impeller, Valve slide, counterweight, automotive components, Hub, etc^ |
|
Castings in Stainless Steel:
Manufacturing processes: |
investment casting, sand casting |
Typical materials: |
ASTM |
CF8 |
CF8M |
CF3 |
CF3M |
EN |
1.4301 |
1.4401 |
1.4306 |
1.4404 |
DIN |
X5CrNi1810 |
X5CrNiMo17122 |
X2CrNi1911 |
X2CrNiMo17132 |
|
|
|
|
|
ASTM |
CF6NM |
CA15 |
CA40 |
|
EN |
DIN EN10213 |
DIN EN17445 |
DIN EN17445 |
|
DIN |
G-X4CrNi13-4 |
G-X8CrNi13 |
G-X20Cr14 |
|
Other materials are also available based on the material specification you provided. |
Weight range: |
Depending on casting process
Investment casting from 01.kg up to 150kg
Sand casting from 5kg up to 500kg |
Dimensions: |
Depending on shape and weight, max1500×1500×1500mm |
Typical products: |
Impeller, Pump case & cover, Wear Ring, Flange, Nut, Bush, Bearing Hold, Piston, Valve Body & Disc, etc^ |
|
Castings in Carbon steel and Alloy steel
Manufacturing processes: |
investment casting, sand casting |
Typical materials: |
Carbon steel – various grades
Alloy steel – various grades |
Weight range: |
Depending on casting process
Sand casting from 5kg up to 500kg
Investment casting from 0.5kg up to 150kg |
Dimensions: |
Depending on shape and weight, max 1500×1500×1500mm |
Typical products: |
Pump case, Bearing house & brackets, Motor stool, Drive wheel, Tooth wheel |
|
SHANTIN is a professional metal component manufacturer with headquarters located in Shanghai and manufacturing facilities located in Quanjiao, Anhui province. We have built up a strong reputation in providing cost-effective and quality-reliable casting solutions for our clients from all over the world since founded in 2003, and successfully developed thousands of castings in a variety of applications with materials according to different standards. We take pride in being able to supply top quality products to our discerning customers who are with great foresight.
Our main products are metal components, like casting, forging, machining and fabrication components which are used by customers in the pump and valve industry, construction equipment industry, automotive industry, oil and gas industry, marine and off-shore industry and other related fields.
We are an engineering-oriented company with strong capability in developing metal components together with our customers' R&D teams. Our talented staff members, advanced facilities and modern technology guarantee that you can get the best solutions in both cost and quality.
Our core competitive points are:
Great knowledge and experience in metal components
Overall competitive manufacturing cost
Good understanding towards customers' specific requirements
Tailor-making services for customers
As a qualified supplier, SHANTIN will go to great length to provide customers with satisfied service, on-time delivery, specific contact for relative process, and staying at disposal for any requirements. What's more is we're learning and investing the crucial cognizance - "safety" into our production flow, and making every of our people bear in mind.
We, SHANTIN, is on the way to keep pace with first-class supplier all over the world, trying our best to respond actively to an appeal of CIP culture that customers introduced in.
