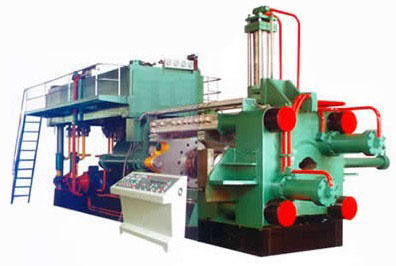

Constant Speed Extrusion Press

Name: Constant Speed Extrusion Press
Brand: china-castingforging.com
SKU: 679529145
Availability: InStock
Rating: 5 (112 reviews)

Price:	US $ 200000-600000/Set
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Guangzhou DT Exp. & Imp. Co., Ltd.

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forging Forming Method:	Mold Forging

Product Description

Constant Speed Extrusion press for aluminum profile, copper bar and pipe, brass bar and pipe

Item	Classification	Unit	Parametervalue
	A		TXJ-300	TXJ-500	TXJ-650	TXJ-880	TXJ-1000	TXJ-1350	TXJ-1650
	B		TXJ-300	TXJ-500	TXJ-650	TXJ2-880	TXJ2-1000	TXJ2-1350	TXJ2-1650
Highestextrudigpressure		KN	3000	5000	6500	8800	10000	13500	16500
Pressureofoperationsystem		M pa	21	21	21	21	21	21	21
Returnforce		KN	180	380	570	570	570	570	820
Perforationstroke		mm				500	520	550	650
Extrudingstroke		mm	610	860	1050	1150	1200	1400	1600
Diameterofprincipalplungerpiston		mm	Φ 410	Φ 520	Φ 600	Φ 720	Φ 760	Φ 860	Φ 960
Extrudingspeed	A	mm/s	0.3~35	0.3~35	0.3~40	0.3~40	0.3~40	0.3~40	0.3~40
Extrudingspeed	B	mm/s	0.3~35	0.3~35	0.3~40	0.3~50	0.3~50	0.3~50	0.3~50
Ingotvesseldimensions		mm	Φ 65~Φ 75× 300	Φ 75~Φ 95× 380	Φ 85~Φ 115× 420	Φ 95~Φ 125× 500	Φ 105~Φ 145× 520	Φ 135~Φ 165× 550	Φ 155~Φ 205× 650
Piercingforce		KN				1200	1500	2000	2500
Fastenstrength		KN	240	380	450	520	520	850	1000
Patternstrenghth		KN	300	280	600	600	760	1100	1400
Shearingforce		KN	120	140	230	Flyingshear	Flyingshear	Flyingshear	Flyingshear
M otorpower	A	KW	55× 2	75× 2+55	75× 3+7.5	132+75× 2+37+7.5	132+75× 3+7.5	132× 2+75× 2+7.5	132× 3+75+55+7.5
M otorpower	B	KW	55× 2	75× 2+55	75× 3+7.5	132× 2+75+37+7.5	132× 2+75× 2+7.5	132× 3+75+55+7.5	132× 4+75+55+7.5
Heatingpower		KW	15	18	24	24	30	30	45
Outer dimensions(length× width× height)	A	M	4.5× 1.9× 1.9	6.5× 2× 2.6	7.5× 3.3× 3.4	9.5× 3× 3.5	9.7× 3.2× 3.7	11× 3.5× 4.2	12.5× 4.2× 4.7
Outer dimensions(length× width× height)	B	M	4.5× 1.9× 1.9	6.5× 2× 2.6	7.5× 3.3× 3.4	10.8× 3× 3.5	11× 3.2× 3.7	12.2× 3.5× 4.2	13.8× 4.2× 4.7
Centralheightofdischarginghole		mm	690	810	1000	1070	1070	1190	1450
Weight	A	Kg	12000	17000	29000	45000	52000	56000	105000
Weight	B	Kg	12000	17000	29000	52000	60000	68000	116000
Noter: Supplyanddemandofnon-standardextrusionmachineshallbeagrreedbysuppliersandbuyers; Aisparofsingglemotor, Aisparameterofdoublemotor.

Item	Classificati on	Unit	Parametervalue
	A		LXJ-500	LXJ-650	LXJ-880	LXJ-1000	LXJ-1350	LXJ-1650	LXJ-2000	LXJ-2500
	B		LXJ-500	LXJ-650	LXJ2-880	LXJ2-1000	LXJ2-1350	LXJ2-1650	LXJ2-2000	LXJ2-2500
Highestextrudigpressure		KN	5000	6500	8800	10000	13500	16500	20000	25000
Pressureofoperationsystem		M pa	21	21	21	21	21	21	21	21
Returnforce		KN	380	380	570	340	570	820	820	1000
Perforationstroke		mm			500	550	650	750	800	900
Extrudingstroke		mm	860	1050	1150	1200	1400	1600	1700	1800
Diameterofprincipalplungerpiston		mm	Φ 520	Φ 600	Φ 720	Φ 760	Φ 860	Φ 960	Φ 1060	Φ 1180
Extrudingspeed	A	mm/ s	0.3~13	0.3~13	0.3~13	0.3~13	0.3~13	0.3~13	0.3~13	0.3~13
Extrudingspeed	B	mm/ s	0.3~13	0.3~13	0.3~17	0.3~17	0.3~17	0.3~17	0.3~17	0.3~17
Ingotvesseldimensions		mm	Φ 75~Φ 95× 4 00	Φ 85~Φ 95× 4 00	Φ 95~Φ 125× 5 50	Φ 115~Φ 145× 5 80	Φ 135~Φ 165× 6 80	Φ 155~Φ 205× 7 80	Φ 185~Φ 235× 8 20	Φ 205~Φ 285× 8 80
Piercingforce		KN			1200	1500	2000	2500	2500	3000
Fastenstrength		KN	380	450	520	520	850	1000	1600	2000
Patternstrenghth		KN	280	600	600	760	1100	1400	1400	1600
Shearingforce		KN	180	230	260	260	300	470	470	1000
M otorpower	A	KW	55	55+37	55× 2	55× 2+37	55× 3	75× 2+55	75× 3	75× 3+55
M otorpower	B	KW	55	55+37	55× 3	55× 3	55× 4	75× 2+55× 2	75× 4+5	75× 5
Heatingpower		KW	18	24	24	30	30	45	45	65
Outer dimensions(length× width× hei ght)	A	M	45.6× 2.7× 2.6	6.3× 3.2× 3.0	8.7× 3.5× 3.2	9.3× 3.5× 3.2	10× 3.5× 3.6	11.2× 4.2× 4.2	12× 4.2× 4.7	12.5× 4.3× 4.7
Outer dimensions(length× width× hei ght)	B	M	45.6× 2.7× 2.6	6.3× 3.2× 3.0	10× 3.5× 3.2	11× 3.5× 3.2	11.5× 3.5× 3.6	12× 4.2× 4.2	13× 4.2× 4.7	14× 4.3× 4.7
Centralheightofdischarginghole		mm	810	1000	1020	1080	1290	1335	1430	1630
Weight	A	Kg	14000	25000	41000	45000	50000	95000	135000	155000
Weight	B	Kg	14000	25000	48000	53000	62000	108000	158000	173000
Noter: Supplyanddemandofnon-standardextrusionmachineshallbeagrreedbysuppliersandbuyers; Aisparofsingglemotor, Aisparameterofdoublemotor.

Guangzhou DT Exp. & Imp. Co. Ltd was established 2011. We have a great team with more than 15 years professional

The main Machineries we manage:

1) Furnace and all continuous casting system, upward casting, downward casting and level continuous casting for brass and copper.

The whole line will include the Melting furnace, Holding furnace casting, cutting, drawing, peeling and polishing processing and so on.

We also supply all dies like graphite dies, peeling dies and drawing dies for your whole production line.

2) Combined drawing machinery is our following treatment of copper bars after casting line and extrusion processing.

The combine drawing machinery will assemble all processing in one machine. It consists of 7 parts as following: Initial straightening -- drawing--precision straightening--hydraulic cutting--bar guide-- polishing -- material receiving frame.

Tools and mold for Combined drawing machine: Hydraulic scissor, drawing dies, knives for cutting and so on.

3) We also developed our own metal mold department for mold opening and metal tools and metal stampings. Such as punching mold for metal, drawing mold for metal, continuous mold and so on. We would like to design and make mold according to your finished products or drawings, also we can make the finished products according to your samples.

4) Also we supply metal crafts and arts.

Our advantages:

1. Professional, Concentration, Attentive

2. Feedback within 24 hours and 24 hours online;

3. Lifetime technology support and repair guarantee;

OUR SLOGAN: WE BEAT WITH BEST FOR YOU!
