| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 2/Ton |
| Pay Type: | T/T,Western Union |
| Prod Model: | 5086 5154 5182 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: | 500 Series |
| Thickness: | 0.20mm-320mm |
| Width: | 8mm-2400mm |
| Package: | Export Standard Packing or Customers' Demand |
| Place Of Origin: | Shenzhen,China |
| Delivery: | 7-30 Days After Deposit |
| Type: | Aluminum Coils |
| Application: | Glass Wall |
| Grade: | 5000 Series |
| Surface Treatment: | Mill Finish |
| Alloy: | Alloy |
| Temper: | O - H112 |
| Certification: | ASTMB |
| Shape: | Coil |
| Technique: | Hot Rolled and Cold Rolled |
Quick Detail:
Alloy 5083 aluminium plates have higher strength than 5052 plate and has exceptional thermal conductivity. In the tempered condition, it retains good formability due to excellent ductility. It is highly suitable for weding and can be hardened by cold work. Because Alloy 5083 exhibits excellent resistance to general corrosion, it is used in marine applications. Since Alloy 5083 is capable of withstanding extremely low temperatures without brittleness or loss of properties, it is especially suited to the cryogenic market.
Description:
Specifications of Aluminum Sheet:
1. Grade
1000 Series: 1050 1060 1070 1100 1200 1235 etc.
3000 Series: 3003 3004 3005 3102 3104 3105 3A21 etc.
5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc.
6000 Series: 6061 6063 6082 6A02 etc.
7000 Series: 7050 7075 7475 etc.
8000 Series: 8006 8011 8079 etc.
2. Thickness: 0.20mm-320mm
3. Width: 8mm-2400mm
4. Length: 1220 or per customer's request
5. Temper: all tempers, H1X, H2X, H3X, O, HXXX
6. Continuous casting and hot rolled both available
Chemical composition
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
1060 | 0.250 | 0.350 | 0.050 | 0.030 | 0.030.- | - | 0.050 | 0.030 | 99.6 |
1070 | 0.200 | 0.250 | 0.040 | 0.030 | 0.030 | - | 0.040 | 0.030 | 99.7 |
1100 | Si+Fe:0.95 | 0.05-0.2 | 0.050 | - | - | 0.100 | - | 99.0 | |
3003 | 0.600 | 0.700 | 0.05-0.20 | 1.0-1.5 | - | - | 0.100 | - | remains |
3105 | 0.600 | 0.700 | 0.300 | 0.30-0.8 | 0.20-0.8 | 0.200 | 0.400 | 0.100 | remains |
5052 | 0.250 | 0.400 | 0.100 | 0.100 | 2.2-2.8 | 0.15-0.35 | 0.100 | - | remains |
5154 | 0.250 | 0.400 | 0.100 | 0.100 | 3.1-3.9 | 0.15-0.35 | 0.200 | 0.200 | remains |
5754 | 0.400 | 0.400 | 0.100 | 0.500 | 2.6-3.6 | 0.300 | 0.200 | 0.150 | remains |
5182 | 0.200 | 0.350 | 0.150 | 0.20-0.50 | 4.0-5.0 | 0.100 | 0.250 | 0.100 | remains |
6061 | 0.3-0.7 | 0.500 | 0.100 | 0.030 | 0.35-0.8 | 0.030 | 0.100 | - | remains |
8011 | 0.5-0.9 | 0.6-1.0 | 0.100 | 0.200 | 0.050 | 0.050 | 0.100 | 0.080 | remains |
8079 | 0.200 | 0.300 | 1.0-1.6 | 0.100 | 0.6-1.3 | 0.100 | 0.250 | 0.100 | remains |

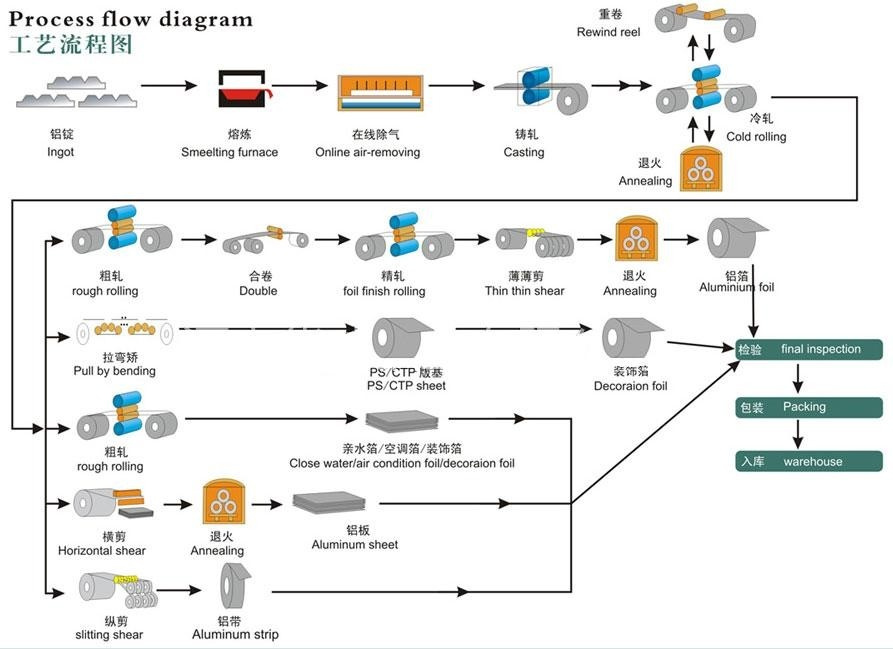

Manufacturing of Aluminum Coil:
Ingot + Master Alloy → Melting → Holding Fumace → Continuous Casting → Cold Rolling(Mediate Annealing) → Tension Leveling → Aluminum coil
Application of 5083 Aluminum Plates coil:
LNG ship construction
Pressure vessels
Storage tanks
Welded structures (high strength)
Armor plate
Drilling rigs
