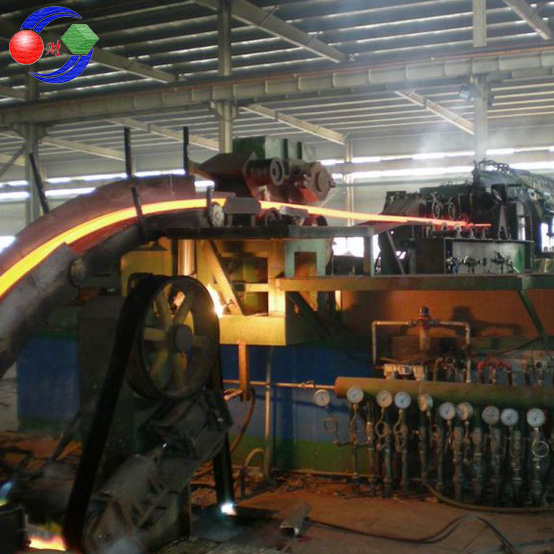

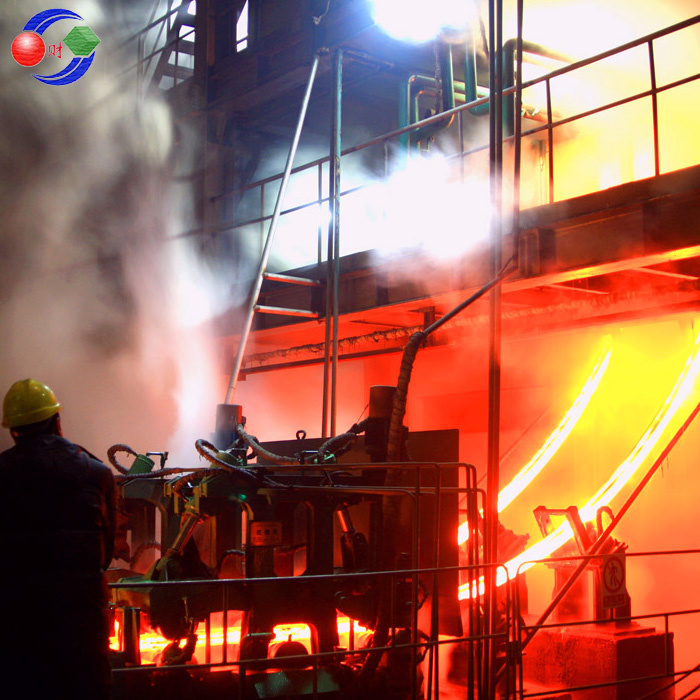

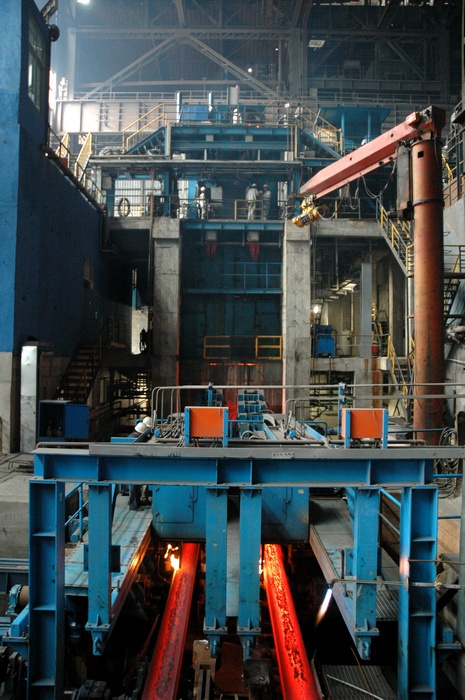

Continuous Casting Machine/CCM

Product Description

Main components

1.    Ladle turret

2.    Tundish car

3.    Tundish

4.    Crystallizer

5.    Secondary cooling zone

6.    Vibration table

7.    Piping for water system

8.    Pneumatic straightener

9.    Hydraulic system

10. Dummy bar storing device

11. Tundish on-line baking device

12. Tail billet pinch roller

13.  Transfer table

14.  Flame cutting machine

15. Hydraulic shear

16. Billet delivery roller and cooling bed

17. Billet moving device

18.  Tilting gear

R8m Continuous Casting production line   R8m

Technology process features

1.    The size of the billet that can be cast: big square billets and rectangle billet of

       150 x 150 mm2, 150 x 280 mm2, 150 x 320 mm2, 250 x 250 mm2 etc.

2.    Steel quality to be cast: high quality silicon steel, alloy structural steel, carbon

       tool steel, spring steel, bearing steel, etc

3.    Machine model: one set of 3 machines 3 strands

4.    Radius of casting machine: 8 meters

5.    Average casting speed: 2.22.8 m/min

6.    Designed casting speed: 1.23.5m/min

7.    Annual output: 600,000 tons

8.    Overflow percentage: ≤0.5%

9.    Heats for continuous casting: ≥8 heats

10.  product quality: up to the enterprise standard and up to the countries quality standard

R6m Continuous Casting production line   R6m

1.    The size of the billet that can be cast:  120 x 120 mm2 , 150 x 150 mm2,

       160 x 160 mm2,

2.    Steel quality to be cast: Q235, 20MnSi, low alloy steel,

3.    Machine model:  4 machines 4 strands fully arc type small square billet

       continuous casting machine

4.    Radius of casting machine: 6 meters

5.    Average casting speed: 2.7 m/min

6.    Max casting speed: 3.6m/min

7.    Annual output: 600,000 tons

8.    Overflow percentage: ≤0.5%

9.    product quality: up to the enterprise standard and up to the countries quality standard
