| Prod Model: |
R6m-4 strands |
| Markets: |
Southeast Asia,Africa,Mid East |
Product Description

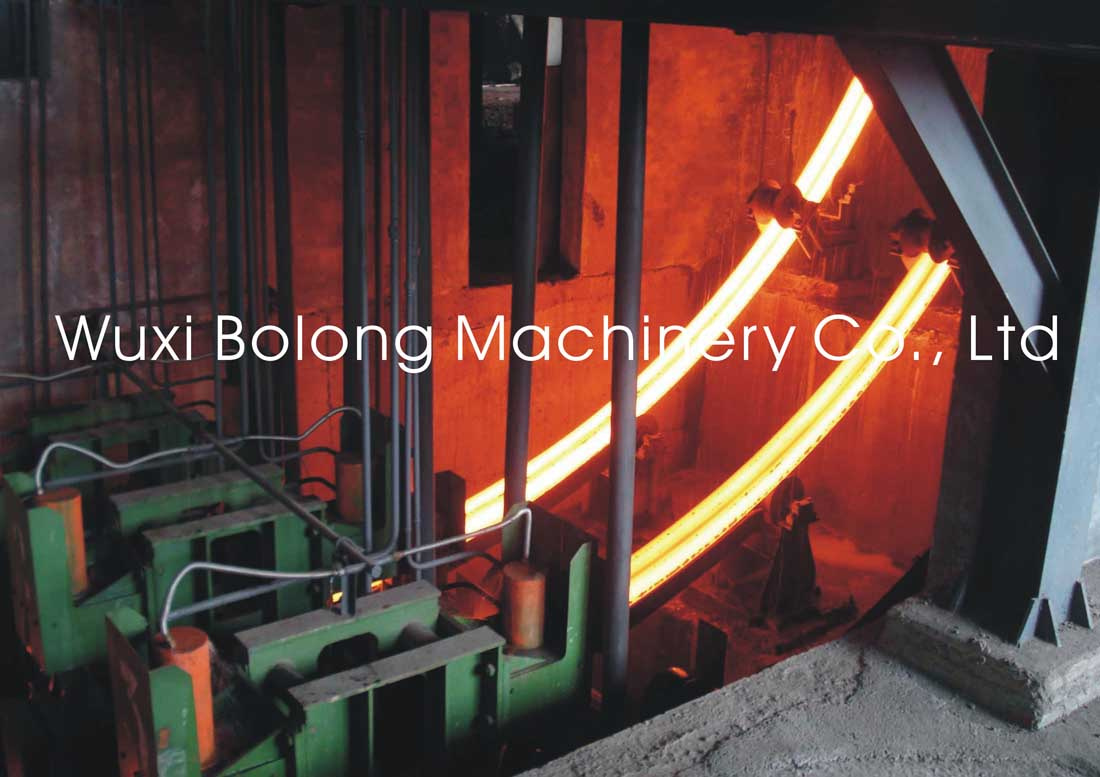

Wuxi bolong machinery Co., Ltd is an an integrated professional metallurgy machinery manufacturer, capable of providing equipment design, manufacture, installation, and commissioning. Our factory is competent to produce all kinds of continuous casting machine with radius from 3 meters to 13 meters, such as round billet, square billets and slabs.
Basic parameters:
Machine model: Fully arc continuous casting machine
Production ability: Depending on casting radius
Casting radius: R3m-r13m
Billet specification: Round, square and rectangular (slab)
Strand quantity: Depending on output requirement
Steel quality: Common carbon steel; Bearing steel; Low alloy steel and stainless steel, etc.
Ladle supporting method
Ladle turret; Ladle moving car; Fixed ladle support
Cooling method
Fully water cooling
Billet out method
Hydraulic billet pusher
Weight
Depending on casting radius and strand quantity
Color
Depending on customers requirement
Delivery time
Around 45 working days (without busy schedule)
Standard supply scope
Mechanical part
1. Ladle turret/ladle moving car/ladle fixed support (determined by customers)
2. Tundish
3. Tundish car
4. Mould
5mould vibration device
6vibration drive device
7protecting cover for vibration device
8secondary coolings spraying frame
9secondary coolings spraying pipe
10spraying nozzle for secondary cooling water
11support roller device for secondary and thirdly cooling
12withdrawal straightening machine
13transmission device for withdrawal straightening machine
14universal joint
15rigid dummy bar
16 dummy bar storage device
17 guide roller for dummy bar storage device
18billet delivery roller table
19Hydraulic billet pusher
20platform for billet collection
21flame cutting machine/hydraulic shear (determined by customers)
Electrics control system
23control system for mould vibration
24control system for withdrawal straightening machine
25 effective control system for dummy bar
28control system for billet delivery roller table
29control system for billet out
30control system for central hydraulic station
Steel structure
31 main casting platform
32 casting platform
33platform for dummy bar storage
Auxiliary system
34hydraulic system
35 discharging device for secondary coolings steam
36control system for secondary cooling water
37suspended operation box for withdrawal straightening part
38special configuration can be provided in accordance with customers requirements
Wuxi Bolong Machinery Co., Ltd., is an outstanding manufacturer of metallurgy machinery, such as Continuous Casting Machines, Whole Sets of Rolling Mills and Dust-removing Equipment, especially Continuous Casting Machines. Thanks to the support from our clients both at home and abroad and our unremitting efforts, since our establishment, we have grown up into an integrated professional metallurgy machinery manufacturer, capable of providing services of Equipment Design, Manufacture, Installation and Commissioning.
Our factory is competent to produce all kinds of continuous casting machines with the radius from 3 meters to 13 meters. There are lots of outstanding engineers and operators, who not only have rich knowledge of metallurgy machinery, but also have rich practical experience in the manufacture, installation and commissioning of our equipment.
Good at developing the newest technology, together with good quality equipment and well-deserved reputation, we have been enjoying a vast market and keeping expanding a new market. In the domestic market, our products have been welcomed and praised by over 300 famous steel companies throughout the mainland of China, such as Hebei Province, Shandong Province, Jiangsu Province, Guangdong Province, Guizhou Province, Zhejiang Province, Hubei Province, Yunnan Province, etc. Our foreign market has expanded to countries like Syria, Thailand, Libya, Iran, Georgia, etc.
Advanced technology, high quality equipment and good faith have made our factory a best choice for whoever is looking for a supplier of Continuous Casting Machines, Whole Sets of Rolling Mills, Dust-removing Equipment and other metallurgy machinery. We have been committing ourselves to optimizing our clients' investment and maximizing their profits. We believe that with mutual understanding and sincere cooperation, Wuxi Bolong Machinery Co., Ltd. Will reach a win-win situation with our distinguished clients.
