| Prod Model: |
C15100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Common Fabrication Process: |
Bending, Hot Forging, Machining, Heading, Swaging |
| Typical Uses: |
Pensil-Type, Light Soldering Guns, Tips |
| Industrial Applications: |
Resistance Welding Tips, Solderless Wrapped |
| Manufacturing Process: |
Resistance to Thermal Softening |
| Automobile Industry: |
Electron Beam Welding |
| Alloy: |
Alloy |
Product Description
-------------------------------------------------------------------------------------------------------------
ASTM : C15100
Compositions : CuZr
Characteristics : 1, Corrosion resistant
2, High thermal conductivity
3, High strength
4, High hardness
5, Metal pick-up resistant
Hardness(HRB): ≥68 -- 85
Conductivity%(IACS): ≥93
Applications : 1, Spot welding electrodes
2, MIG/MAG welding contact tips
3, Semi conductor bases
4, Commutator bars
5, Radial stalks for generator rotors
6, Continuous moulds
7, Connectors
8, Welding wheels
9, Solderless wrapped
10, Resistance welding tips

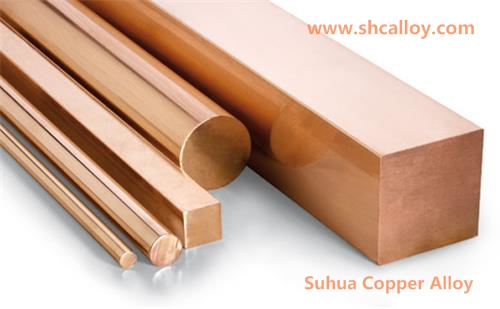

Forms available:
Round/rectangular bars : 1-200mm(diameter)
Plates : 8-150mm(Thickness)
Hexagons : A full range of
Other forms : Available upon request
--------------------------------------------------------------------------------------------------------------
1, Zirconium :
Zirconium has a melting point of 1855 degrees C or 3371 degrees F.
Zirconium is a highly adaptive element with a variety of compounds and alloys that are used in a wide range of industries, including nuclear energy, industrial fabrication, healthcare and even national defense.
Zirconium is highly resistant to heat and corrosion, and it also forms many useful compounds and alloys. These strengths make it an ideal component for nuclear reactions, and it is also used in laboratory equipment, metallurgy and surgical appliances. Jet engines and gas turbines may also use zirconium and zirconium alloys to prevent metals from warping due to high heat exposure.
2, Zirconium Copper Alloy UNS C15100:
A small addition of Zr to copper improves resistance to softening and resists deformation at high temperatures where normal copper would soften rapidly. Zirconium Copper is used as a class 1 electrode material to minimize sticking when resistance spot welding galvanized materials. Zirconium Copper is also used in many high temperature applications i.e. aerospace, power generation, etc.
RWMA DESCRIPTION
A specially heat treated zirconium copper alloy that meets the minimum electrical conductivity and hardness specifications of class 1 alloy.
RWMA GENERAL USE
Electrodes for welding aluminum alloys, magnesium alloys, coated materials, brass and bronzes. Can be used for both spot and seam welding.
