| Prod Model: |
LS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
According to The Drawing |
| Refractoriness (',℃): |
1770< Refractoriness< 2000 |
| Feature: |
Long Time Materials |
| Type: |
Refractory Material |
| Shape: |
Pipe |
| Material: |
Alumina Graphite |
Product Description

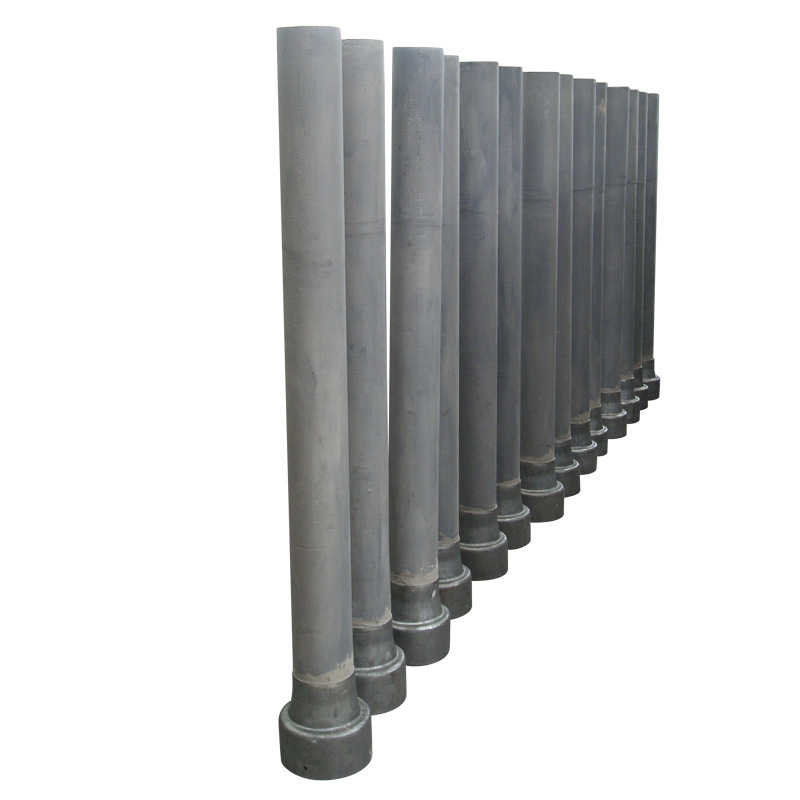

Ladle Shroud
Depending upon the con-casting condition, we provide ladle shrouds of Alumina-Graphite (Al2O3-C) or Alumina-Zirconia Graphite (Al2O3-ZrO2-C) which are custom designed. The products have the following characteristics:
1. Pre-baking unnecessary: With the functional gradient structure, our ladle shrouds are characterized by high thermal shock resistance and can be applied to the con-casting process directly from the ambient temperature, without preheating.
2. Long service life: Specially designed slag line composition for customer casting conditions guarantee our ladle shrouds with the properties of high erosion resistance.
Mark
Item | Body | Slag line |
| WAM-LB | WAM-LSA | WAM-LSB |
| Al2O3 | ≥55 | ≥66 |
|
| ZrO2 |
|
| ≥65 |
| C | ≥25 | ≥18 | ≥18 |
| B.D g/ cm3 | ≥2.4 | ≥2.6 | ≥3.4 |
| A.P % | ≤14 | ≤15 | ≤14 |
| MOR Mpa | ≥7 | ≥7 | ≥6.5 |
| CCS Mpa | ≥25 | ≥25 | ≥23 |
| Application | General using body material. None preheating and good thermal shock | General using slag line material | Used for erosion steel.
Long life,but high cost |
Our factory located in the beautiful coastal city- Qingdao, is just 30 kilometers from HuangDao Port, and near to JiQing expressway.
With special technology and experienced production method, we provide a wide range of Mullite Insulating Bricks and other refractory bricks for the field of metallurgy, petroleum, ceramics, glass and other industrial furnace.
WAM has established business relations with more than one hundred domestic enterprises and twenty abroad customers. WAM series insulating bricks has won good reputation in domestic and abroad.
Quality is the life of an enterprise. To make high quality products has always been our motto. We pay more attention to technical innovation and have set up our own R&D center with solid technology strength. To supply good quality products and excellent service for customers is our always target.
Accordingly, the Chairman of the board, Mr. Li Yong on behalf of the whole staff expresses his thanks to all friends for their supports, and welcomes you to visit the company for joint development and undertaking.
