| Prod Model: |
AII1500-1.0836/0.8036 |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Inlet Flow: |
1500m³/Min |
| Total Pressure Rise: |
28kpa |
| Material: |
Iron |
| Usage: |
for Manufacture |
| Flow Direction: |
Centrifugal |
| Pressure: |
Medium Pressure |
| Certification: |
SGS |
Product Description
1. Pneumatic design: single-stage centrifugal blower impeller, double support;

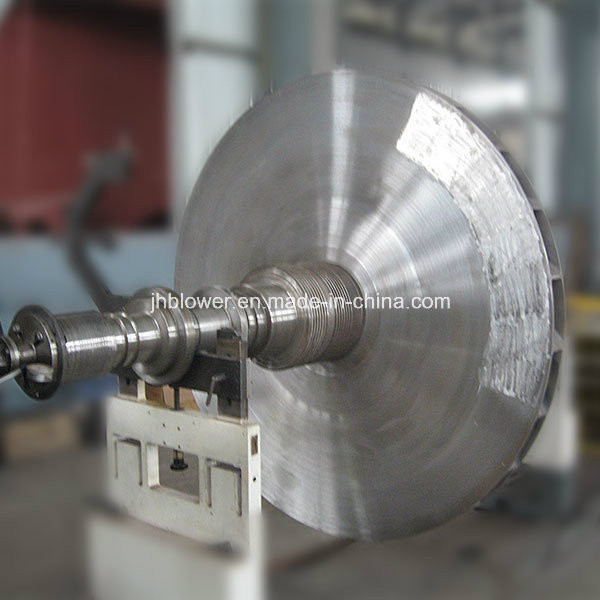

1.1. The rotor:
Three body welding blade, wheel and wheel cover are all use high strength alloy steel make, at the same time, adopts the heat treatment process after welding, that can ensure the impeller grain size of the whole organization, and eliminate the stress after welding, so improve the safety and reliability of the impeller. After 15% above the working speed of impeller speed test, rotor precision dynamic balancing correction, ensure smooth operation.

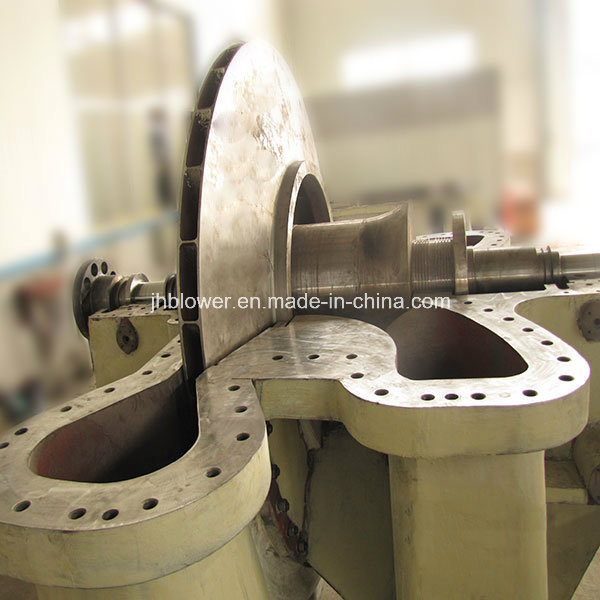

1.2. The chassis using resin sand casting, it have a bright and clean appearance and internal organization.
1.3. Bearing:
the thrust bearing is tilting bearing , radial bearing is circular sliding bearing
1.4. With oil station and high oil tank.
1.5. Coupling: Elastic coupling.
1.6. In order to effectively remove dust accumulation on the impeller, this blower designed the water washing system, under the condition of the low speed to wash, once every 10 to 15 days.
2. Technical parameters for AII1500-1.0836/0.8036:
| no | Parameter Name | unit | Design point parameter | For note |
| 1 | Inhalation of medium |
| converter gas |
|
| 2 | Import volume flow | m3/min | 1500 |
|
| 3 | Total pressure rise | KPa | 28 |
|
| 4 | Medium temperature | ºC | 60 |
|
| 5 | Blower working speed | r/min | 2900 |
|
| 6 | The motor power | KW | 1000 |
|
3.
Material of main parts:

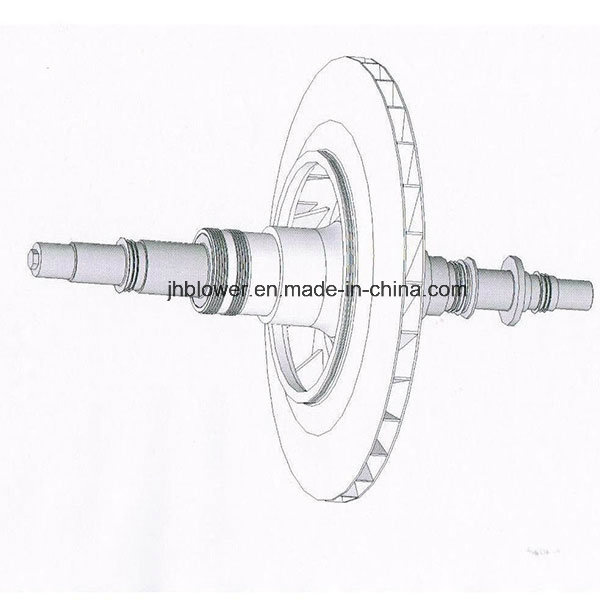

3.1. Rotor:
Main shaft: 35CrMo
Impeller: FV520B
3.2. Stator:
Casing: HT250
Gas seal: HT250+ZL102
Oil sealing: ZL104
Pressure cover of bearing housing: HT250
