| Prod Model: |
J54-1600C |
| Type: |
Casting&Forging Machine |
Product Description

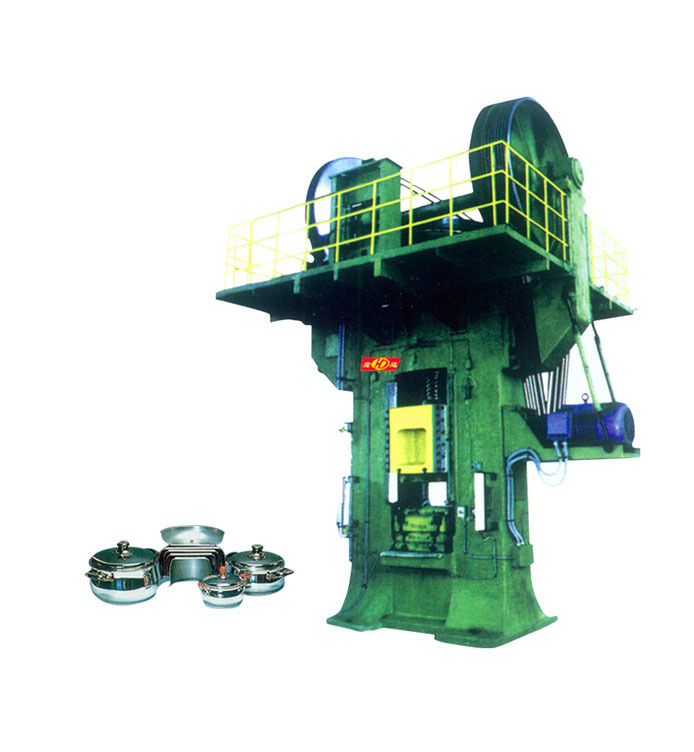

This machine is a type of large precision pressure equipment, with good mechanical properties, mainly used in manufacturing of metal parts such as forging, adjusting, precise pressing and punching, cookware press etc. As a result of its universal usage, it's widely used in manufacturing industry for tools, medical instruments, tableware, stainless steel pot etc.
In addition to the normal structural features of double disc friction press.
J54-1600C is assured to have the following characteristics:
(1) The frame has been changed from integral style to separate style.
(2) Operation consists of two compressed air actuating cylinder instead of the shifting fork, then the actuating cylinder can make the main shaft moving leftward or rightward.
(3) The fly wheel can be stopped at any position of the whole stroke by operating the braking mechanism, bigger brake moment.
(4) The electrical system adopt PLC(programming) to control, safety and reliable.
(5) It can be hit by one time or two times in terms of stroke times and blow energy.
(6) Adopt electrical system to auto run lubrication.
(7) There is the photoelectric protector used for protecting operator.
Our factory situates about 160, 000 square meters, the floor space is 60, 000 square meters, has more than 260 sets of large and middle equipment. The lifting capacity is 200tons, and we can assemble series press machine with nominal force from 160 tons to 8, 000 tons.
