| Prod Model: |
JLZ-70KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008, CE, SGS |
| Frequency: |
1-20kHz |
| Cooling Water Desire: |
>0.6MPa 60L/Min |
| Including: |
Induction Heating Power, Forging Furnace, Pusher |
| Net Weight: |
105kg |
| Package: |
Plywood Case |
| Application: |
Induction Forging, Induction Heating |
| Theory: |
Electromagnetic Induction Heating |
| H.S Code: |
8514400090 |
| Type: |
Hot Forging |
| Forging Forming Method: |
Hot Forging |
| Warranty: |
1 Year |
Product Description
Copper Bar Induction Heating Furnace Induction Forging
Product Description

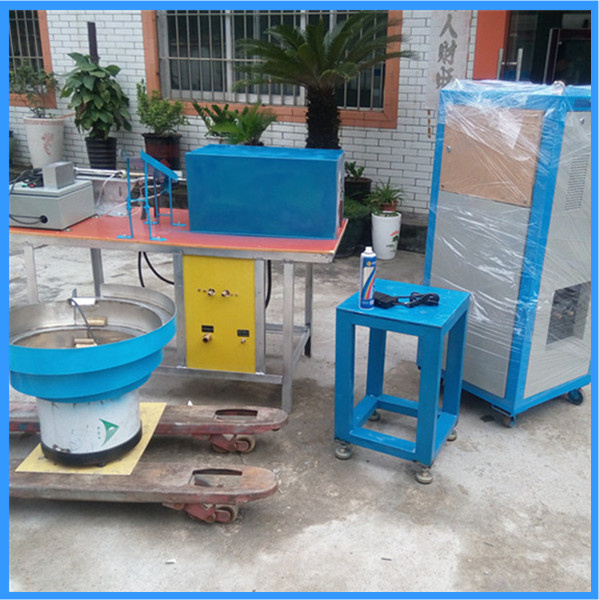

The furnace includes basically the JL medium frequency generator, the compensating cap, the working table, the heating coil, coil cover, rod feeder and so on. For some applications, the infrared sensor, temperature controller and automatic rod feeding systems can also be included.
1>Characteristics of M.F Forging Furnace
2> Wide frequency range from 1KHZ to 20KHZ,frequency can be designed to satisfy different size of the heated rods.
3> In the continuous heating process, the load inside the coil is stable , thus to overcome the great heating power change caused by the great change of the load during the heating course from cool rod to 1100 degree rod. The actual power can reach more than 85% of the rated power of the machine.
4> The heating coil can be 500mm to 1 meter long, several pieces are heated at the same time to make sure the penetrating effect.
5> Even when heating non-ferrous metals like copper or aluminium, the actual power can also reach more than 85% of the rated power of the machine by design the coil properly and match the compensating cap correctly. 3.5KG copper or brass can be heated to 700 degree per kilowatt in an hour.
2.Applications
M.F. forging furnace is used for the heating of bars and rods larger than Φ12, the material can be steel, stainless steel, copper, brass ,aluminium and so on. The heating can be the whole rod, end of the rod or middle part of the rod.
3. Main parameter
| Model | JLZ-45KW |
| Input power desire | 3 phase 380V
50/60HZ |
| Oscillate power max | 45KW |
| Max input current | 70A |
| Oscillate frequency | 1-20KHZ |
| Cooling water desire | >0.3MPa 4L/Min |
| Duty cycle | 100% 40°C |
| Dimensions(L*W*G) | 630*600*1500mm |
| Net weight | 120kg |
| Cable length | 2-6(Meters) |
Main Models & Heating Ability:
| Models | Max. Input Power | Heating Ability of Normal Material |
| Steel /S.S to 1100 degree | Copper/ brass to 700 degree | Aluminum to 500 degree |
| JLZ-35 forging furnace | 35KW | 1.25 KG/min | 1.75 KG/min | 1.46 KG/min |
| JLZ-45 forging furnace | 45KW | 1.67 KG/min | 2.33 KG/min | 1.87 KG/min |
| JLZ-70 forging furnace | 70KW | 2.5 KG/min | 3.5 KG/min | 2.92 KG/min |
| JLZ-90 forging furnace | 90KW | 3.33 KG/min | 4.67 KG/min | 3.75 KG/min |
| JLZ-110 forging furnace | 110KW | 4.17 KG/min | 5.83 KG/min | 4.58 KG/min |
| JLZ-160 forging furnace | 160KW | 5.83 KG/min | ------- | 6.67 KG/min |
Factory Delivery Time
3-7 days after receiving your payment
Payment Terms
100% T/T in advance
Packing
Plywood box (size: L*W*H 585*440*750mm, G.W: 38KG)
Warranty
1. 12 months warranty period
2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedureoccurs, Jinlai shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, Jinlai will send maintenance technician to provide visiting service after checking with the customer and charge for a favorable price.
4. Jinlai will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
5. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
