| Prod Model: |
CMT-7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Cmt-7 |
| Type: |
Round Copper Mould Tubes |
| Thickness: |
Unlimited, as Per Drawing |
| Wall Thickness: |
Unlimited, as Per Drawing |
| Length: |
Unlimited, as Per Drawing |
| Outside Diameter: |
Unlimited, as Per Drawing |
| Materials: |
Cudhp, Cuag, Cucrzr, Cunip |
| Certification: |
SGS, ISO |
| Place Of Origin: |
Jiangsu China (Mainland) |
| Material: |
Copper |
| Application: |
Continuous Casting Machine |
Product Description

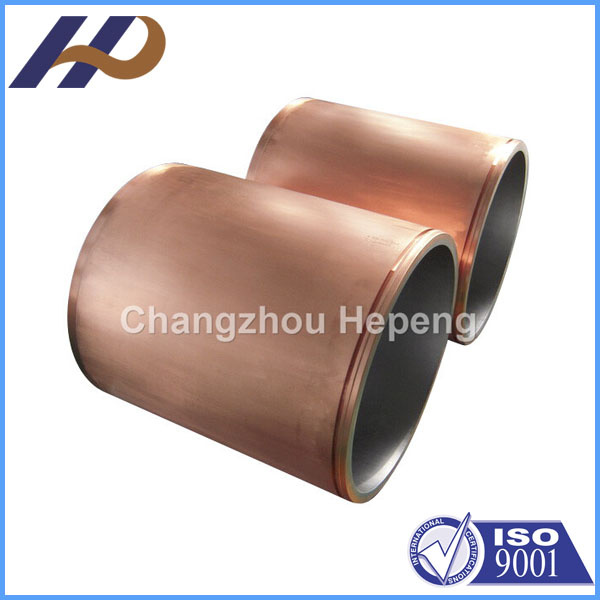

Copper Mould Tube for Continuous Casting of Round Billets Caster with Alloy Coating
Used for various industrial applications across diverse industries, our Copper Mould Tubes are demanded for their dimensional accuracy and uniform construction. We are leading traders of quality Copper Mould Tubes manufactured using quality raw material procured from reliable sources. We provide finest quality copper mould tube for spectro meter analysis. These Copper Mould Tubes are available in different specifications and sizes to meet various demands of our customers. Our products comply to all standards and norms of the industry.
Further features of the Copper Mould Tube are listed below:
· Durable
· Sturdy
· Anti corrosive
· High tensile strength
· Cost effective
· Customizations as per demands of our customers.
Our Products Show
Our main products: Square, Rectangular, Round and Beam Blank copper mould tubes. With dedicated research of new technologies, we continuously develop various sizes, materials and special shapes, large and super large size mould tubes. We also developed various types of high efficiency copper mould tube for continous casting machine. Our products range also features mould assembly and other metallurgical spare parts. Apart from copper mould tubes, we also produce various types of copper mould plates and assembled beam blank moulds.
Our Factory Show
1. We have 23 advanced CNC centers and 2 sets special CNC machine tools.
2. We have complete electro-plating facilities, first class electro-plating equipment and up- to-date electro-plating technogies.
3. We have two electro-plating workshops for mould tube plating and mould plates plating separately and each of them covers an area of 1800 square meters.
4. There are 22 tanks for Cr plating of mould tubes and 7 tanks for plating of mould plates.
5. The maximum size of round tubes that can be plated is Dia.1200mm and the widest broad face mould plates can be plated is 3800mm.
6. We have advanced water-treatment system.
7. We adhere strictly to the environmental policy of zero emission which makes our company a green and environment-preserving enterprise.
Our Partner
Our copper tubes have been exported to more than 39 countries and regions in Europe, Asia, America, Africa, Oceania...
Why you choose us?
1. Industry experience over 20 years
2. Raw Material inventory - Over 80000 Mertic Tons
3. We have the most convenient transport and prompt delivery
4. We offer competitive price with best service
5. We have high technical production line with top quality products
6. We have win high reputation based on best quality products
Cross-sectional shape
Specification |
Square |
Rectangle |
Round |
Alien |
|
Size Range (mm) |
50x50 ~ 500x500 |
100x650 ~ 500x650 |
Φ90 ~ Φ1200 |
|
|
Length (mm) |
700-1000 |
|
Radian (mm) |
R2500-R16000 |
|
Lumen geometry (taper) |
Single cone, double cone, multi cone, parallel lines taper, parabolic taper |
|
Material |
Cu-DHP (SF-Cu DIN1787), CuAg0.1, Cu-Cr-Zr |
|
Coating |
Cr, Ni-Co-Cr |
Operating personnel and engineering technical personnel of our company mainly come from Bao Steel Changzhou Metallurgical Machinery Plant. In recent years, with the support of solid technical skills and rich manufacturing capacity, we provide spare parts with the total price of over USD 8 million for Bar Material Factory, Wire Rod Factory, and Steel Plate Factory in the countries of Southeast Asia. For how to suit the needs of various rolling mill overseas to manufacture rolls, drill, tools, roll collars and various spare parts that meet the clients' demands more, we have accumulated richer experience. The clients are often willing to discuss some problems on technology occurred in the production with us so that service performances of spare parts collars are improved constantly. During the process, many clients have made good friends with us.
Our company sincerely hopes to further advance the production capacity of your company through understanding and cooperation between both sides.
Welcome to visit in China.
