Prod Model: |
UL+Z-1800+255/12 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Raw Material: |
Pure Red Scrap Copper |
Outlet Dia.: |
8, 10, 12mm |
Output Capacity: |
14.5t/H |
Product Description

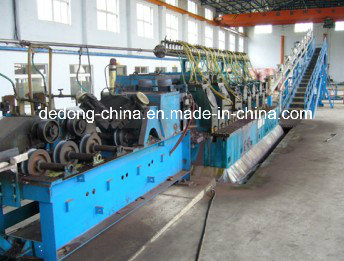

Technical Specifications For UL+Z-1800+255/12 Copper Rod Continuous Casting & Rolling Machine
I. Application

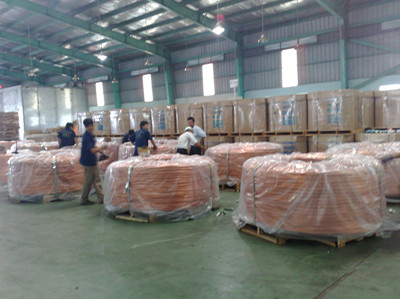

This machine is applied to manufacture 8mm bright copper rod by adopting a technology of continuous casting and rolling. Cathode copper or Scrap copper is chosen as raw materials. This production line is composed of the following parts: shaft melting furnace, holding furnace, 60T reverberatory furnace, 5-wheel continuous casting machine, automatic scrolling shearer, straightening & edge shaver, casting bar brushing machine, continuous rolling machine and orbital coiler and electrical control system, and so on.
II.Main Technical Data
1. Dia. of copper rod ø8 mm
2. Production capacity 12-16T/hour
3. Speed of ingots out 6.4-15.56 m/min
4. Finished rolling speed Vmax=9.8m/s
5. Diameter of crystallizing wheel φ1800mm
6. Crystal wheel driven motor Y112M-4? 4KW 1440r/min(AC Frequency converter)
7. Continuous rolling mill motor Z4-355-12 450KW 1000r/min(With speed regulator) 8. No. of rolling stand 12 stands (2Horizontal roller, 2 Vertical roller, 8 'Y' type transmission stand)
9. Rod coiling type Centrifuge head-swinging
10. Roller nominal diameter Φ255mm
11. Coiling diameter Φ1200-Φ1900mm
12. Coiling weight 3.0-5.0 t
13. Total power ~650KW(not include furnace)
14. Total weight 82 tons (not include the furnace)
15.Overall dimensions ~41.7×7.8×6.1m?
(not include furnaces and recycling cooling and filtering system)
III. Technical Specifications
1. Shaft melting furnace and holding furnace one set
a. Shaft furnace type: shaft type
Melting rate: 12-16t/h
Time for melting start (from solid to melting start): less than 2 hours
Height from melting outlet to material inlet bottom: no less than 6m
Height of furnace (chimney and foundation except): not less than 8.6m
Feeding type: tipper-hopper
Capacity of feeding device: 5t
b. Holding furnace type: hydraulic tilting type
Capacity: 8-10T
Max. Tilting angle: more than 70°
c. Temperature controlling precision: +10°
Gas consumption: 55-65m3 (for each ton copper rod)
d. Lining of shaft furnace and holding furnace: Sic bricks
Trough (upside and downside): closing trough system
Combustion system: automatic/manual control (automatic ignition), with?? protection device.
Main nozzle for shaft furnace: 800,000Kcal/hour, 12pcs
Nozzle for holding furnace: 500,000Kcal/hour, 2pcs
Small nozzle for trough: 50,000Kcal/hour
Upside troug 8pcs
Downside trough 8pcs
Fuel: natural gas
Natural gas: 8,500Kcal/m3
Gas pressure of the inlet: 8-12kpa
2. Stationary reverberatory furnace one set
Application: refining the red copper scrap
Type: stationary
Capacity: 60+5%MT
Heating fuel: natural gas or heavy oil
Melting rate: 15T/h

For more information, please feel free to contact us.
