| Prod Model: |
UTY-6/10A (dia. 8) |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Outlet Diameter: |
8mm |
| Raw Material: |
Copper Scrap/Copper Cathode |
| No.: |
10 |
| Delivery Speed: |
2.5-3m/Min |
| Precision: |
High Precision |
| Certification: |
SGS |
| Heating System: |
Electric |
| Function: |
High Temperature Resistance |
| Mould Life: |
300,000-1,000,000 shots |
| Automatic Grade: |
Automatic |
| Condition: |
New |
| Customized: |
Customized |
| Warranty: |
12 Months |
| Demoulding: |
Mechanically |
Product Description
Copper Rod Upward Continuous Casting Machine UTY-6/10A (dia.8)
I. General descriptions of equipment
The technological process of the up-cast continuous casting machine for oxygen-free copper rod is: Electrolytic copper plate (cathode copper)melting furnace holding furnace Haul-off device
Crystallizer Rod coiler copper rod
II. Advantages
1)Control the oxygen content of copper rods to eliminate the hollow core?? technology.
2)Low energy consumption, energy consumption in a?single ton 20% lower than that of similar devices.
3)?Removable sensors, flexible maintenance, short repair time.
4)Computer control, servo drive system, man-machine conversation interface.
5)Automatic controlling take-up, more than 3?tons single rolling weight.
6)The?highest grade of the heat-resistant furnace material.
III. Scope of supply:

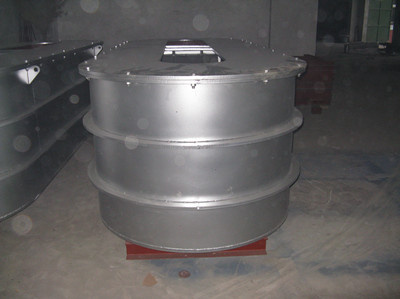

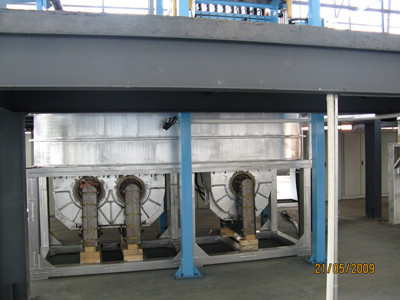

1. Melting &?Holding furnace 1set
I. Body of furnace 1PC
II. Cover 1set
III. Frame 1PC
IV. Shell of inductor 1PC
V. Copper ring 1PC
VI. Coil 2PCS
VII. Water jacket 2PCS
VIII. Iron core 2PCS
IX. Furnace burden 1set
X. Nickel-chromium-silicon thermocouple 3PCS
2.4-head Haul-off 1set
I. Platform 1set
II.?Touch screen PLC control servo motor driving system?1set
III. Pneumatic clamping system 1set
IV. Level lifting automatic tracking system 1set
V. Cooling water system 1set
VI. Crystallizer suspension system 1set
VII. Crystallizer 5PCS
VIII. Protective sleeve of Crystallizer 25PCS
IX. Graphite die of Crystallizer 50PCS
3. Electrical System
I. Power Supply Cabinet 1PC
II. Voltage regulation cabinet?1PC
III. Operating Desk 1PC

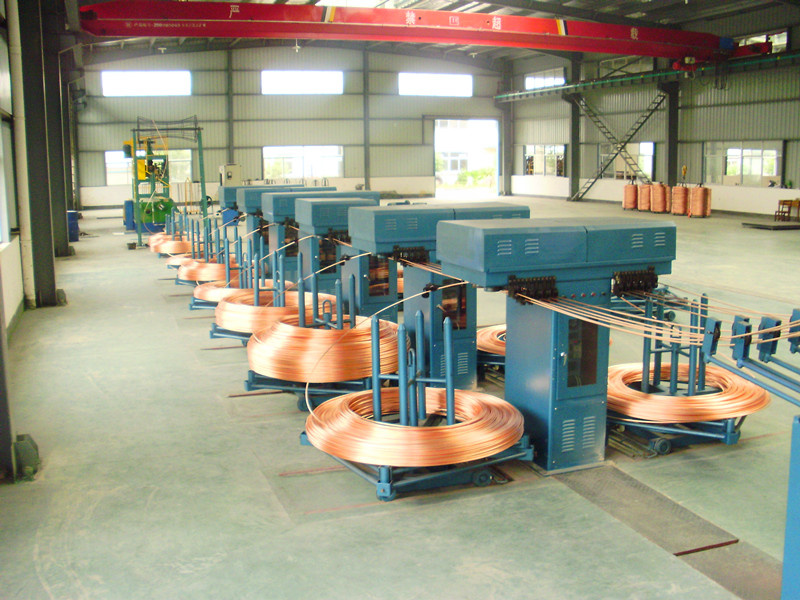

4. Rod coiler system?1set
I. Speed regulation device 1PC
II. Take up device 2PCS
III. Take up track rail 2PCS
IV. Trolley 4PCS
V.Frame 6PCS
For more information, please feel free to contact us.
The Deyang Dedong Electrotechnical Machinery Manufacture Co., Ltd is located in Deyang city, Sichuan Province where is a processing center with heavy industries. The company has been engaging in manufacture of specialized wire & cable equipments for 35 years. It is a private joint-stock enterprise which puts design, machining, manufacture, installation and commissioning into integrity.
Getting support from its technicians with high quality and high academic credentials and teams with advanced management ideas and market administration ability, with the persistent standpoint of market-oriented development, the company strives for promptly providing customers with high-tech products and services characterized as "prompt services for new products with super quality and competitive price".
Company's machining capabilities cover an extensive range, with a well-equipped machining workshop, assembly, assembly workshop, welding workshop, heat treatment workshop, tool workshop, gear processing workshops, and fixture workshop attached to the production department, the annual output value reached more than 30 million.
"Dedong Electrotechnical", which is the council member unit of China electrotechnical professional association, passed through the certification of national GB/T19001-2000 quality management system and obtained an honorary title of Sichuan quality credibility enterprise in 2007. The company owns an independent export right.
The main products in our company have aluminum, alloy/copper rod continuous casting and rolling line, aluminum/copper wire drawing machine, wire stranding machine, continuous lead sheathing extruder etc., which have been exported to many countries, gotten high evaluations from customers all over the world.
Sincerely inviting you to hold us together to win the market and create a bright future.
