Copper Tube Continuous Casting Machine
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
FLZ-3k6s 8~30 |
| Markets: |
North America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Oxygen Content: |
≤10ppm |
| Conductivity: |
100%~102% Iacs |
| Elongation: |
≥37% |
| Tensile Strength: |
≥170n/Mm2 |
Product Description
Copper Tube Continuous Casting Machine
Introduction:
Upward continuous casting production line is mainly for making copper bar, copper tube, copper strip and other different shape materials. It has many advantages such as continuous casting with high efficiency and large output, producing multiple product types with different sizes or structures, automatic control, products of high electric conductivity and low oxygen content. It's widely used in many copper industries, such as copper wires, electric cables, air-condition cooling pipes and so on.
Main Technical Specification:
Oxygen Content: ≤10ppm
Conductivity: 100%~102% IACS
Elongation: ≥37%
Tensile Strength: ≥170N/mm²

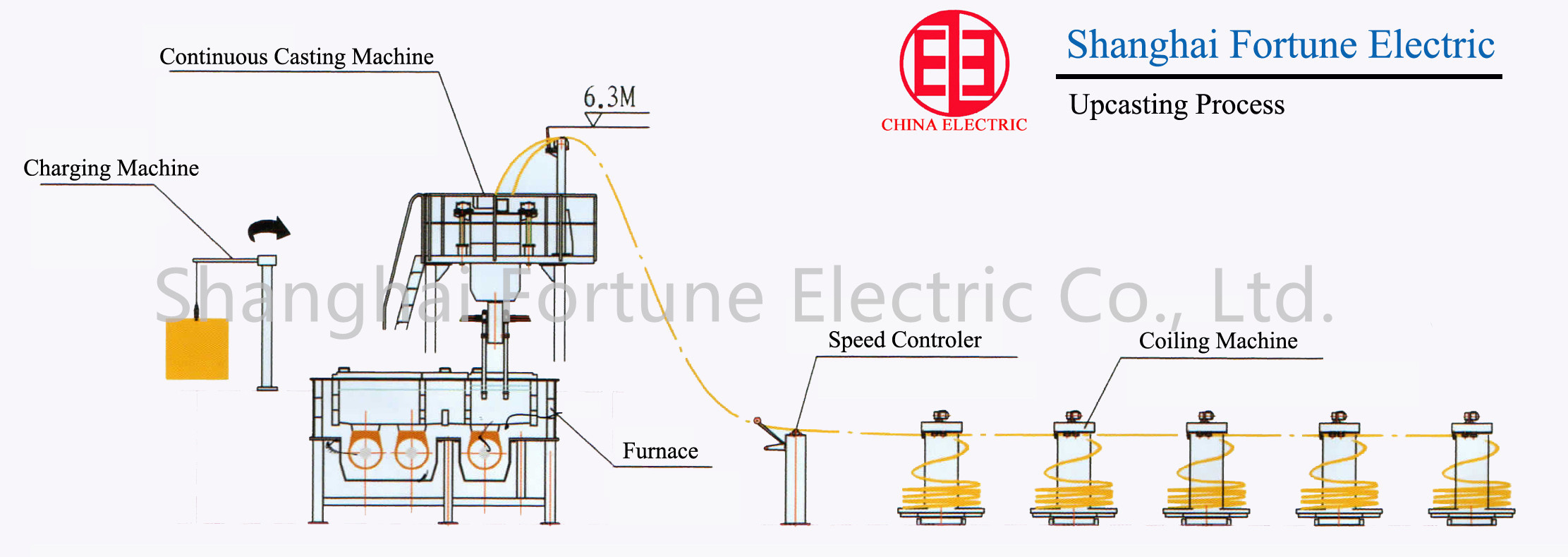

Upcasting production flowchart:
Copper CathodeCharging MachineMelting FurnaceLaunderHolding FurnaceUpward Continuous Casting MachineSpeed ControlerCoiling Machine
Working principle:
Put crystallizer into molten copper liquid, and freeze the rising copper. Servo-control system will have th solidified copper bar continually go upward by a reducer. Copper products of different size can be produced when equiped different types of crystallizer.

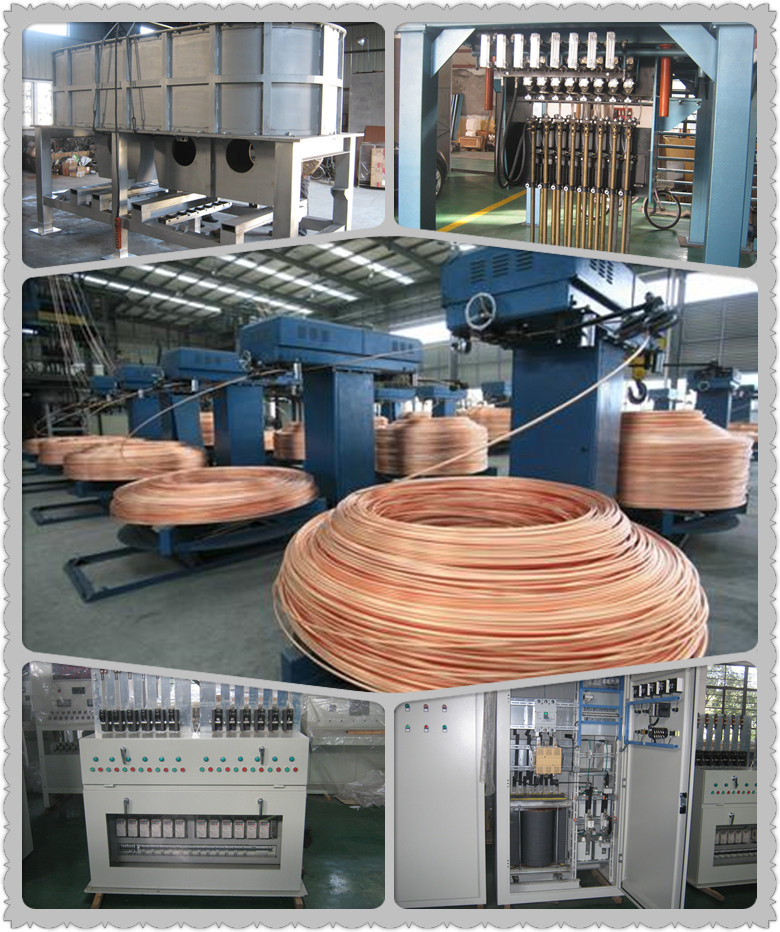

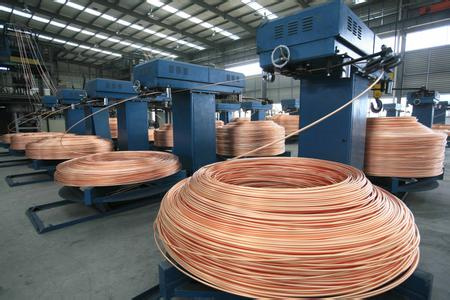

Machines In Upcasting Line:

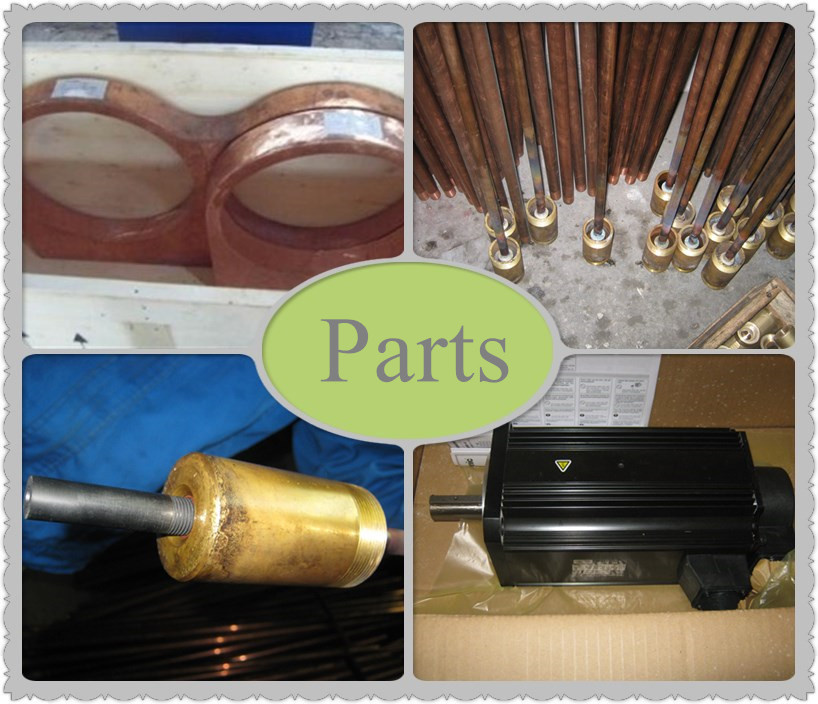

Machine Parts:
|
Model |
Capacity (T/year) |
No. Of Strands |
Diameter (mm) |
|
FLZ-3K6S 8~30 |
3000 |
6 |
8~30 |
|
FLZ-5K10S 8~30 |
5000 |
10 |
8~30 |
|
FLZ-6K12S 8~30 |
6000 |
12 |
8~30 |
|
FLZ-8K20S 8~12 |
8000 |
20 |
8~12 |
|
FLZ-10K16S 17~30 |
10000 |
16 |
17~30 |
|
FLZ-12K24S 8~12 |
12000 |
24 |
8~12 |
|
FLZ-15K20S 17~30 |
15000 |
20 |
17~30 |
