| Prod Model: |
DIN STANDARD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Technical Spec.: |
Tolerance:CT8 Roughness:Ra12.5~6.3 Mass:up to 80kg |
| Casting Method: |
Waterglass |
| Type: |
Waterglass |
Product Description

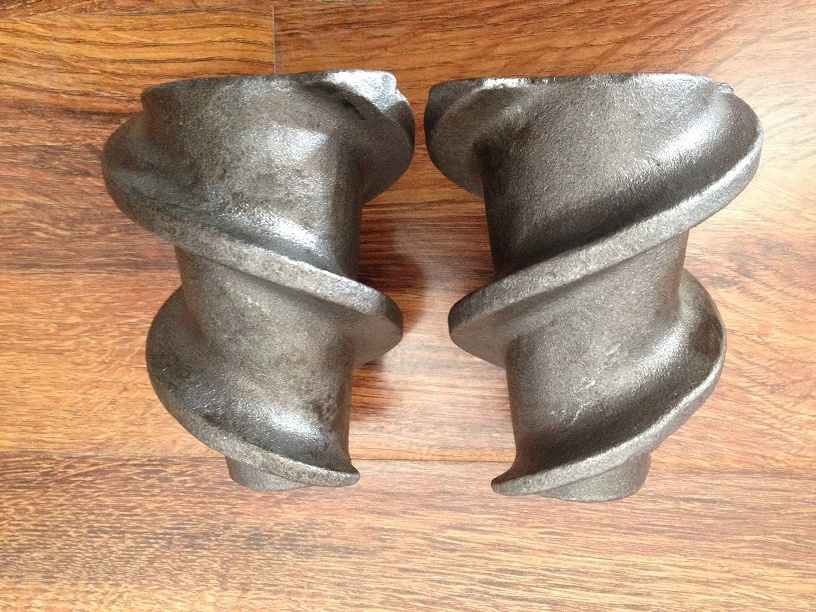

1. Name: Corkscrew pin made by steel casting
2. Production method: It was casted by waterglass casting method and then to machine it by CNC lathe and CNC milling. All dimensions are checked strictly.
3. Machining equipment: CNC Machine, vertical centers, miling machine, lathe
machine.
4. We also can develop other various of steel castings as per the drawing or
samples of customer.
5. Range of Application: Used for Auriculautal machine.
6. Export area: Is exported to America,Canada,Italy.
7. Capacity: We have two half-automatic casting line which guarantee us to cast
more than 12000MT/year.
CHEMICAL ANALYSIS %
C
Si
Mn
S
P
Min
0.17
1.00
N° HEAT
Max
0.23
≤ 0.6
1.50
≤ 0.015
≤ 0.02
Actual
0.21
0.41
1.20
0.013
0.017
MECHANICAL ANALYSIS
Yield point
Tensile Strength
Elongation %
Hardness(HB)
N/mm2
N/mm2
N° HEAT
Requirements
≥ 240
≥492
≥21
/
Actual
291
615
23.5
/
Qingdao Casting Bright Machinery Co., Ltd. Specialist In Small, Medium and Large Series Steel & Stainless Steel Castings from less than 0.01kgs up to 1500kgs with capacity 18000MT/year experenced from 1995.
All our products are strictly made in accordance with our customers' designs or samples, and are carefully inspected and well packed by our experienced employees before shipping. Our products are now used on many brand-name equipment and machinery around the world.
We appreciate every business opportunity, and are committed to manufacture high quality parts for our customers by the most competitive prices, on time delivery and the best services. Please do not hesitate to contact us, when you need any steel parts.
