Product Description
Traditional using mild steel, aluminum sheet, stainless steel sheet etc making door plank parts, we need to cut the four angle first, then need to fold, weld even Polish and these will waste so much time, at the same time have much noise & dust.

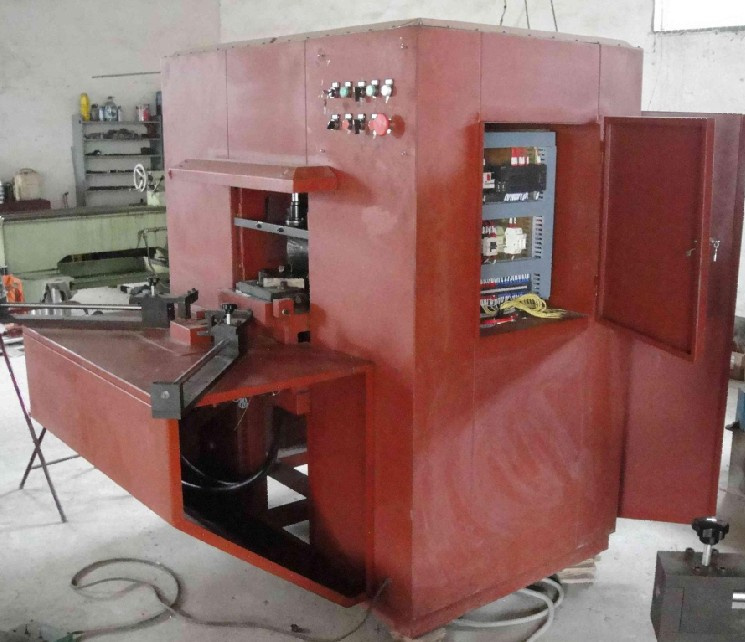

If we adopt stretching mould, so the door size should be fixed, different size door sheets need different size mould. According to this situation, our company developed special forming machine for door sheet angle. We adopt angle forming machine, then the sheet don't need opening angle, only pre-folding the four sides of sheet, when the angle forming a evase shape then can be process in the angle forming machine & the door sheet size can change discretionarily.
Characteristic: Door four angles don't need opening angle welding, only rolling forming & cutting in the machine.
Standard angle radium is 4, 6, 8 mm; Special angle can adopt special mould. Only use first bending machine will fold quadrilateral shape after Angle and excess material cutting. No maximum size limit board processing. This device can easily finish big round R(10-20) box or trim
Door sheet forming time About 70second
Material Steel sheet 0.8~3.0mm
Aluminum sheet 1.2~3.0mm
Stainless steel sheet 0.8~2.0mm
Sheet size Min size/length*width(mm) 150X150
Max. Size No limit
Turn-over height About 15~20times thickness of sheet
Mould configuration Rotating formiug mould, molding module, shear blades
Power source 380V 50Hz
Power 3Kw
Machine size(length*width*height) 1470× 1480× 1690
Yantai Kaiyuan Metals and Machinery Co., Ltd is a professional company that combines producing with selling extinguisher, fire fighting apparatus. Our company has a lot of technologists who are expert in designing and producing fire fighting apparatus and a professional foreign trade marketing team. Since our company established in 1997, we have strived for survival on the basis of quality. Our object is to meet with every customers needs.
Our products are sold to many countries and regions in America and Europe In the recent years, we designed and developed some fire fighting apparatus, such as knitter for water band, stretcher for fire extinguisher, welding machine, fire door production line and painting production line and so on. All of these products achieved CE certification and sold to Europe. Our company also design and produce fire fighting apparatus according to customers needs and train professional staff.
We wish to create bright future through cooperation with friends in all over the world.
