Product Description
1. The Chart of Process Flow
Decoiling--active feeding--roll forming--measuring length--cutting to length--product to stand
2. Main Equipment
Decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system, electric system.
3. Technical Parameters
1) Manual inner tight decoiler(optional)
A. Coil inner diameter: 450mm-700mm
B. Max width of coiling: 1200mm
C. Max weight of loading: 6000kg
Automatic inner tight decoiler(optional)
A. Coil inner diameter: 450mm-700mm
B. Max width of coiling: 1200mm
C. Max weight of loading: 6000kg
D. Motor power: 3kw
E. Hydraulic station power: 3kw
F. Oil cylinder inner diamter: 120mm
G. Working press: 10Mpa

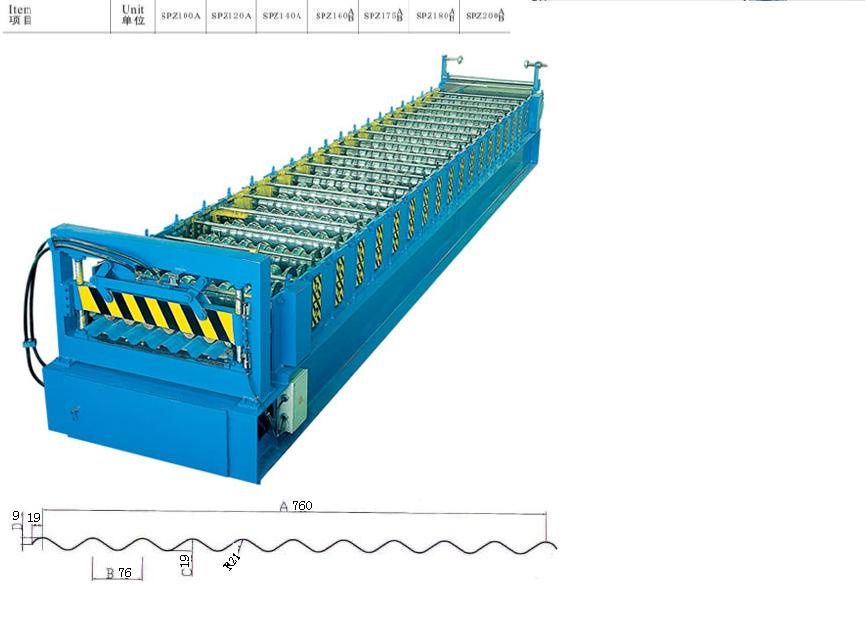

2) Main forming machine
A. Number of forming steps: 9
B. Material of shaft: 45# steel adjustable treatment. Outer diameter: 70mm
C. Material of roller: 45# steel
D. Main motor power: 3kw
E. Forming speed: 5-10m/min
F. Stand: 350# steel welding
G. The plating chromium of roller surface: 0.05mm
3) Hydraulic cutter
A. Material of blade: Cr12 with quenched treatment60-62
B. Cutting system: Adopt advanced hydraulic drive, automatic cut after forming, no distortion, no waste, high safe factor(main motor stops and then cuts)
4. Electrical System
1) Screen display: Text
2) The main computer (PLC): Tai Da DVP14ES
5. Hydraulic System
1) Adopting advanced hydraulic system of Tai Wan
2) Power: 4KW
6. The whole machine consist of: Main forming machine: 1 set; Hydraulic system: 1 set; Electrical system: 1 set.
