Corrugated Profile Roof Tile Roll Forming Machine (XF13-65-1404)

Prod Model:	XF13-65-1404
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue
Usage:	Roof
Control System:	PLC
Production:	8-10m/Min
Power(W):	4+4kw
Voltage:	380V 50Hz 3phases
Dimension(L*W*H):	6.8*1.35*1.51m
Weight:	About 3.6t
Width Of The Plate:	1200mm
After-Sales Service Provided:	Engineers Available to Service Machinery Overseas
Type:	Tile Forming Machine
Forging Forming Method:	Roll Forming Machine

Product Description

Introducation

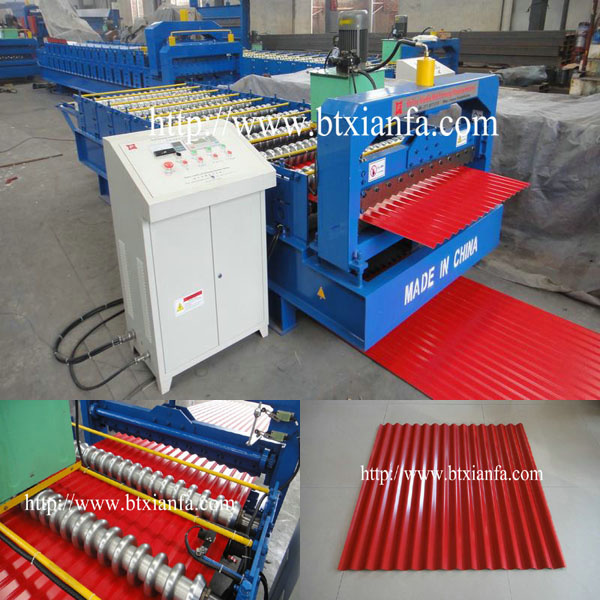

Machine consist of uncoiler and its base, coil sheet guiding equipment, roll forming system, post cutting equipment, pressing equipment, post-cutting system, hydraulic station, controlling system, supporter table.

Machine Feature:

1. Precise forming
2. High-solid forming stand guarantees the goods and uniform high quality of final productd
3. The operation automatically minimizes the tolerance of cutting length

Products Feature:

1. A stylish and attractive design, giving the apperance of a traditional roof tile.
2. Resistant to frost, heat, hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.
3. The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa, civil construction etc.


Components and Technical Specification


1. Manual Uncoiler

Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity: 5T
Inner diameter: 500-508mm

2. Feeding Table

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

3. Hydraulic System

Power: 4kw, Hydraulic oil: 40#
Hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

4. Computer Control Cabinet

The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: Automatic and manual one. The system is easy to operate and use.
PLC: EURA

5. Cutting System:

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12, quenching treatment

6. Output Table

It adopts welded steel and supported roller to transmit the products, which is used to collect the finished products.

Main Roll Forming Machine:

Material of rollers: 45# steel, roller surfaces polishing, chrome hard plating, The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.


Corrugated Profile Roof Tile Forming Machine

1. ISO/CE certificate
2. Solid shaft
3. PLC control, eura or Panasonic
4. Exported to Nigeria & Africa
5. Low energy cost
