| Prod Model: |
AF-R836 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Corrugated Roof Panel Roll Forming Machinery |
| Machine Color: |
as Require |
| Machine Size: |
8m*1.2m*1.2m |
| Machine Weight: |
3tons |
| Delivery Time: |
25days |
| Size Of Container: |
40gp |
| Life Time: |
10year |
| Control System: |
PLC |
| Cutting Type: |
Hydraulic |
| Driven Type: |
Chain |
| Forging Forming Method: |
Mold Forging |
Product Description
Corrugated roof panel roll forming machinery
Roof forming machine, color steel roll forming machine, roof sheet roll forming machine, roof and panel machine, corrguated roof sheet machine
1. Process flow
Decoiling--feeding--roll forming----cutting to length--output table
Technical Description
Manual decoiler
Coil inner diameter: 450-750mm
Coil width: 1250mm
Coil load: 5 ton
Forming device
Shaft material: 45#steel
Roller material: #45 steel
11 pairs of forming steps
Transmission: Chain drive
Forming speed: 8-10m/min
Main motor power: 3kw
Voltage: 380V, 50Hz

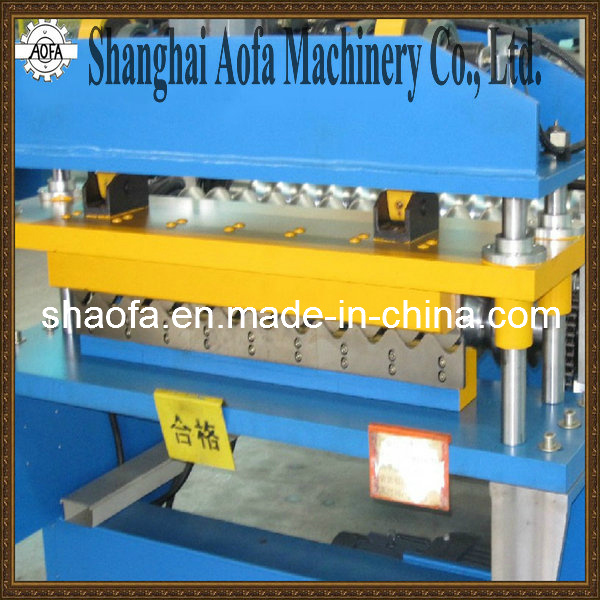

Hydraulic cutting device
Hydraulic station: 1 set
Hydraulic cutting
With hydraulic station, motor 3kw
Cutting press: 20ton
Blade, puching and mold material: G12 steel with quenched treated with 60-62° C
Cutting system: Advanced hydraulic drive, automatic cutting afater forming, no distorting or wasting, high level safety factor.
Controlling device: PLC
We can also design and manufacture according to customer's requirement.
Contact person: Arno Hao
Tel: 86-21-67298619
Mobile: 86-18717894416
|
Machine components |
|
Items |
Qty. |
|
Decoiler |
1set |
|
Forming device |
1set |
|
Cutting device |
1set |
|
Control system |
1set |
|
Oil pump |
1set |
We mainly supply high quality roll forming machine. We have achieved good performance up to now, sincerely welcome businessmen overseas to establish a long-term cooperation to create a beautiful tomorrow!
Our factory mainly produce all kinds of roll forming machine, for example, rofo sheet roll forming machine, c purlin roll forming machine, glazed tile roll forming machine, deck floor roll forming machine, sandwich panel production line and so on.
Our factory is established form 2010, up to now, we have sold machines to Canada, Bolivia, South Africa, Dubai, India, Russia and many other countries,
Hope we can cooperate happily
