Creasing and Die-Cutting Machine 1100 - 1200
| Price: |
US $ 5000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
MJRJ-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: 750*560mm ~~ 3000*1600mm Or More: |
Speed: 10-30time/Min. |
| Imprinting Type: |
Platen |
| Placing Form Of Template: |
Horizontal |
| Die Cutting Tool: |
Steel Blade |
| Automatic Grade: |
Semi-Automatic |
| Application: |
Earthquake Products |
Product Description
(Keywords: Creasing and Die-cutting machine, Paperboard Creasing and Die-cutting machine, plastic creasing and die-cutting machine)

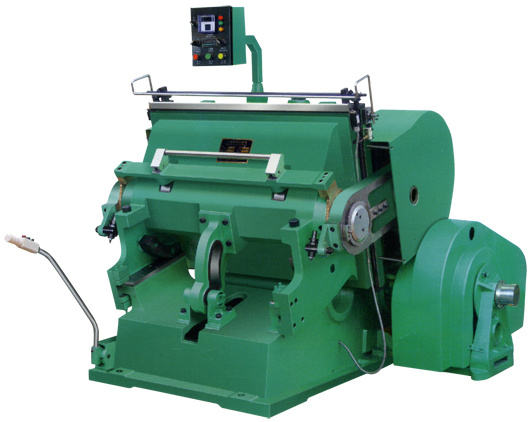

MJRJ-3 Series Creasing and Diecutting machine 1100 - 1200
Introduction
MJRJ-3 Series Creasing and Diecutting machine is the special equipment for die cutting and creasing many different kind sheet shape materials. Such as hard paperboard, corrugated paperboard, plastic, leather and so on. It is widely used in printing, packing and decorating industry. Our companie's product with its high-quality and competitive price are popular by our customers all over the world.
Characteristics
1. Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing.
2. Flywheel is with big moment of force and large pressure.
3. High strength due to one piece casting by using top-ranking material for machine body.
4. Single plate electromagnetic clutch is sensitive and reliable.
5. Have functions of single cutting and creasing, continuous cutting and creasing and time-lapse opening, time-lapse range is adjustable.
6. Operation height is reasonable designed, the opening corner of the moving-bed is big.
7. Focus lubrication system makes the machine can lubricate very well, and reduce the abrasion.
8. Safety system is reliable.
Technological Parameters
| Model | MJRJ-3-1100 | MJRJ-3-1200 |
| Max. die-cutting and creasing area | 1100*800mm | 1200*830mm |
| Working speed | 20±2 strokes/min | 18±2 strokes/min |
| Max. Rule length | <30m | <35m |
| Power | 5.5kw | 5.5kw |
| Weight | 4500kg | 4800kg |
| Machine Size (L*W*H) | 1900*1780*1700mm | 1920*2000*1800mm |
ROYAL is mainly engaged in the R and D, Design, Produce and Trade of Corrugated Paperboard production machinery and Carton Machinery, Pharmaceutical Equipment, API & Intermediate, Custom Synthesis. We are located in Hangzhou city, Zhejiang Province. Neighboring Shanghai port, Ningbo port, Hangzhou Xiaoshan Int'l Airport and Shanghai Pudong Int'l Airport, our office is 700m from the biggest fast train station in Asia (Hangzhou Dong Station), the transportation and environment are excellent!
We are mainly focus on:
1. Corrugated paperboard machinery, Packing Machinery, Single Facer line, Flexo printing machine, folder gluer, Stitcher, Laminating machine, Rotary Die-cutting machine, Flat Die-cutting machine, Slitting and rewinding machine, Paperboard sheeter, A4 paper production line, and all related spare parts.
2. Pharmaceutical Machinery: Distilled water machine, Reverse Osmosis, Frame filter press, Pure steam Generator, MVR, CIP system, Mixing tank, Mixer machine, Sterilizer, Centrifuge, MEE and so on.
3. API, Pharmaceutical Intermediate, Custom synthesis service.
4. Export agent ---- Specially we have Kunlun bank account for Iran business.
We have two own factory in Hebei Province and Ningbo city, China. We have high quality employee team, we have special engineers, and special operators for export work of machines. We are now cooperated with many special factories who produce good quality machines to fulfill our products library. With good quality products and high efficiency service, and the competitive prices, our products are welcomed by many users. ROYAL is happy to offer the technological service for you all the time.
ROYAL has Import and Export Office in Hangzhou and have established well market channels both domestically and overseas. And we have our Sales branch in Tehran city, Iran, In Amman city, Jordan. ROYAL products are exported to many countries such as USA, Germany, Mexico, Korea, Dominica, Italy, Austrilia, Russia, Iran, Jordan, Sudan, Egypt, Samoa, Vietnam, India, Turkey and so on. Our products are popular in the world market, and enjoy a good reputation from our customers. Based on the Technology, Developed by Innovation, joining hands with friends, ROYAL highly welcomes friends from all over the world to cooperate with us, and share our development and progress together.
ROYAL ---- Your Best Partner In China!
