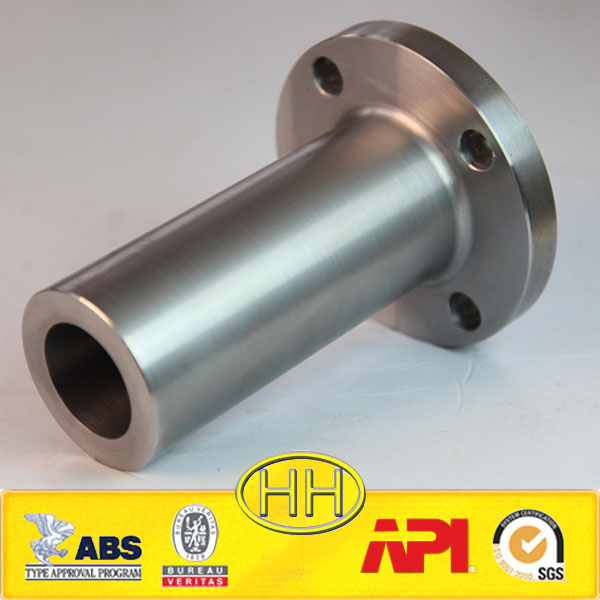

CS Long Neck Flange

Name: CS Long Neck Flange
Brand: china-castingforging.com
SKU: 733487495
Availability: InStock
Rating: 4.3 (76 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Hebei Haihao High Pressure Flange & Pipe Fitting Group Co., Ltd.

Showroom Product Company Profile

Manufacturing Way:	Forging
Standard:	BSW
Material:	CS Ss Alloy Steel

Product Description

Steel WN/SO/BL flange

Other Type: Slip-On, Welding Neck, Blind, Socket Welding, Lap Joint, Threaded and Plate etc.
Pressure Ratings: Class 150, 300, 600, 900, 1500 and2500.
Pressure Ratings: PN 6, PN 10, PN 16, PN 25, PN 40 and PN 64.
Pressure Ratings: JIS 5K, 10K, 16K, and 20K.
Standdard: ANSI, DIN, EN, BS, JIS, AWWA, BS and GB ect
Material: Stainless steel, Carbon steel and Alloy steel etc.
Size: Up to 5000mm
Treatment of Prevent Oxygenizement: Oil, Paint, Galvanization or based the willing of customers
Packing: Wooden case, sea-worthy plywood pallets or as per customers requiremen

item	standard No.	size	PN	Type	Material
1	ANSI B16.5	1/2"--24"	150-2500LBS	BL,SO,SW,LJ,WN,THD	A105, A350LF2, A182 F11A182 F304/F304L,F316/F316L
2	LONG WN	1/2"--24"	150-2500LBS	Long welding-neck	A105, A350LF2,A182 F304/F304L,F316/F316L
3	ANSI B16.47 A(MSS SP-44)	26"--60"	150--900LBS	BL,WN	A105, A350LF2, A694,A182 F304/F304L,F316/F316L
4	BS3293-1960 STANDARD	26"--48"	150-600LBS	SO,WN	A105, A350LF2,A182 F304/F304L,F316/F316L
5	ANSI B16.47 B(API605)	26"--60"	75--900LBS	BL,WN	A105, A350LF2,A182 F304/F304L,F316/F316L
6	ASMEB16.36 STANDARD	1"--24"	300--2500LBS	SO,WN,THD	A105, A350LF2,A182 F304/F304L,F316/F316L
7	AWWA C207	4"--144"	Class B,D,E,F T/1	PL	A105,A181 A36, A516Gr.60,65,70
8	EN1092-1:20002 STANDARD	DN10-4000	PN2.5,6,10,16, 25,40,63,100	TYPE01,02,04,05,11, 12,13,21,32,33,34	EN10025(S235JRG2), EN10222-2AND3 (P245GH ANDP280GH), EN10222-5(1.4303,1.4306, 1.4307,1.4401,1.4404, 1.4435,1.4541,1.4571) A105/C21/1.0432 C22.8/ P150GH/1.0460
9	BS4504 SEC.3.1/1989 STANDARD	NS15-2000	PN2.5,6,10,16, 25,40	CODE101,102,104,105,111, 112,113,121,132,133,134	BS970 070M20 BS4360 GR.43A BS1503-164 GR.490 BS 1503-224 GR.410 BS 1503-304S11 304S31 321S31 316S31 316S11
10	BS10-1962 STANDARD	NB10-3000	TABLE D/ E /F/H/J	SO THD BL WN	BS1501-161 GR.B AND C BS1633 GR.B BS 1503-240 GR.240 BS 1503-620 BS3604
11	ISO 7005-1 STANDARD	DN10-4000	PN2.5,6,10,16,20, 25,40,50,110,150, 260,420	TYPE01,02,03,04,05,11, 12,13,14,15,21,32,33,34	ISO2604-1 F8 F9 F13 F18 F22 F49 F62 F46 F59
12	NFE29203 STANDARD	DN10-600	PN2.5,6,10,16,20, 25,40,50,100,150, 250,420	TYPE01,02,03,04,05,11,12, 13,14,15,21,32,33,34,35	NFE29204 BF 42 BF42N BF48 BF48N
13	JIS B2220 STANDARD	10A-1500A	PN5K,10K,16K, 20K,30K	SOP(PL) SOH(SO A B C ) WN	JIS G3101 SS41 JIS G3201 SF40A(S20C) AND SF45A(S25C) JIS G3202 SFVC1 AND SFVC 2A
14	DIN STANDARD	DN10-4000	PN2.5,6,10,16,25, 40,64,100,160	SO,BL,PL,WN,LOOSE,THD	RST37.2/1.0038/ DIN17100C22.8/1.0460 A105/C21/1.0432 1.430 1.4307 1.4401 1.4404 1.4541 1.4571/DIN17440

Hebei Haihao High Pressure Flange & Pipe Fitting Group Co., Ltd. is established in 1982, covers an area of 78, 000 square meters with the building area of 55, 000 square meters. We have fixed assets of 30 million Yuan. Situated in Industrial Area of Mengcun County, the Home of Elbow and Pipe Fitting of China, With Cangzhou Port in theeast and Beijing and Tianjin cities in the north, we enjoy a convenient transportation.
We guaranteed products at a reasonable price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon. For more information, please contact us directly.
