| Prod Model: |
WF-JF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Raw Material: |
Ductile Iron, Cast Iron, Qt500 |
| Size: |
Dn100-1000mm |
| Tchincs: |
Casting |
| Brand Name: |
Shengao,OEM |
| Factory: |
Over 15 Years'experience |
| Use: |
Construction and Public Use |
| Shape: |
Round,Square,etc. |
| Quality Control: |
100% Inspected |
| Shipping Port: |
Qingdao Port |
| Casting: |
Sand Casting Investment Casting Precision Casting |
| Casting Metal: |
Cast Iron |
| Casting Form Material: |
Metal |
| Casting Method: |
Sand Casting |
| Casting Form Usage Count: |
Permanent |
Product Description

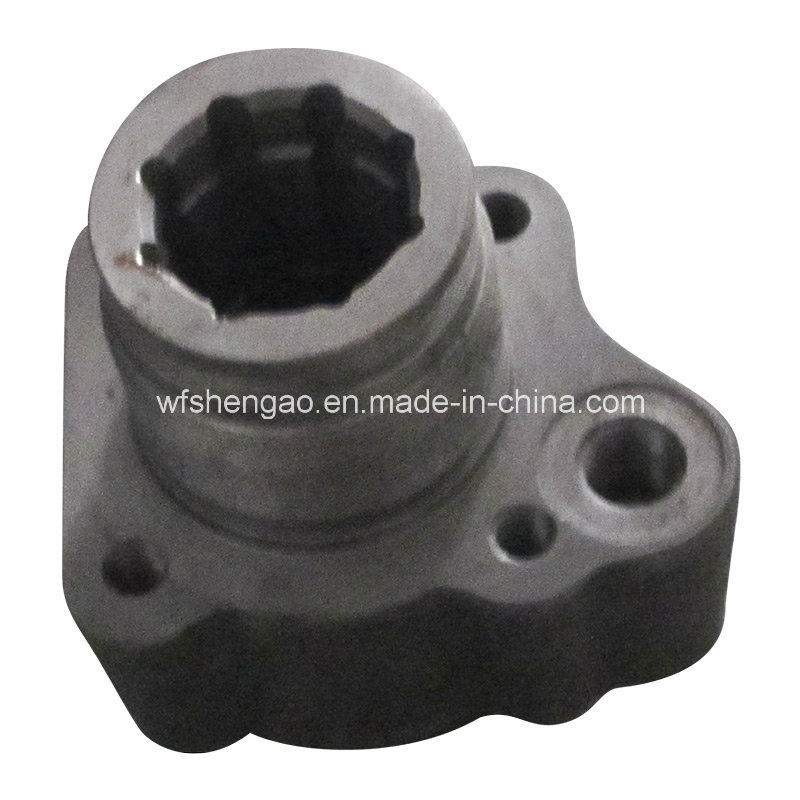

Custom Carbon Steel Casting with Investment Casting
ISO9001, 2000 Certificate
OEM is acceptable.
Good quality and low price
Contace us without hesitation
Custom Carbon Steel Casting with Investment Casting
* Material: Ductile Iron, Carbon Steel, Grey iron
* Sand and investment casting(precision casting)are all avalable
* Software for drawing: PRO/E, Auto CAD, UG, CAD, PAF and Solidwork 2008 flow analysis
* Further machining work: Turning and cutting, milling, grinding, drilling, reaming and threading
* Euipment: Many CNC center and lathes.
* Surface finish process: Shot blast, chromate plating, power coated and anodizing
* OEM/ODM parts range: Auto parts, electronic parts, furniture parts, home appliance and other industrial uses
* Process: CAD surface, matel processing, surface plating, QC testing and packaging
* Made according to customers' drawing, sepecification or/ and samples
* Castng capacity: 200 tons to 500tons/per month
1) We are ISO9001: 2008 certified, BSI Kitemarked, TUV certified, SGS certified and NF certified.
2) OEM service is available.
3) Material: Stainless steel, carbon steel, alloy steel, heat resistant steel etc.
4) Standard: ANSI, ASTM, JIS, DIN, GB
5) Weight: 0.05kg to 60 kg
6) Package:
Packing terms is with foam inner packing, carton box outside and iron box to protect it finally.
Packing dimension would be according to the products dimension and quantity.
About Us:
We mainly undertake the casting parts,machined parts and other products.Our Import and Export Department have many years experiences of foreign trade,products are mainly exported to the United States,Denmark,Italy,Russia,Australia etc.
1. Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co.,Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
2. Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
3. Q: Do you provide customized forging products?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
4. Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
Quality First,Pric Best,Service Foremost !
We assure you of our best services at all times !
| Item |
| Material | Technical Process |
| 1 | Ductile iron
castings | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03;
DIN-GGG40,GGG50,GGG60,GGG70;
JIS-FCD40,FCD50,FCD60,FCD70;
BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2;
NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2; | Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 2 | Grey iron
castings | ASTM A48-No.20,25,30,35,40,45,50;
ASTM A126-Class A, Class B, Class C;
DIN-GG10,GG15,GG20,GG25,GG30,GG35;
JIS-FC10,FC15,FC20,FC25,FC30,FC35;
BS-Grade 150,180,220,260,300,350;
NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 3 | Carbon steel
castings | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC;
ASTM-415-205, 450-240, 485-275, 80-40;
DIN- GS-C25(1.0619), GS-38(1.0416),
GS-45(1.0446), GS-52(1.0552), GS-60(1.0558);
JIS-SC410, SC450, SC480, SCC5;
BS-A1, A2, A5;
NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 4 | Stainless steel
castings | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304;
DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001)
G-X20Cr14(1.4027), 1.4408;
JIS-SCS13, SCS 1, SCS 2, SCS 14A;
BS-304C15, 410C21, 420C29, 316, 304;
NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
| 5 | Alloy steel
castings | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120);
GS-37MnSi5(1.5122), GS-34CrMo4(1.7220);
JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3;
ASTM-LCC
UNS-J02505, J13048
NF-G20M6, G35CrMo4 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
