| Prod Model: |
according to the customer's demand |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
Good |
| Price: |
Reasonable |
| Color: |
as Requests |
| Weight: |
0.5kg-4ton |
| Dimension: |
as Per Customers' Requests |
| Type: |
Clay Wet Sand |
Product Description

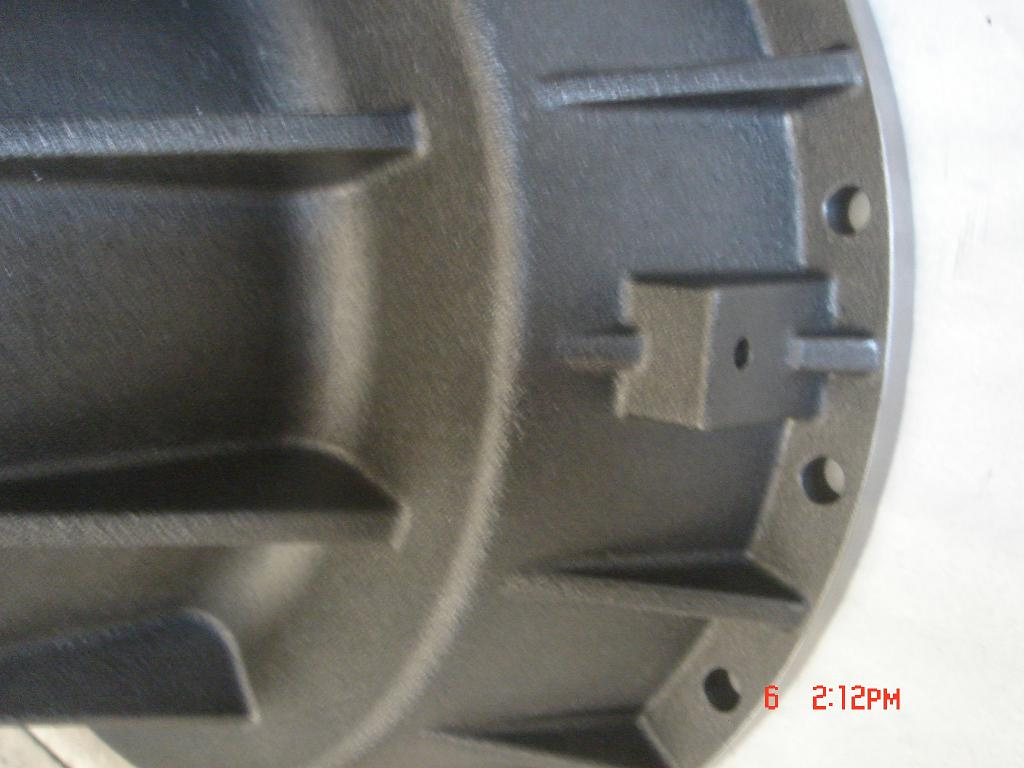

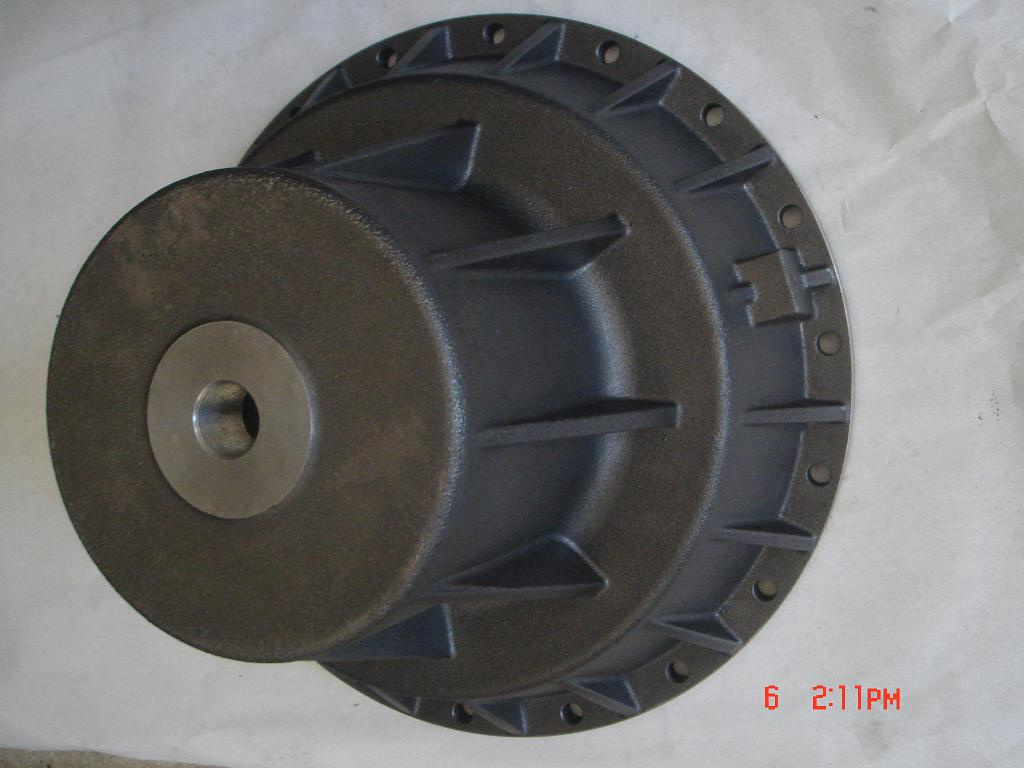

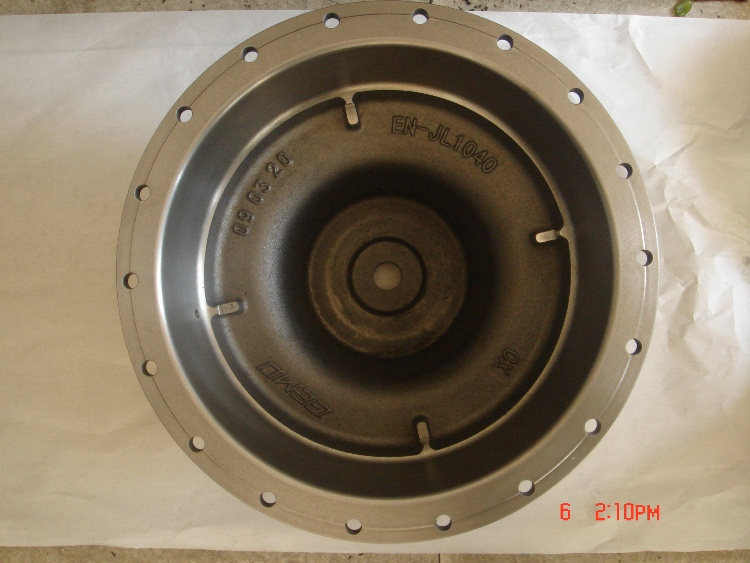

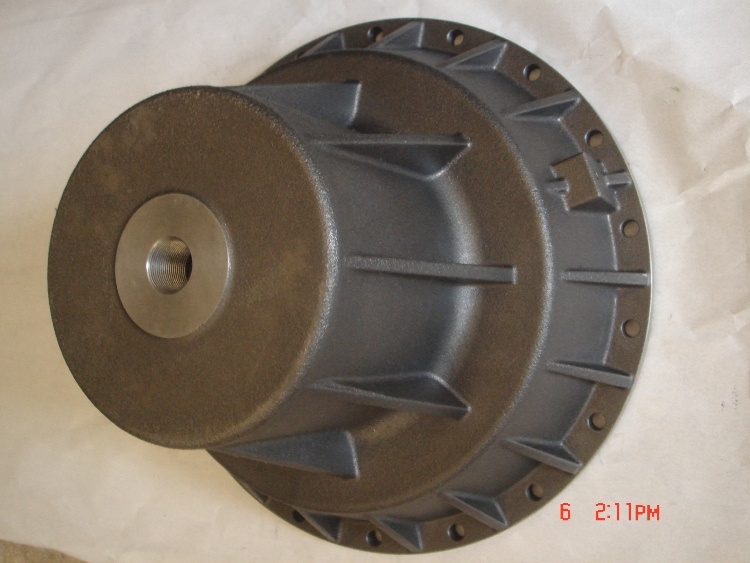

Custom-Made Cast Iron Sand Casting Parts
Material ductile cast iron, gray cast iron
Process sand casting
Standard JIS DIN ASTM GB
Min Tolerance Green Sand Sodium Silicate Sand Resin Sand
Machine Lathe, CNC, Drilling Machine, Milling Machine, Boring Machine, Planning machine
Weight Rang: 0.1-6000kg
Surface treatment: Painting, spraying, galvanization
| Item | Description | Material | Technical Process |
| 1 | Ductile iron castings | ASTM A 536-Gr.60-40-18, 65-45-12 | Green-sand moulding |
| DIN-GGG40, GGG50, GGG60, GGG70 | Resin-sand moulding |
| JIS-FCD40, FCD50, FCD60, FCD70 | Lost foam cast |
| BS-Gr370-17,Gr420-12, Gr500-7 | Shell-core cast |
| NF-FGS370-12, FGS400-12, FGS500-7 | Electric-furnace smelting |
| 2 | Grey iron castings | ASTM A48-No.20,25,30,35,40,45 | Green-sand moulding |
| ASTM A126-Class A, Class B, Class C | Resin-sand moulding |
| DIN-GG10, GG15, GG20, GG25, GG30 | Lost foam cast |
| JIS-FC10, FC15, FC20, FC25, FC30, FC35 | Shell-core cast |
| BS-Grade 150, 180, 220, 260, 300, 350 | Electric-furnace smelting |
| NF-FGL150, FGL200, FGL250, FGL300 |
|
| 3 | Carbon steel castings | ASTM A216-Cr. WCB. Cr. WCA, Gr. WCC | Soluble glass sand moulding |
| ASTM-415-205, 450-240, 485-275, 80-40 | Resin-sand moulding |
| DIN-GS-C25, GS-38, GS-45, GS-52 | Lost wax casting |
| JIS-SC410, SC450, SC480,SCC5 | Lost foam cast |
| NF-GE230, GE280, GE320, GE370 | Shell-core cast |
| Electric –furnace smelting |
| 4 | Stainless steel castings | ASTM-CF-8M,CF-8, CA-15, CA-40,316, | Soluble glass sand moulding |
| DIN-G-X6 CrNi18 G-X7Cr13 | Resin-sand moulding |
| JIS-SCS13, SCS1, SCS 2, SCS 14A | Lost wax casting |
| BS-304 C15, 410C21, 420C29, 316 | Lost foam cast |
| NF-Z6CND18.12M, Z6CN18.10M,Z12C13 | Shell-core cast |
| Electric –furnace smelting |
| 5 | Alloy steel castings | DIN-GS-40Mn5, GS-20Mn5, GS-37MnSi5 | Soluble glass sand moulding |
| JIS-SCMn3, SCW480, SCSiMn2,SCCrM3 | Resin-sand moulding |
| ASTM-LCC | Lost wax casting |
| UNS-J02505, J13048 | Lost foam cast |
| NF-G20M6, G35CrMo4 | Shell-core cast |
| Electric –furnace smelting |
We-Baoding Xinlongtongda company is a professional manufacturer for sand casting, investment
Casting stainless steel, forging, die-casting accessory, micro casting accessory, metal casting accessory, plastic machine parts, CNC machining and other various mechanical accessories and relative equipments.
Manily products include investment casting stainless steel, sand casting iron/steel, die casting aluminum part, lost wax casting, forging auto parts, stamping machinery part.
Our products included shaft, gear, gear shaft, worm gear, welding shaft seat, hub, bracket, non-standard nut, lashing strap, webbing sling, hydraulic jack, hand tools and so on
We have the advanced equipments for foundry, 66 sets of metal cutting machineries, 35 sets CNC, and 2 sets of machining centers.
We gained quality certificate ISO9001, CE, SGS certificates, and have full sets of inspection instruments. With high quality and reasonable prices, all of our products sell well in the overseas market.
Please feel free to contact us for more details if you're interested.
