| Prod Model: |
JTY20140630003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Define: |

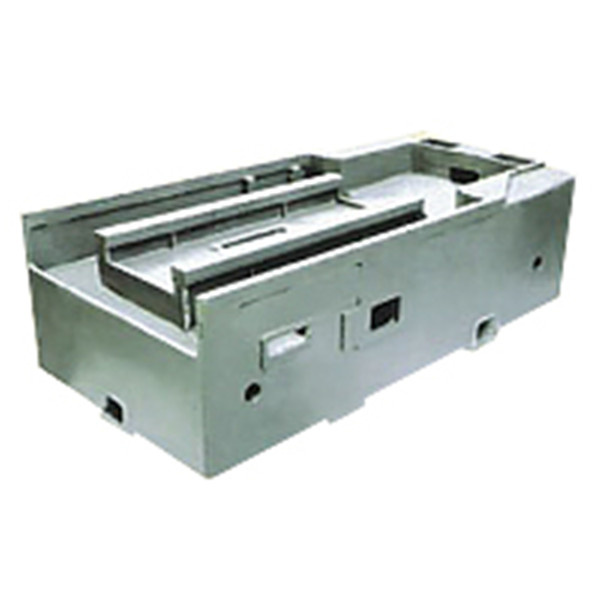

Custom Resin Sand Iron Casting by Ductile Iron |
| Material Quality: |
Ht(200-350) / Qt(400-700) / Alloy Iron |
| Application Fields: |
Railway and Farm Facilities, Mechanical Equipments |
| Process: |
Resin Sand Casting |
| Foundry Experience: |
12 Years |
| Monthly Output: |
2, 000 Mt |
| Certification: |
ISO, SGS, Upc |
| Unit Weight: |
50kg - 5, 000kg |
| Moulding Type: |
Metal or Wooden(It Depends on The Product) |
| Surface Treatment: |
Spray Coated, Epoxy, Painted, etc. |
| Type: |
Resin Sand |
Product Description
1. Brief introduction of our company:
Xianlong Group consists of Henan Golden Sun Foundry Co., Ltd. And Henan Sida Xianlong Industry Co., Ltd. Golden Sun is a casting iron manufacturer with 12
Years experience. Now our annual production reaches up to 35, 000 MT and the
Significant spare capacity is large. The direct exports accounted for 60%.
2. Advantages of our company:
1.12 years foundry experience;
2. ASTM E446 ≤ 2;
3. Various categories and small bitches production are suit for us;
4. Our monthly capacity is 1000MT and the spare capacity is large;
5. We have many excellent clients;
6. Perfect material testing process and quality control system;
7. Our castings are out of shrinks, cracks, crush, push-up, etc. The approved rate reaches up to 99.5%;
3. Our equipments:
A. The main production equipments:
5T/h and 10T/h resin sand production line;
2T/h and 1.5T/h medium frequency induction furnace;
2000X1000 annealing furnace; 2200X4000 annealing furnace;
3720 hanging hook shot blast cleaning equipment;
5T and 10T, 16T single beam type crane;
T PX6111B/2 type horizontal milling and boring machine a, BXMQ20 16E-2 planer milling machine,
Gantry milling machine, end milling machine.
B. The main inspection equipments:
5500II-OES direct-reading spectrograph made in Japan;
XJD-2000 metallographic microscope;
HLD-11D hardness tester; HB-3000 desktop Brinell hardness tester;
W3000 thermometric indicator;
Universal testing machine;
QCR1000 carbon and silicon analyzer;
CJE-12/220 magnetic powder flaw detector;
TS-2008E digital ultrasonic flaw detector;
SK-2-13 energy saving rapid warming tube horizontal furnace;
Complete sand laboratory and physical&chemical inspection laboratory.
4. Certifications:
We have obtained the ISO9001: 2008 / OHSAS18000 / ISO14000 / ISO/TS16949: 2002 /
The EXPORT AND IMPORT RIGHT.
5. Part of our Clients:
M&H Valve Company, Doosan S. Korea, Goizper Spain, Westinghouse USA, Caterpillar USA, Bitzer Germany,
General Electric USA, A. O. Smith. Etc.
---Our customer service
1. Your inquiry related to our products or prices will be replied ASAP
2. According to customers' special refractory requests
3. Manufacture with signification capacity, ensure the fast production cycle after confirming the order
4. Protection of information for all of our customers
---More aspects you may care
1. Payment Terms: T/T: 30% advanced, 70% balanced to pay after shipment. L/C: Irrevocable 100% L/C as sight.
2. Delivery Time: In 45 days after getting the deposit (including the pattern making time).
3. MOQ: 1 pieces and welcome big order.
4. Available Port: Qingdao/Tianjin/Shanghai
5. Samples: Sample can be provided according to customer's requirements or after getting customer's drawings.
We can afford the sample cost.
6. Packing: Standard strong wooden crate, also depends on the customer's requirements.
7. Shipping Terms: Sea transportation, Air transportation, DHL, EMS or other client needs.
Tel: 86-373-7729709
Fax: 86-373-7729707
Mobile: 86-15083139232
Country
Material |
China |
Germany |
United
States |
Japan |
Gray iron
|
- |
GG40 |
NO.60 |
- |
|
HT350 |
GG35 |
NO.50 |
FC350 |
|
HT300 |
GG30 |
NO.45 |
FC300 |
|
HT250 |
GG25 |
NO.35 |
FC250 |
|
HT200 |
GG20 |
NO.30 |
FC200 |
Ductile iron
|
QT400-18 |
GGG40 |
60-40-18 |
FCD400 |
|
QT450-10 |
- |
65-45-12 |
FCD450 |
|
QT500-7 |
GGG50 |
70-50-05 |
FCD500 |
|
QT600-3 |
GGG60 |
80-60-03 |
FCD600 |
|
QT700-2 |
GGG70 |
100-70-03 |
FCD700 |
Henan Golden Sun Foundry Co., Ltd. In Henan Province is part of Xianlong Group. We have three foundries, with a construction area of 35, 000 square meters, which we invested 150 million yuan. We have 380 employees, including 22 engineers or technicians, more than 50 intermediate technicians. We are equipped with the new technology of casting products, new processes, new materials research, application and promotion of capacity. We own several technology patents. We are a large modern foundry enterprise with the ability of production and research.
Our company specializes in production of various grades of gray iron (HT200-350), ductile iron (QT400-700), alloy cast iron and resin sand cast iron. Casting single weight 100kgs to 5 tons, with an annual capacity of 20, 000 tons. The main products are machine castings, valve castings, large generator castings, gear castings, pump castings, heavy-duty auto parts castings, machinery castings, the casting of wind power and other general machinery parts castings and so on. Our company upholds quality first belief, sincerely treat our customers. We are selling our products at home and abroad, of which 40% of the products sold in the United States, Japan, Germany, Italy, Spain and other places.
The company has perfect casting and production equipment, machining equipment and complete quality assurance system. We have a sand laboratory, chemical analysis laboratory and mechanical properties testing equipment. In material terms, by using the smelting furnace technology of synthetic cast iron cover package ball technology, cast iron thermal analysis and spectroscopic techniques, we ensure that the casting material to meet international standards and customer requirements; By pouring clay pipes technology, insulation risk port process, cast iron filter technology, to control the baked temperature, control of pouring temperature and pouring time, and improve the molding process such as strict operating procedures to ensure the quality of castings.
In March 2010, we introduced the industry leading level of the "Huazhu CAE casting process analysis software system" to analyze and optimization of casting processes, which improved product quality, shorten the trial period to win the praise of customers, and created significant economic benefits for the company.
The ERP software is installed in September 2011 to improve the enterprise's management level, optimize the mode of operation of the enterprise, and enterprise information management.
Main products:
1. Machine tool castings, valve castings, gear casting, casting hydraulic pumps, wind power castings, machinery castings and other general machinery parts and other resin sand cast iron.
2. Casting a single contract focuses on more than 100 kilograms of various types of gray iron, ductile iron, alloy cast iron castings.
