| Prod Model: |
WF-JF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Shandong(Mainland) |
| Standard Or Nonstandard: |
Nonstandard |
| Castig Type: |
Silica Sol Casting, Precision Casting |
| Qualiy Control: |
Professional QC Stuff, Spectrograph |
| Unique: |
China Golden Supplier |
| Quality Control: |
Qingdao Port |
| Brand Name: |
Customized |
| Delivery: |
Within 20 Days After Receiving Last Confirm Info. |
| Advantages: |
Delivery on Time, According to The Demand for Mat |
| Supply: |
Drawing Design |
| Type: |
Clay Dry Sand |
| Application: |
Fitness Equipment |
Product Description

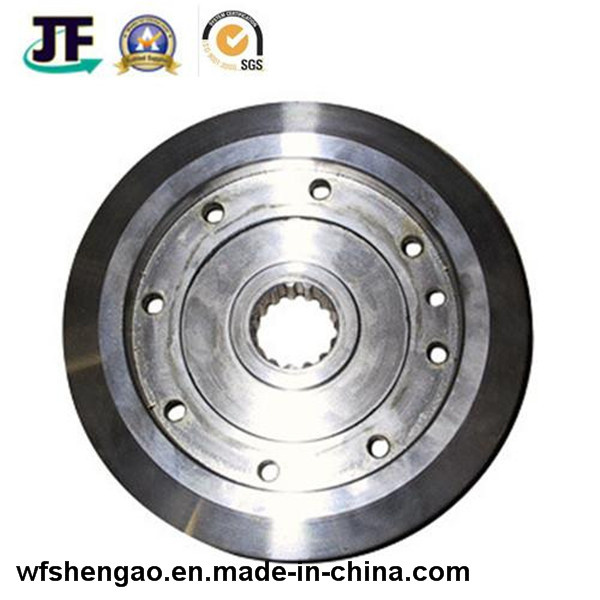

Custom Sand Casting Flywheel/Flywheel Fitness for Gym Exercise Bike
Characteristics of our Flywheel:
1. Material: Cast gray iron, ductile iron.
2. Shape: Round, square, rectangle and triangle.
3. Diameter: From 200mm to 1200mm.
4. Weight: From 7kg to 154kg or according to customers\' requirment
5. Packing: In wooden pallet with plastic layer
6. Annual output: 10, 000 tons
7. Coating: Black bitumen or Coating as per customers\' requirement
8. Use: Municipal engineering, Traffic, pavement, electronics, telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.
1. Ductile Iron Castings:
Molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0.5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15, EN-GJL-200/DIN 1691-GG20, EN-GJL-250/DIN1691-GG25
, EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949
Production capacity:
1. Casting classification: Sand casting; Precision casting; Vacuum process casting etc.
2. Gray iron, ductile iron, stainless steel, carbon steel, alloy steel, etc.
3. Adoption standard: BS, DIN, ASTM GB etc.
4. Weight range: 0.5~5000kg.
5. Producing capacity: 2, 000 tons per month.
6. Main application: Metallurgy; Machinery; Plastics; Rubber; Pharmaceutical;
Textiles; Mining; Paper-making; Packaging.
7. Main equipments: Furnaces; Heat treatment furnaces; Direct-reading spectrometer; Shot -blasting equipments, etc.
8. Surface treatment: Polishing, plating, shot blasting, heat treatment, etc
9. Inspection and test: Foundry in home, third part inspection, Material report, UT, MT, RT, and PT, etc...
10. Packing and shipping: Stand export packing; 20day make modul & sample; Delivery time against your quantity.
11. Casting service: Your logo, character, trade name, number etc can be casted on the surface clearly.
Packgage: Custom medical precision parts high demand parts precision machining hardware
Suitable for sea and air transportation or as required
？ Molding process----Sand Casting
？ Material:---- Carbon steel Alloy steel,stainless steel Standard:DIN ASTM
？ Possible Heat Treatment----Normalizing, tempering, hardening and tempering
？ Industry involved---- pump&construction&Agricultural& Engineering& Automotive industry........
？ Part Unit Weight range----0.01Kg~100kg
？ Wall thickness requirements----min 2mm
？ Manufacturer certification---- ISO9001 (2000)
Our Features
1..Surface treatment :Electro Zinc Plating Hot deep zinc plating,Electrophoresis,Powder
coating,Painting ,Shoot blasting etc.
2.Heat treatment :Induction furnace for raw material heating.Heat treatment of
continuous quench+temper+carburization available.
3.Machining:CNC machining centers for further machining process.
name | Custom Sand Casting Flywheel for Commercial-grade Gym Exercise Bike |
| material | ductile iron GGG50/7, gray iron |
| standard | EN124/1433/1563 |
| class | A15,B125,C250,D400,E600,F900 |
| shape | Round |
| Size | 600*600,840*840, 850*850 or as per customers' drawing |
| paint | bituminous black |
| advantage | Non-slip and safe, easy installation, easy to clean, excellent anti-pressure and attractive appearance |
| molding | DISA Line |
| process | Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection |
| application | footway, pedestrians, car parks, aircraft pavements |
| certificate | BSI, ISO9001:2000 |
| Strict quality control | Tensile strength: 500Mpa Yield stress : 320Mpa
Elongation rate : 7%
Hardness: HBS170-230
|
| Main products | Manhole covers and grates, Furnace, bases, Machinery parts, cookers, Valve bodies, pipe fittings, Auto parts |
| other information | we can cast and process any type of iron casting products according to customers' drawing or samples |
Q: Why choose Shengao products?
A: We shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized FLYWHEEL?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
If there's anything we can help, please feel free to contact with us.
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
