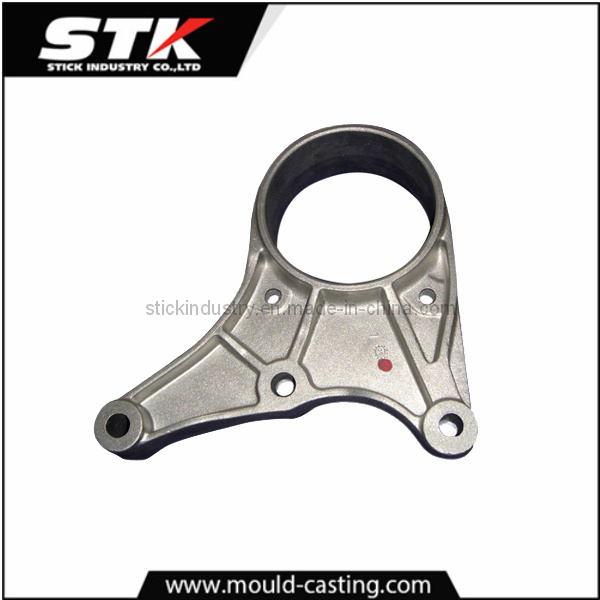

Customed Machinery Chromed Aluminum Pressure Die Casting
| Price: |
US $ 0.5-3/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
300/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
STK-14-AL0082 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight Available: |
0.02 Kg to 10 Kgs |
| Machine Size: |
25-800 Tons |
| Process: |
Cold Chamber Die Casting |
| Material Available: |
ADC10, ADC12, A380, 383,B390 (Yl117), Yl112, Yl104 |
| OEM/ODM: |
Available |
| Applied Software: |
PRO/E, Auto CAD 2000, Solid Work 2001, Caxa, Ug, C |
| Lead-Time: |
2-4 Weeks |
| Services: |
Casting, Machining, Fabrication, Stamping etc |
| Markets: |
Global |
| Served Industry: |
Auto Parts, Medical Appliance, Electronies |
| Material: |
Aluminum Alloy |
| Surface Preparation: |
Raw Finish |
| Application: |
Machinery |
Product Description
Aluminum Die Casting Alloys:u Lightweightu High dimensional stability for complex shapes & thin wallsu Good Corrosion Resistance & Mechanical Propertiesu High Thermal & Electrical Conductivityu High Strength at High TemperaturesAt STK, all Aluminum die casting tooling is designed and built in-house to meet both the customer's and STK's own exacting standards. Production processes for each project are carefully planned, documented and monitored utilizing various statistical process control techniques. Production Capabilities:- Automated equipment can handle high volume casting jobs of up to 100,000 pieces per week
- Manual machines for low volume jobs of as little as 500 pieces per year
- Can cast from 0.02 to 10kgs
- Single to Multiple Cavities
- Most Aluminum die casting alloys are offered such as ADC10, ADC12, A380, 383, B390 (YL117), YL112, YL104
- 10 die casting & gravity casting lines. Each with an individual aluminum furnace which allows us to cast multiple alloys
- 7 sets of Cold Chamber Die Casting Machines. Range from 125 Tons to 800 Tons. And 3 sets of Gravity Machines.
| EQUIPMENT LIST | CAPACITY | QTY |
| COLD CHAMBER DIE CASTING MACHINE | 125 TONS | 2 SETS |
| COLD CHAMBER DIE CASTING MACHINE | 250 TONS | 2 SETS |
| COLD CHAMBER DIE CASTING MACHINE | 350 TONS | 1 SET |
| COLD CHAMBER DIE CASTING MACHINE | 650 TONS | 1 SET |
| COLD CHAMBER DIE CASTING MACHINE | 800 TONS | 1 SET |
| GRAVITY MACHINE | 750mm*630mm | 3 SETS |
| Tooling Leadtime: | 4-7 weeks |
| Tooling Lifetime: | 50000 shots to 500000 shots |
| Weight per unit: | Can cast from 0.02 to 10kgs per piece |
| Tolerance: | +/-0.05mm (secondary machining is available for tight tolerance) |
| Materials Applied: | ADC10,ADC12, A380, 383, B390 (YL117), YL112, YL104 |
| Surface Finish: | Shot blasting
Parting line removal
Chrome Plating
Powder coating
Painting
Anodizing
Passivation
E-coating
T-coating |
Molds Created On-Site- Stick Industry is a full-service mold manufacturing facility
- Stick Industry offers in-house tooling design and production.
- Stick Industry creates a custom mold on-site, then transfers the mold to die-casting area.
- Stick Industry is capable to obtain the relevant data to produce molds and product samples according to the latest3-D solid model and a simple sketch or a sample part.
- Stick Industry uses the most modern multi-axis CNC machine tools for optimum precision and accuracy in tooling.
Our Advantage:l In house tooling design and fabricationl Owned die casting, polishing and plating workshopsl Advanced equipment and excellent R& D Teaml A broad variety of ODM& OEM product rangel Strict quality Control System
State-of-the-Art Cast FinishingThe STK facility offers a complete in-house, independent machining facility with the latest CNC mills and lathes to provide fully machined castings. Our sanding and surface finishing capabilities include:u Short Blastingu Parting Line Removalu Chrome Platingu Powder Coatingu Paintingu Anodizingu Passivationu E-Coatingu T-Coating
We believe that the best way to ensure our success is by providing our customers consistent quality in a timely fashion and at a fair price.

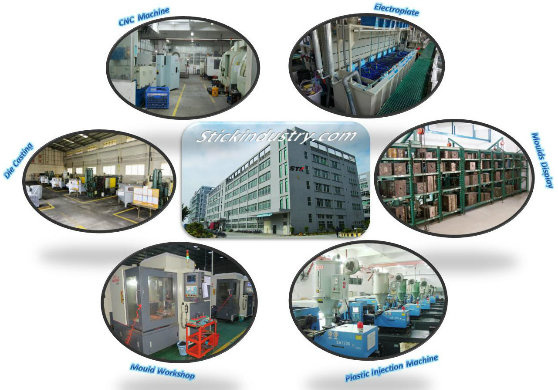

Stick Industry was established in 2004, with factory located in Haicang district, Xiamen city, South East of China. The company has been in business for over 10 years, beginning as a small plastic mold and die casting mold workshop growing into an industrial leading, multi-plant molder with factory size over 10000 square meters and employees about 150.
Conveniently located in the south of China, our ISO 9001-2000 Certified facility economically services markets throughout the world including USA, Russia, Canada, Mexico, Brazil, Germany, Spain, Italy, Poland etc
In addition to outstanding growth in our die cast and injection molding department, our secondary machining operations have continued to grow to meet the varied needs of our customers, including: Drilling, tapping, turning, boring, milling, sanding, shot blasting, vibratory finish, and more.
From concept to final production, from mechanical and electronic design to components sourcing, and from prototype manufacturing to mold design, our engineer team can jump in at any stage to complete your valuable project on time.
Our service include: Moulds, plastic injection molding, Aluminum/Zinc Die casting, CNC Machining, Sheet Metal Forming, Surface Treatments, Assembly and packaging.
We will pay great attention to your any question or enquiry.
If any questions, please feel free to contact us at any time.
Tel: 86-592- 5209671
Fax: 86-592- 5209672
Ms. Anna Lin
Website: Www. Stickindustry. COM / www. Mould-casting. COM
