| Price: | US $ 1666-3666/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 500/Piece |
| Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: | CF-20 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: | Carbon Steel Investment Casting |
| Dimension: | Can Be Customized as Your Requests |
| Brand: | Chifine |
| Country Of Origin: | China |
| Package: | Wooden Case or as Your Requirement |
| Material Available: | Stainless Steel, Carbon Steel, Alloy Steel, etc |
| Model No.: | Machine Part 20 |
| Usage: | Machining Part, Auto Parts, Motor Parts and So on |
| Delivery Time: | 30 Days According to The Order Quantity |
| OEM: | Available |
| Casting Method: | Thermal Gravity Casting |
| Material: | Carbon Steel |
| Surface Preparation: | Sand Blast |
Product Description:
1. Carbon steel investment casting by lost wax investment casting
2. Moulding process: Water glass Precision Casting
3. Material: Carbon steel
4. Possible Heat Treatment: Normalizing, tempering, hardening and tempering
5. Industry involved: Agricultural& Engineering& Automotive industry
6. Part Unit Weight range: 0.01Kg~100kg
7. Wall thickness requirements: Min 2mm
8. Manufacturer certification: ISO9001 (2008)
9. OEM service is available
10. We can do the parts according to the clients' drawings or sample or special requirement.

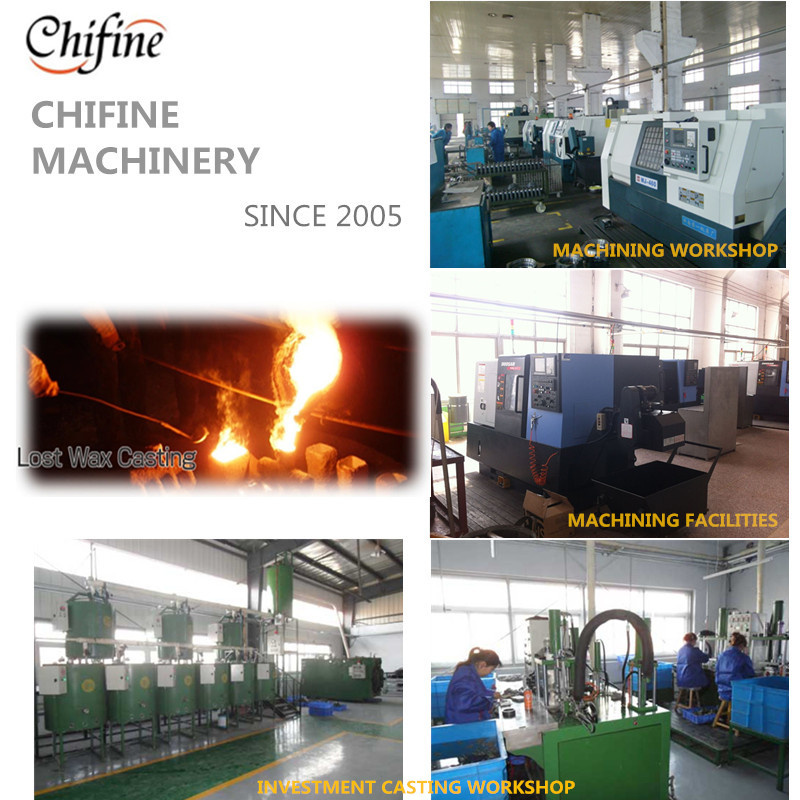

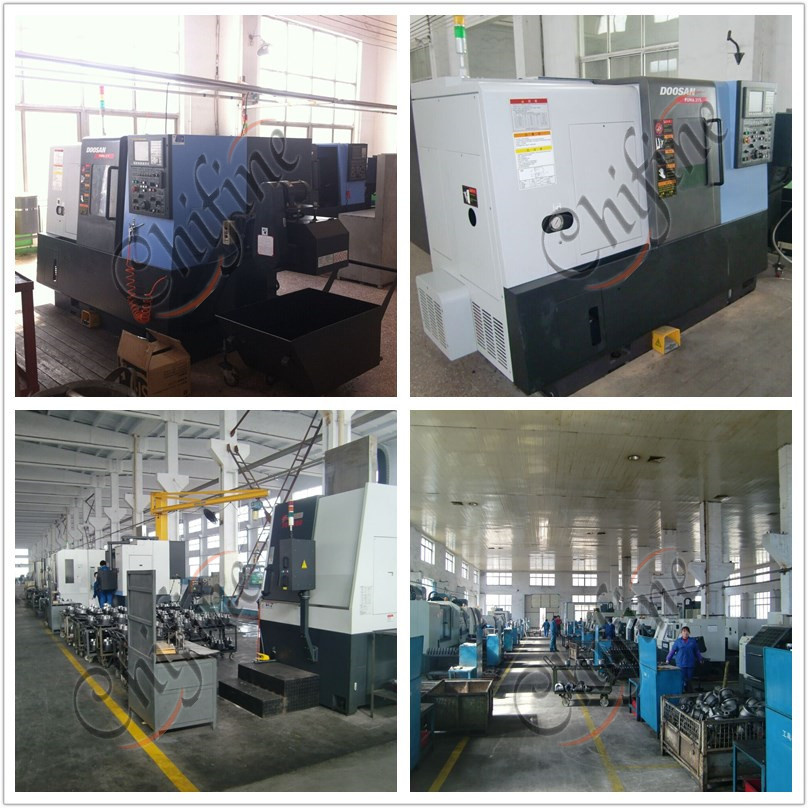

MACHINING FACILITIES
| Description | Material | Technical process |
| Carbon steel casting | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205,450-240,485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446),GS-52(1.0552),GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting |
| Stainless steel casting | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi189(1.4308), G-X7Cr13(1.4001),G-X20Cr14(1.4027),1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
| Alloy steel casting | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4 | Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting |
| Ductile iron casting | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2 | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
| Grey iron casting | ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting |
