| Prod Model: |
CF-11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Stainless Steel |
| Material Available: |
Stainless Steel, Carbon Steel, Alloy Steel,etc |
| Model No.: |
Valve Part 11 |
| Delivery Time: |
30-45 Days as Your Order Quantity |
| OEM: |
Available |
| Usage: |
Automobile, Train,Craft, Doorhandle,Machining Part |
| Brand Name: |
Chifine |
| Package: |
Wooden Case or as Your Requirement |
| Samples: |
Available |
| Inspection: |
by Professional Measuring and Testing Devices |
| Casting Method: |
Thermal Gravity Casting |
| Material: |
Stainless Steel |
| Surface Preparation: |
Sand Blast |
Product Description
Product Description:

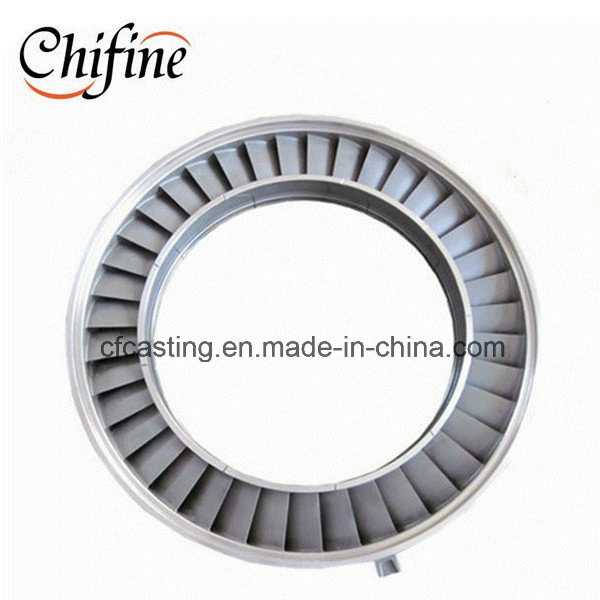

Investment casting stainless steel cf8m casting
1. Material available: stainless steel,carbon steel,alloy steel etc
2. Standard: AISI,BS,DIN,ASTM etc
3. Technique: Silica sol investment casting

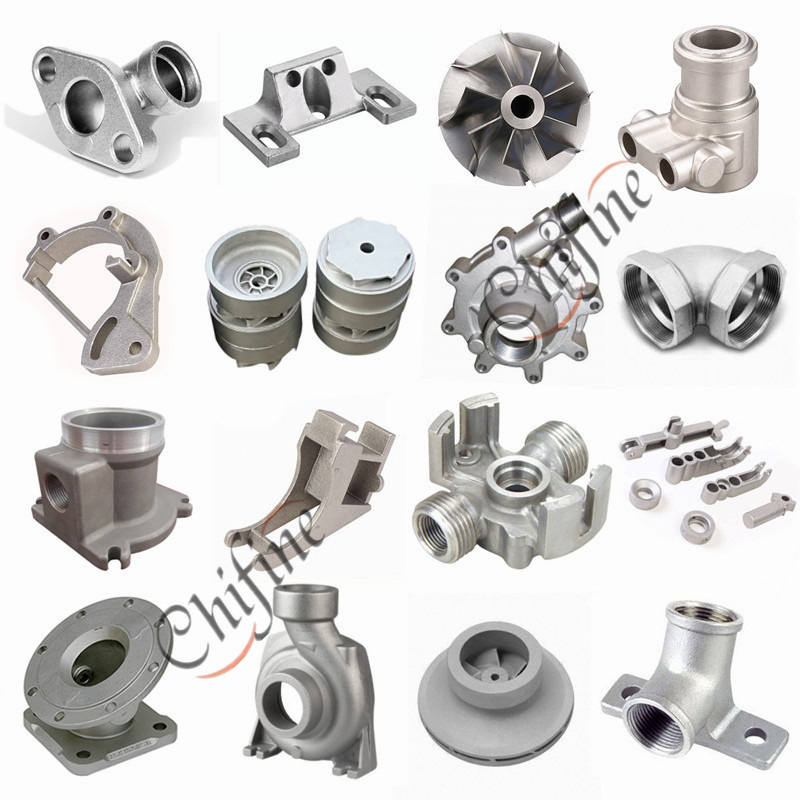

4. Applicaion: Industrial parts, machinery parts, valve parts, train, craft, doorhandle, construction, etc
5. OEM service is available
6. We can do the parts according to the clients' drawings or sample or special requirement.

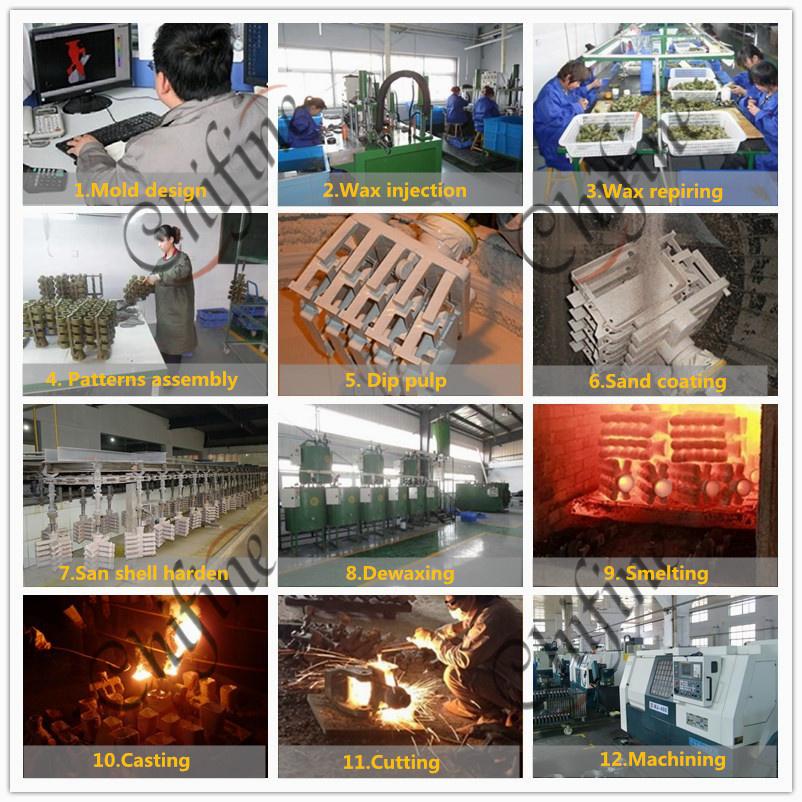

LOST WAX CASTING PROCESS
| Item | Description |
| Process | Process design; Mould manufacture; Wax pattern made; Module combining; Shell made; Module dewaxing; Shell rosting; Conventional casting; Gate removing; Precise finishing; Argon arc welding; Sand blasting; Clearing and finishing; Heat treatment; Correction and inspection |
| weight | 0.05kg to 50kg |
| Material | SS:303,304,304L,316,316L,CF8,CF3,CF8M,CF3M,1.4308,1.4408,1.4404,SCS13,SCS14,CD4,5AA etc
CS:C20, C40, C45, WCB, WCC , 4340 etc
AS: 15Cr3, 15CrNi6, 16MnCr5, 42CrMo4, 35CrMo, 40Cr etc |
| Dimension | As your requests |

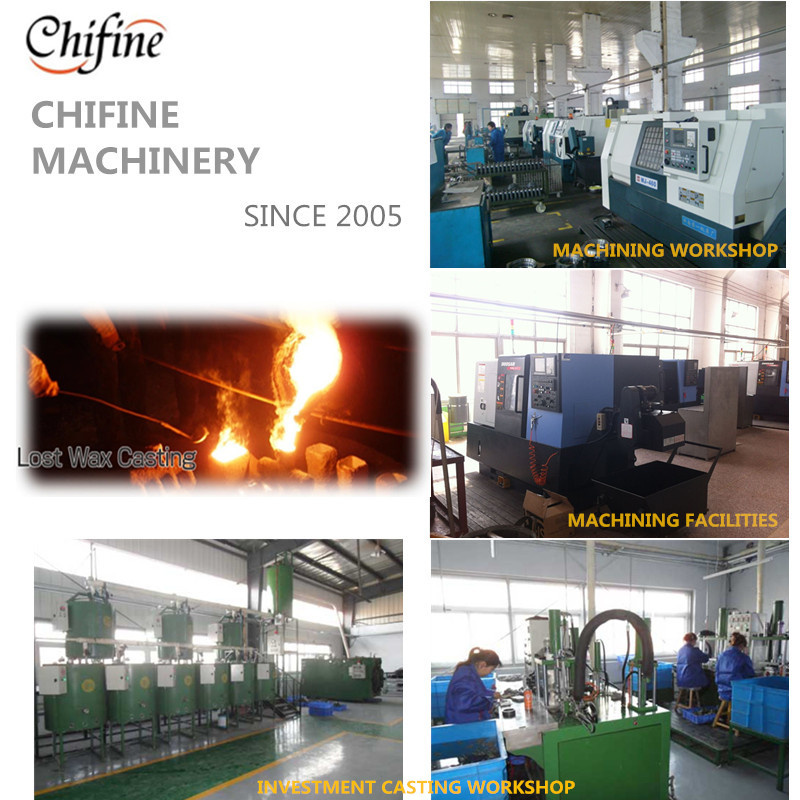

Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
