| Prod Model: |
ASTM, ANSI, DIN, EN, JIS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Stainless Steel Flange |
| Title: |
Steel Flange |
| Keywords: |
Carbon Steel |
| Nominal Diameter: |
Dn10~Dn2000 |
| Daimeter At Base Of Hub: |
21~717 |
| Thickness: |
11~70 |
| Shipment: |
Container |
| Colour: |
Metal Shining |
| Weight: |
as Required |
| Size Range: |
Dn10~Dn2000 |
| Material: |
Carbon Steel |
| Type: |
Welding Flange |
| Standard: |
BSW |
| Manufacturing Way: |
Forging |

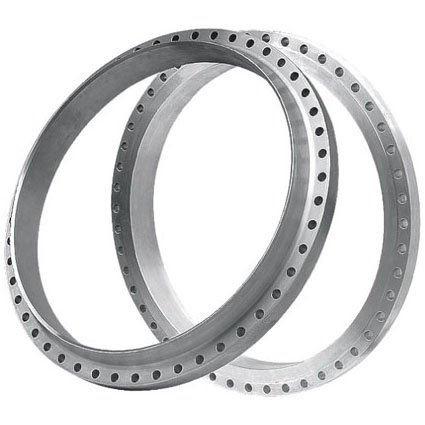

Product Description
EN / ANSI pipe connection carbon steel flange wiht SGS
1.Type
Welding Neck Flange, Slip On Flange, Blind Flange, Socket Welding Flange, Threaded Flange, Reducing Flange, Spectacle Blind Flange, Orifice Flange Special flanges according to drawing
2.Connect Face
Raised face, Flat Face, Male& Female face, Tongue and Groove face, Ring Type Joint face, etc
3.Pressure:
150#, 300#, 600#, 900#,1500# ,5K,10K,16K,20K.DIN2573, 2572, 2631, 2576, 2527, 2632, 2543, 2527, 2633, 2545, 2527, 2635, 2634,
4.Executive Standard
ASME B16.5 ,B16.36,B16.47,B16.48, ANSI/AWWA C207, API 605,API590, EN1092 , EN1759, EN 1514, DIN 2848,DIN2874,BS1560,BS3293, BS4504 ,ISO7005, JIS B2220 JIS2216 JPI 7S-15 SABS 1123.
5.Material
A105/A105N, A182 F11,F12,F304,F304L,F316L, A350 LF1,LF2,LF3,LF5,LF9;A694F42,F46,F48,F52,F60,F70,P245GH,P280GH,P305GH
6.Surface Treatment and Packing
Paint Black Lacquer or Transparent Oil .Wooden Case or Wooden Pallet or as per customers' requirements.
We manufacture all kinds of flanges, such as forged Slip-On flange, blind flanges, welded neck flange, blind flange, LWN and more as Customer requirements.
| The General ASTM Material For Flanges |
|
Class and Sort
| Chemical Components % | Mechanical Property |
|
| C(Max) | Si(Max) | Mn(Max) | Cr(Max) | Ni(Max) | Mo(Max) | P(Max) | S(Max) | Tensile Strength
mpa(Min) | Yield Strength
mpa(Min) | Elongation
mpa(Min) | Hardness
(Max) |
ψ % |
ASTM
A105/A105M | A105 | 0.35 | 0.10-0.35 | 0.65-1.05 | 0.30 | 0.40 | 0.12 | 0.035 | 0.040 | 485 | 250 | 22 | 187 | 30 |
ASTM
A182/A182M | F11CL1 | 0.05-0.15 | 0.50-1.00 | 0.30-0.60 | 1.00-1.50 | ... | 0.44-0.65 | 0.030 | 0.030 | 415 | 205 | 20 | 121-174 | 45 |
| F11CL2 | 0.10-0.20 | 0.05-1.00 | 0.30-0.80 | 1.00-1.50 | ... | 0.44-0.65 | 0.040 | 0.040 | 485 | 275 | 20 | 143-207 | 30 |
| F11CL3 | 0.10-0.20 | 0.05-1.00 | 0.30-0.80 | 1.00-1.50 | ... | 0.44-0.65 | 0.040 | 0.040 | 515 | 310 | 20 | 156-207 | 30 |
| F12CL1 | 0.05-0.15 | 0.50 | 0.30-0.60 | 0.80-1.25 | ... | 0.44-0.65 | 0.045 | 0.045 | 415 | 220 | 20 | 121-174 | 45 |
| F12CL2 | 0.10-0.20 | 0.10-0.60 | 0.30-0.80 | 0.80-1.25 | ... | 0.44-0.65 | 0.040 | 0.040 | 485 | 275 | 20 | 143-207 | 30 |
| F304 | 0.08 | 1.00 | 2.00 | 18.0-20.0 | 8.0-11.0 | ... | 0.045 | 0.030 | 515 | 205 | 30 | ... | 50 |
| F304H | 0.04-0.10 | 1.00 | 2.00 | 18.0-20.0 | 8.0-11.0 | ... | 0.045 | 0.030 | 515 | 205 | 30 | ... | 50 |
| F304L | 0.030 | 1.00 | 2.00 | 18.0-20.0 | 8.0-13.0 | ... | 0.045 | 0.030 | 485 | 170 | 30 | ... | 50 |
| F316L | 0.030 | 1.00 | 2.00 | 16.0-18.0 | 10.0-15.0 | ... | 0.045 | 0.030 | 485 | 170 | 30 | ... | 50 |
| F317 | 0.08 | 1.00 | 2.00 | 18.0-20.0 | 11.0-15.0 | ... | 0.045 | 0.030 | 515 | 205 | 30 | ... | 50 |
| F321 | 0.08 | 1.00 | 2.00 | 17.0-19.0 | 9.0-12.0 | ... | 0.045 | 0.030 | 515 | 205 | 30 | ... | 50 |
| F347 | 0.08 | 1.00 | 2.00 | 17.0-19.0 | 9.0-13.0 | ... | 0.045 | 0.030 | 515 | 205 | 30 | ... |
send inquiries now!
get the latest price !
JiangSu GangYu pipeline equipment Co., Ltd located at beautiful Taihu Lake side, Wuxi City, Jiangsu Province, is a professional manufacturer
Specializing in steel pipe and pipe fittings. The various pipe & tube products we produced and dealt with are including the following,
5mm*1mm~1200mm*200mm seamless steel pipe,
OD 38mm~127mm cold rolled seamless steel pipe,
OD127mm~1200mm (± 0.5%)wall thickness16mm ~200mm (± 0.5%) hot rolled seamless steel pipe,
16Mn OD 400mm ~1600mm wall thickness 20mm~60mm spiral seam steel pipe,
MAX. Length 16m square seamless steel pipe,
Shaped seamless steel pipe,
Elbow, flange, tee, cross, reducer, bend, pipe cap, steel socket-welded fitting and construction factener, etc.
Also, with an experienced and high-tech R&D team, we can manufacture customized nonstandard pipe fittings by design or requirements.
Our company has over 30 years experience in pipe fittings business and our good reputation is well-known among our customers. The total area of
Our cooperative manufactory is 30, 000 square meters and has the complete advanced equipments and instruments for survey
, experiment and analyze. We guarantee every single product we are producing and carry out our Customer First, Quality First spirits.
Welcome to visit our company for mutual benefit and brilliant future.
