| Prod Model: |
SL504 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Steel |
| Color: |
Galvanized |
Product Description
1)The manufacturering process can be the high quality alloy steel with the method of drop-forging and hammer forging. All forging parts with the heat treatment.
2)In order to make the better impact resistance, load capacity, toughness and enlongation, which can greatly improving the safety and longevity.
3)Dip Coating, Painting, Galvanized, Hot-dipped.
4)Safety factor 4 times or 6 times, testing load 2.5 times.
5)The Max load capacity can be in your requirements as 100T-1000T.

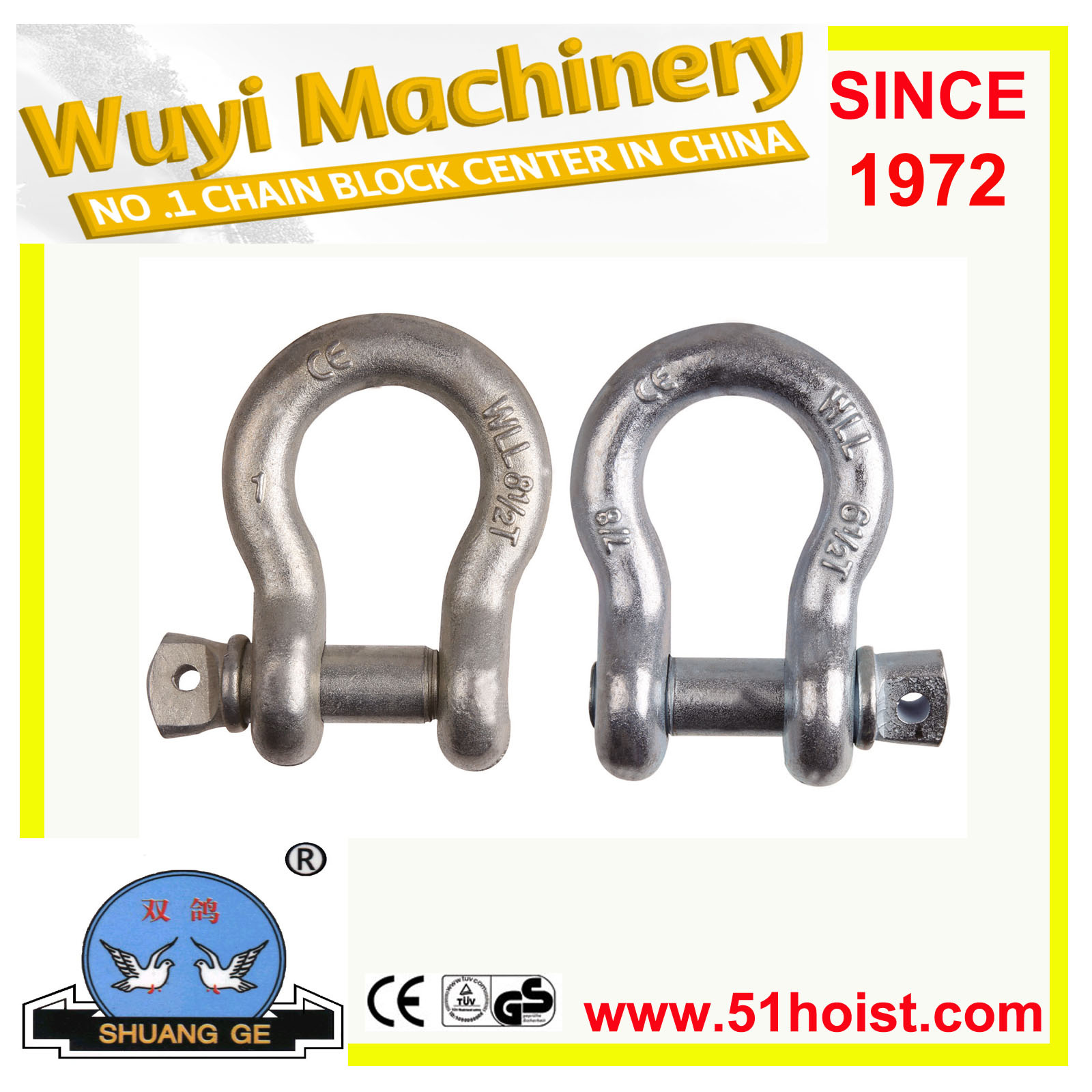

| G209 U.S HNCHOR Shackle |
| Item NO. | WLL/T | A | B | D | E | F | G |
| WY504-1/2 | 2 | 20 | 16 | 12 | 33 | 29 | 58 |
| WY504-5/8 | 3.25 | 27 | 19 | 16 | 43 | 38 | 75 |
| WY504-3/4 | 4.75 | 32 | 22 | 19 | 51 | 46 | 89 |
| WY504-7/8 | 6.5 | 38 | 25 | 22 | 58 | 53 | 102 |
| WY504-1 | 8.5 | 43 | 28 | 25.5 | 68 | 60.5 | 119 |
| WY504-1/8 | 9.5 | 48 | 32 | 29 | 74 | 68.5 | 134 |
| WY504-1/4 | 12 | 50 | 36 | 32 | 81 | 76 | 145 |
| WY504-3/8 | 13.5 | 55 | 38 | 35 | 90 | 84 | 160 |
| WY504-1/2 | 17 | 60.5 | 42 | 38 | 97 | 92 | 173 |
| WY504-3/4 | 25 | 73 | 50 | 44.5 | 127 | 106.5 | 216 |
| WY504-2 | 35 | 83 | 56 | 51 | 146 | 122 | 248 |
| WY504-1/2 | 55 | 103 | 70 | 63 | 181 | 144.5 | 307 |
| WY504-3 | 85 | 130 | 80 | 80 | 210 | 165 | 370 |
| WY504-1/2 | 120 | 145 | 95.5 | 95 | 215 | 198 | 405 |

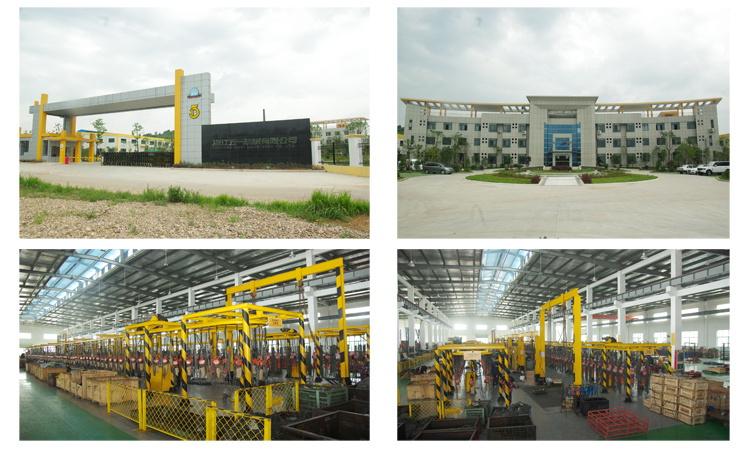

Zhejiang Wuyi Machinery Co., Ltd. is located in Quzhou, a famous historic city in Zhejiang province.
Established in 1972, with the brand of PEACE BIRD, SHUANGGE, WUYI, we are one of the largest manufacturers of chain block, lever block, load chain and various hoisting equipment in China.
Zhejiang Wuyi Machinery Co., Ltd. Has more than 400 employees and covers a total area of about 200, 000 square meters. CE, TUV, GS certification approved.
We got the National gold award by China central government in twice time, we are the only light hoisting company who can get this special honor.
Our products have been exported to more than 60 countries and regions throughout the world in Europe, America, MID-east, Australia, South-eastern Asia, Africa etc., We have won a good reputation among our customers by providing high quality, safe and reliable products as well as fast and efficient services
We sincerely welcome all the clients over the world to establish long-term cooperative relationship with us.
