Product Description

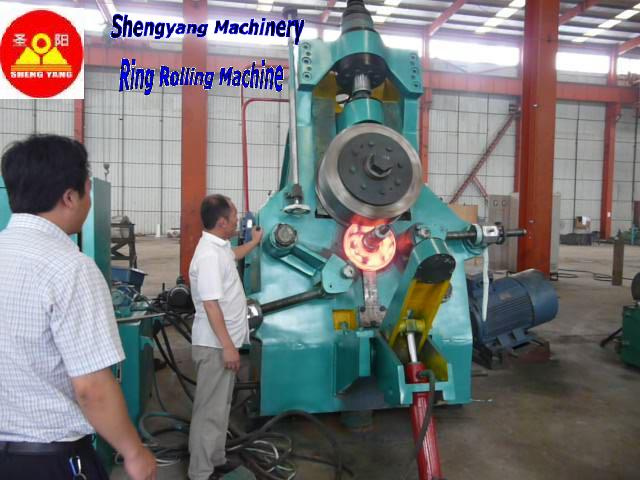

D51-550B Vertical type Ring rolling mill
1. Usage: To process seamless and ringlike rings by metal rolling hot forging technology
2. Workpiece material: Carbon steel, alloy steel, bearing steel, stainless steel, aluminium and copper and so on.
3. Application: Bearing, flanges, gear rings, wheel hub, crown wheel and so on.
4. Advantage: Small volume, compact structure, material and power saved, high quality and good price and so on.
5. Marketing: Eastern Asia, South Asia, Southeast Asia, Western Europe, Eastern Europe, Northern Europe, Southern Europe, North America, South America, MID East
6. Delivery time: 50 days about after advance payment
7. Packing: Container, Steel-plywood cases
8. Certificate: CE certificate
ISO9001: 2008
|
No. |
Item |
Parameter |
Unit |
|
1 |
Outside Diameter of Ring |
350-600 |
mm |
|
2 |
Maximum Height of Ring |
300 |
mm |
|
3 |
Maximum Rolling Force |
550 |
KN |
|
4 |
Rolling Speed |
1.3 |
M/s |
|
5 |
Main roller diameter |
760 |
Mm |
|
6 |
Min center distance for main roller and mandrel |
380 |
Mm |
|
7 |
Large end of taper sleeve |
110 |
mm |
|
8 |
Slider Stroke |
150 |
mm |
|
9 |
Power of Main Motor |
132 |
Kw |
|
10 |
Boundary Dimension |
5800× 4000× 3500 |
L× W× H(mm) |
Zhucheng Shengyang Machinery Co., Ltd. is a high-technology enterprise, which specializes in research & development & manufacture for Ring Rolling Machine. After several years' innovation and development, our company has established a complete set of rigorous management system and perfect marketing network, which consists of technical development and lot manufacturing, quality control and market planning. " Basing on Ring Rolling, Serving for Forging" is our target.
We have developed and manufactured D51A, D51B, D52 and D53K series of Ring Rolling Machine which include more than 40 specifications. D51A & D51B series of vertical type Ring Rolling Machine have advantages of small volume and compact structure and saving material and power and so on, which also widely used for hot rolling of ringlike blank in bearing forging and auto gear and flange manufacture industry. D52 & D53K series of CNC horizontal type Ring Rolling Machine have the following advantages: Advanced structure, numerical programme control, high automation degree and productivity and saving material and power and so on. Especially D53K CNC Ring Rolling Machine, it can roll rings simultaneously in radial and axial direction and is the ideal equipment of processing large scale seamless rings, which has been widely used in spaceflight, aviation, ship, petrochemical industry and power industry and so on.
"Forging first-class products, pursuing customer's satisfaction" is our management principle. We are able to develop and manufacture all kinds of equipments according to customer's different requirements. We also have researched and developed forging charging-discharging machine, forging manipulator and forging hydraulic machine matching with our large scale Ring Rolling Machine. You are always welcome to SHENGYANG.
