Motor Housing:
Aluminum
Impeller:
Brass
Mechanical Seal:
Stainless Steel/Carbon-Ceramic
Power:
Electric
Structure:
Single-stage Pump
Theory:
Vortex Pump
Application:
Clarified Water Pump
Material:
Cast Iron
Type:
Peripheral Pump
Product Description

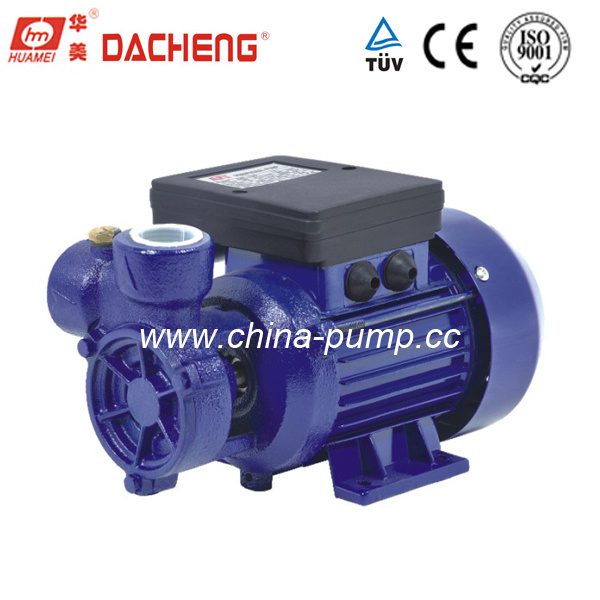

DB Series Peripheral Water Pump
14 years expericen of manufacturing water pump
All our products are with CE approved (EMC and LVD)

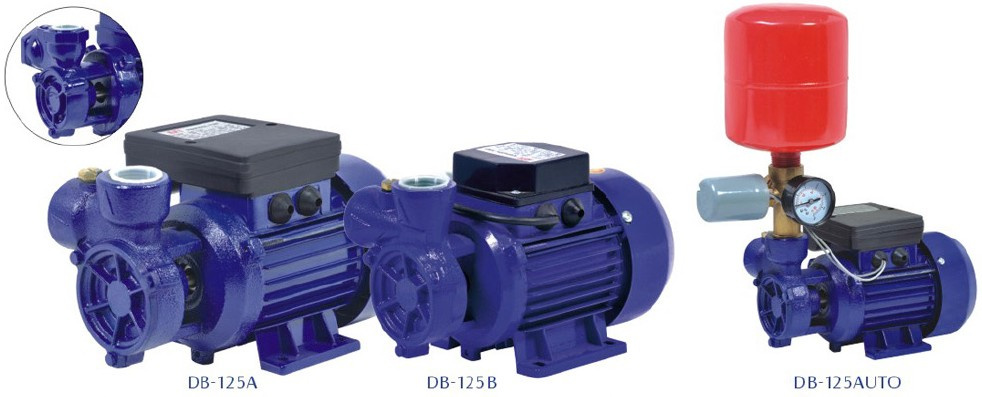

Models: DB-125B
Single phase, Self priming, Peripheral impeller, High head
Stator: 100% pure wire with top
Rotor: Enough sillicone steel sheet with high durability
Shaft: Rust resistance with 45# steel or stainles steel
Compact size and Simple operation
Heavy duty continuous work.
High-efficient and Low noise
OUR ADVANTAGE
Self manufaturing pump castings, stators, rotors to ensure the every details from raw material phurchase, manufacturing and processing procedure to the packing and testing procedure.
Self procucing pump spare parts improves the assembling quality and fitness.
PRODUCTS CONSTRUCT
Pump
Pump body: Cast Iron
Impeller: Brass
Mechanical seal: Carbon/ceramic/Stainless Steel
Motor
Single Phase
Motor Housing: Aluminum (closed, externally ventilated)
Power: 220-240V 50HZ( single phase 230V, 240V, 127V, 110, 115V/60Hz are available)
OPERATING CONDITION
Liquid temperature up to 60
Ambient temper up to 40
Total suction lift to 9m
Continuous duty
APPLICATION SCOPE
Farmland and Garden irrigation
High buildings water supply
Industrial and Urban area drainage
Pressure boost

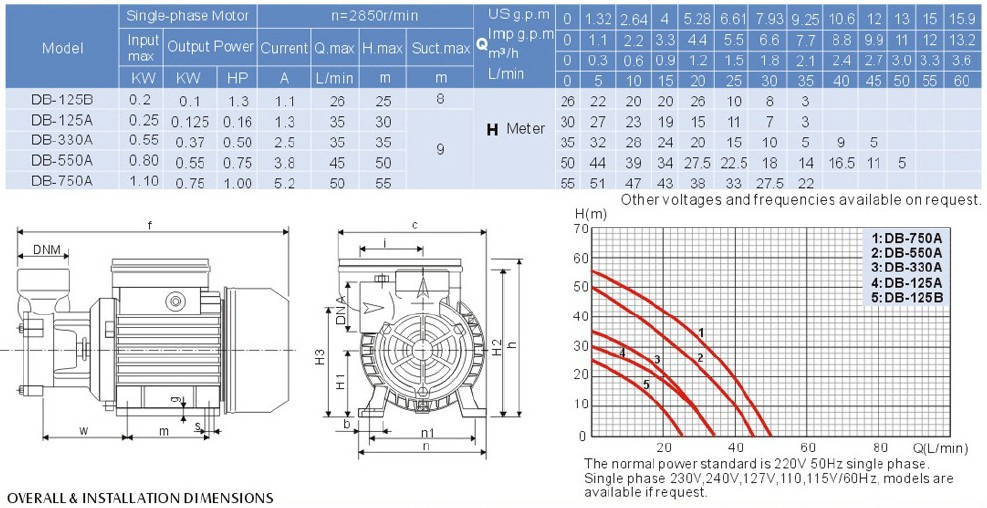

TECHNICAL DATA(220-240V/50HZ)
Model
Single-phase Motor
N=2850r/min

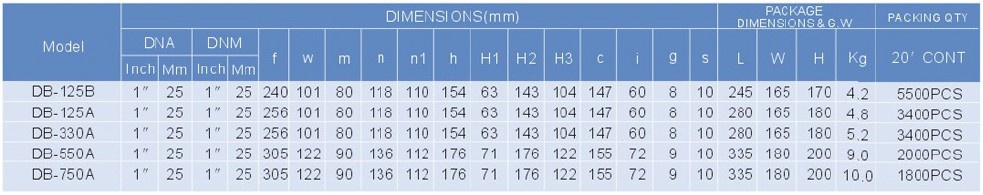

PACKAGEDIMENSION &GW
Input Max
Output Power
Current
Q.max
H.max
Suct.max
KW
KW
HP
A
L/min
m
m
L
W
H
Kg
DB-125B
0.2
0.1
1.3
1.1
26
25
8
245
165
170
4.2
DB-125A
0.25
0.125
0.16
1.3
35
30
9
280
165
180
4.8
DB-330A
0.55
0.37
0.50
2.5
35
35
9
280
165
180
5.2
DB-550A
0.80
0.55
0.75
3.8
45
50
9
335
180
200
9.0
DB-750A
1.10
0.75
1.00
5.2
50
55
9
335
180
200
10.0
