DC Cc Mill Finish Sheet Aluminium Coil Roll for Automobile

Name: DC Cc Mill Finish Sheet Aluminium Coil Roll for Automobile
Brand: china-castingforging.com
SKU: 768074865
Availability: InStock
Rating: 4.9 (45 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Ton
Pay Type:	T/T,Western Union

Contact Supplier

Shenzhen Guangshenfa Metal Co., Ltd.

Showroom Product Company Profile

Prod Model:	1100 1050 1060 3003 3105 8011 5052
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	1100 1050 1060 3003 3105 8011 5052
Thickness:	0.1-6mm
Width:	10-2540mm or as Customer's Request
Package:	Export Standard Packing or Customers' Demand
Place Of Origin:	Shenzhen,China
Delivery:	7-30 Days After Deposit
Type:	Aluminum Coils
Application:	Glass Wall
Surface Treatment:	Mill Finish
Alloy:	Alloy
Temper:	O - H112
Certification:	ASTMB
Shape:	Coil
Grade:	1000 Series-7000 Series
Technique:	DC Cc

Product Description

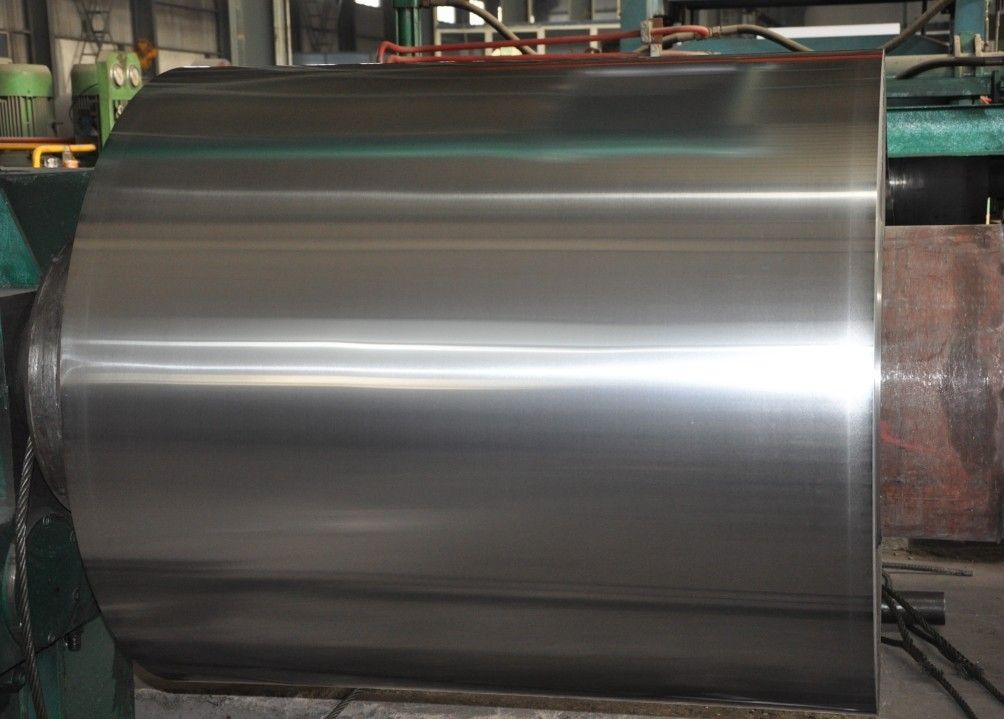

DC CC Mill Finish Sheet Aluminium Coil Roll for Automobile

Quick Detail:

PRODUCT

ALLOY

TEMPER

THICKNESS

WIDTH

I.D(mm)

APPLICATION

Aluminum Coil/Strip

1050,1060,1070,

1100,1200,1235,

1145,3003,304,

3105,3A21,

8011

O H12 H14

H16 H18 H22

H24 H26

0.1-6mm

10-2540mm

75,150

200,300

400,505

(as customers's

request)

construction, decoration,

automobile, electronic,

machinery, boat construction,

aeronatics & astronautics,

cookware, packing etc.

Description:

Specifications of Aluminum Coil :

1. Grade

1000 Series: 1050 1060 1070 1100 1200 1235 etc.

3000 Series: 3003 3004 3005 3102 3104 3105 3A21 etc.

5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc.

6000 Series: 6061 6063 6082 6A02 etc.

7000 Series: 7050 7075 7475 etc.

8000 Series: 8006 8011 8079 etc.

2. Thickness: 0.20mm-320mm

3. Width: 8mm-2400mm

4. Length: 1220 or per customer's request

5. Temper: all tempers, H1X, H2X, H3X, O, HXXX

6. Continuous casting and hot rolled both available

Chemical composition

	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Al
1060	0.250	0.350	0.050	0.030	0.030.-	-	0.050	0.030	99.6
1070	0.200	0.250	0.040	0.030	0.030	-	0.040	0.030	99.7
1100	Si+Fe:0.95		0.05-0.2	0.050	-	-	0.100	-	99.0
3003	0.600	0.700	0.05-0.20	1.0-1.5	-	-	0.100	-	remains
3105	0.600	0.700	0.300	0.30-0.8	0.20-0.8	0.200	0.400	0.100	remains
5052	0.250	0.400	0.100	0.100	2.2-2.8	0.15-0.35	0.100	-	remains
5154	0.250	0.400	0.100	0.100	3.1-3.9	0.15-0.35	0.200	0.200	remains
5754	0.400	0.400	0.100	0.500	2.6-3.6	0.300	0.200	0.150	remains
5182	0.200	0.350	0.150	0.20-0.50	4.0-5.0	0.100	0.250	0.100	remains
6061	0.3-0.7	0.500	0.100	0.030	0.35-0.8	0.030	0.100	-	remains
8011	0.5-0.9	0.6-1.0	0.100	0.200	0.050	0.050	0.100	0.080	remains
8079	0.200	0.300	1.0-1.6	0.100	0.6-1.3	0.100	0.250	0.100	remains

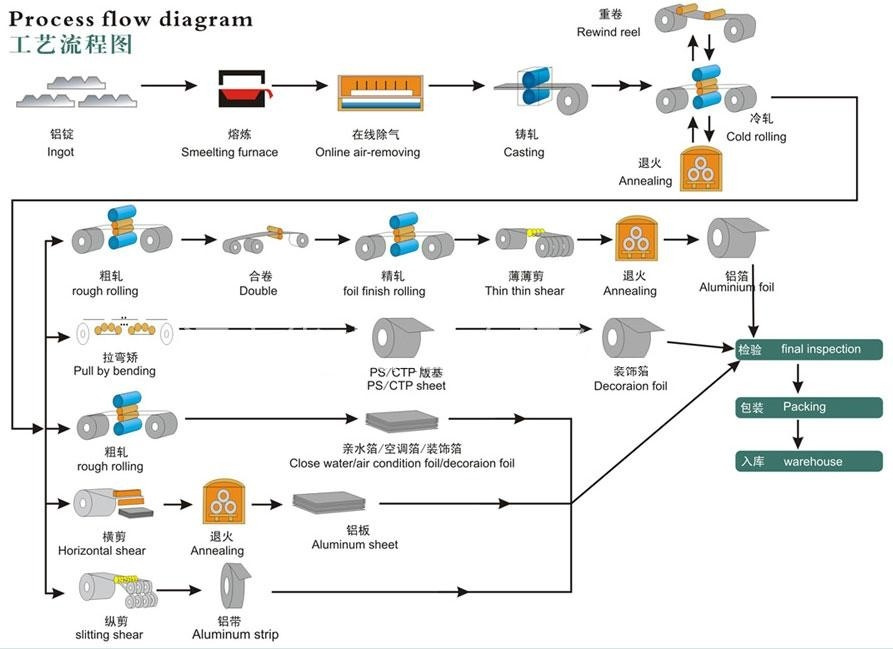

Manufacturing of Aluminum Coil:

Ingot + Master Alloy → Melting → Holding Fumace → Continuous Casting → Cold Rolling(Mediate Annealing) → Tension Leveling → Aluminum coil

Application of Aluminum coil:

transformer strip,

PS printed materials substrate,

building decoration materials,

stamping products,

building mirror materials,

nameplate,

insulation materials,

aluminum plastic composite material,

capacitor strip,

welding parts,

heat exchanger,

clock surface and disk,

kitchen utensils,

reflecting apparatus etc
