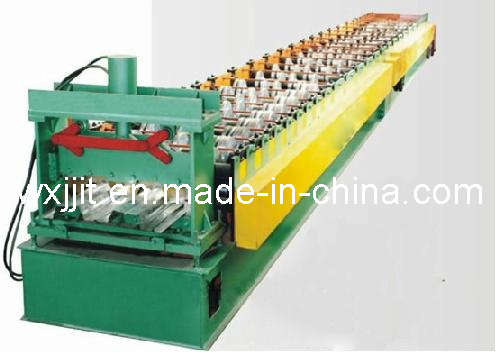

Deck Roll Forming Machine (JJM-688)

Deck Roll Forming Machine (JJM-688)
Price: Negotiable
Min Order: 1
Prod Model: JJM-688
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Metal Rolling&Drawing Machine

Product Description

JWC688

Floor Deck Roll Forming Machine
Auto-de-coiler------roll guider------leveler and feeding------continuous hole punching-------forming------positioning and cutting-------collection
Floor Deck forming machine Performance
Range of raw material

Material: Galvanized zinc plate, low carbon steel plate, such as Q235
Thickness of raw material: 1.0≤ -≤ 2.0mm
250≤ -≤ 400mm
Width of raw material: 250≤ -≤ 400mm
Production area: 30m X 3m
Total power: 42KW
Air supply: 0.9m3/min, pressure is: 0.6-0.7MPa

Main parts parameters:
Auto-de-coiler
Inner expansion type with max. 3tons
Drive: 2kw frequency change motor
Inner diameter of coil 500~520mm, out diameter: ≤ 1200
Speed control by auto induction device.
One pair of horizontal roll and two pair of vertical rolls.
With function of homonymous and guide movement.
Floor Deck forming machine Level machine
Correction roller: Up 4/ down 4 with one pair of feeding roller front and back each.

Lever range: Max. Length450mm, max. Thickness 1-2mm
Drive: 4kw frequency change motor
Drive: 1kw electrical control servo-feeding.
Feeding distance: Can be set up as request
Continuous hole punching part
Punching machine: JE21-80 (80 tons)
Floor Deck Roll Forming Punching mould
Material of punching moulds: Cr12 quenching treatment, hardness58-62.
Main Floor Deck Roll Forming machine
Frame: Dragon type frame, side roller change system.
Forming frame: 18 stations

Max. Feeding width≤ 400mm, max. Thickness: 1.0≤ -≤ 2.0mm
Diameter of roller shaft: 70mm,
Material of roller shaft: 40Cr, heat treatment.
Material of roller: GCr15, quenching treatment, hardnessHRC56-62
Motor power: 22kw frequency change motor, ZQ400 reducer.
Drive type: Gear drive type for each frame (excepting main drive)
Flat Sheet Slitting and Cutting Machine

Cutting section
Hydraulic cutting
Hydraulic station: 5.5kw
Material of blade: Cr12, quenching treatment.

Electric control
PLC control system, LCD operation with encoder for length controlling.
AGICO is a main manufacturer of Floor Deck forming machine in China, who have specialised in the design of Floor Deck Roll Forming and Flat Sheet Slitting and Cutting Machine. High quality, best service.
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!

To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.

Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.

Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
