Product Description
Specifications
1. Auto-tensioning coil inside the machine
A. Mounted roll diameter
B. Maximum width 1000mm mounted volumes
C. Maximum load weight: 6000kg
D. Hydraulic Power: 3kw
E. Motor Power: 3kw
F. Cylinder diameter: 120mm
G. Working Pressure: 10Mpa
2 forming the host
A. Rack row floor: 24 rows: 24 steps
B. Spindle material 45 # steel modulation processing, diameter 80mm. Material 15GCR roller bearing steel processing HRC58-60 ° .
D. Main motor power: 22kw
E. Rolling speed: 9-12m / min
F. Stent 350 # steel welding jobs
G. Roll the surface of hard chromium plating thickness of 0.05mm.
3 Hydraulic Cutter
A. Blade material: Cr12 quenched
B. Cut off system: The use of advanced hydraulic drive, forming automatically feet cut off, no deformation, no waste, a higher safety factor (host stop off)
4 Electronic Control System
A. OSD: The Taiwan and Taiwan reached 5.7-inch touch screen
B. The host computer (PLC): Use of Taiwan and Taiwan reached DVP14ES
C. Encoder: The South Korean Autonics ENC-1-1-1t-24
5 hydraulic system
A. Use of Taiwan's advanced hydraulic system
B. Power: 4KW
1. Leak frame load-bearing: 5T
2. Rack: Welding with 350H steel
3. The form of forming machine guiding filling: Side skip
4. The form of forming machine: Chain drive with wallboard type
5. Diameter of Shaft is: 90mm
6. Chain: 0.6 inch single row
7. Main motor power: 4kw double pole reduction box
8. Forming Speed: 1.5m/min
9. Number of tracks: 27 tracks
10. Roller material: High grade 45#steel
11. Hydraulic station power: 3kw
12. Hydraulic station oil pump: Gearpump
13. Cutting type: Hydraulic cut
14. Forming Cutting blade: Cr12
15. Heat treatment on cutting blade: HRC58° -60°
16. Thickness of coil sheet: 0.3-0.8mm
17. Coil width of material: 1000mm
18. Index error of length: ± 2mm
19. Controlling system: PLC
20. Voltage: 380V 3phase 60 Hz or at buyer's requirement.
|

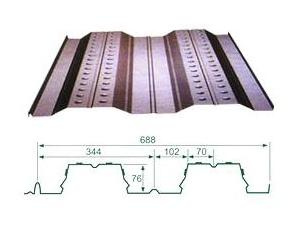

Pressed Steel Type |
688 |
usage |
|
Effective coverage width |
688mm |
|
Expand Width (mm) |
1000(mm) |
steel bearing plate floor |
|
Thickness (mm) |
0.8 |
1.0 |
1.2 |
|
Cross-section from the inertia (cm4 / m) |
91.62 |
119.38 |
142.01 |
|
Cross-section to withstand the distance (cm3 / m) |
23.46 |
30.58 |
36.98 |
