| Prod Model: |
hydraulic, 5 or 10 ton |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Sky Blue or Water-Ripple Green |
| Main Application: |
Decoiling Coil Sheet and Feed Into Forming Machine |
| Type: |
Cold Roll Forming Machine |
Product Description

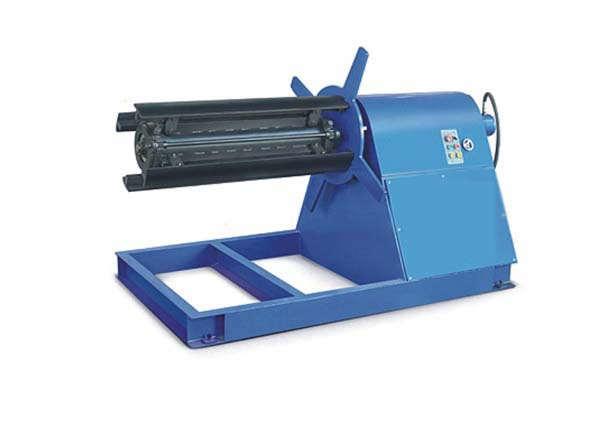

Standard Decoiler, 5 or 10 ton
Specialized in the filed of roll forming machine since 1998, with 12 years' experience. Manufacture both standard and customized Roof Forming Machine, as per their specific needs and requirements.
|
main technical parameters |
|
usage |
automatic feeding steel coils into forming machine |
|
type |
inner tighten and fixing |
|
inside diameter of coil |
500-600mm |
|
outside diameter of coil |
1600mm |
|
coil width |
max 1250mm |
|
loading weight |
5 or 10 ton |
|
speed adjustable |
0-20r/min |
|
motor power |
5.5KW, with hydraulic brake device |
Established in 1998, Botou Zhenyuan Roll Forming Machine Factory is specialized in designing and producing roof and wall roll forming machines.
Our products are widely applied to manufacturing colored steel tiles which get extensive application in industry workshop, warehouse, residence, etc. They have won high reputation for their satisfying quality among our customers.
