| Prod Model: |
BG-30/40/50/60/80/100 |
| Markets: |
Southeast Asia,Africa,Mid East,Eastern Asia |
| Certificate: |
ISO9001 |
| Place Of Origin: |
Foshan, China |
| Brand: |
Bg |
| Warranty: |
One Year |
| Type: |
Cutting&Welding Machine |
Product Description

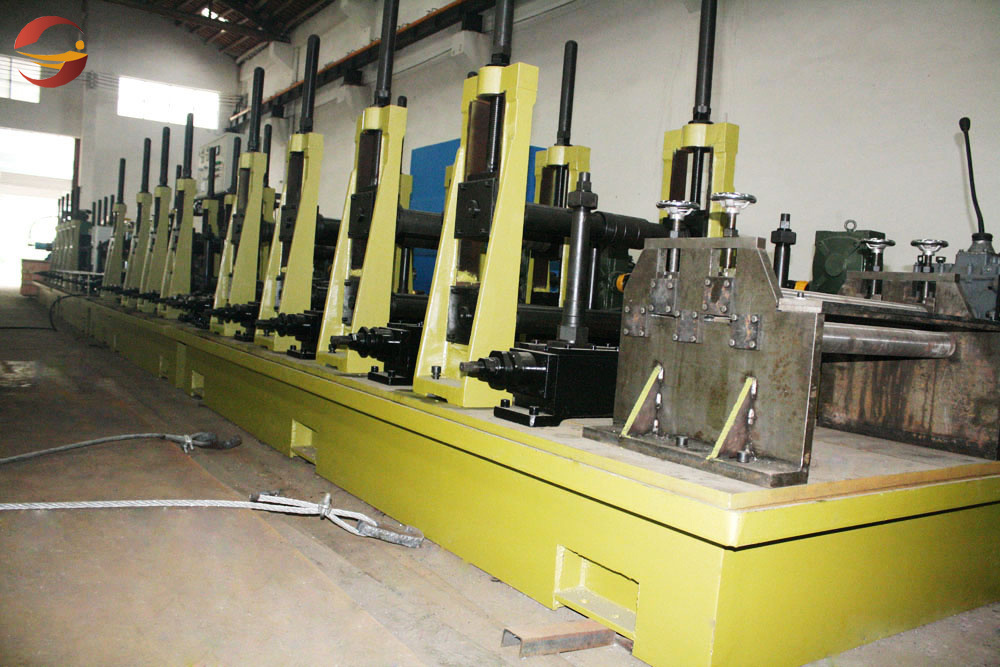

1. Automatic stainless steel pipe welding machine, decorative stainless steel pipe making machine, tube forming machine.
2. Application: Mainly used for decoration, products, appliances stainless steel pipe and carbon steel (round tube, square tube, shaped tube) production.
3. Automated production process: The open book, play marks, forming, welding, grinding, sizing, straightening, fixed length, cut, splice and other continuous molding process.
4. Fine structure, easy operation, excellent products, made in Baiguan.
5. Machinery main components: Open book machine, forming welding machine, grinding machine, sizing machine, frame straightening, cutting machine, finished frame.
6. Certificate: ISO9001
7. Warranty: One year.
8. Packing: Standard export package, safe for container transportation.
9. After-sale Services:
Provide the relevant shipping charge information, take charge of loading and the relevant shipping procedure, focus on the safety of the goods and the shipping time.
Provide the technical documents about machinery installation, maintenance, operation and so on.
Provide the technical support about the machinery installation, maintenance, operation and so on.
Provide the equipment list of the main components.
Responsible for the equipment installation and commissioning guidance.
Provide one year warranty (man-made damage without insurance, the vulnerability of non-insurance).
Provide post-paid warranty service after shelf life.
Foshan charged affairs for the customers: Apply for the certificate, find the relevant products of this industry, find the master worker, provide the information we know of the relevant weld pipe industry.
Provide our customers with limited space for short-term storage of other company's products, provide charged affairs for express and shipping.
Model |
Horizontal axis diameter (mm) |
Vertical diameter (mm) |
Pipe
diameter
(mm) |
Pipe thickness (mm) |
Main motor power |
Mechanical assembly size
(Length X Width) |
|
BG-30 |
30 |
25 |
6-25 |
0.2-0.8 |
4KW |
19, 5m X 1.0m |
|
BG-S40 |
40 |
25 |
6-32 |
0.2-1.0 |
5.5KW |
20m X 1.0m |
|
BG-40 |
40 |
25 |
9-51 |
0.2-1.5 |
7.5KW |
21.5m X 1.1m |
|
BG-L40 |
40 |
25 |
12-64 |
0.3-2.0 |
11KW |
21.5m X 1.1m |
|
BG-50 |
50 |
30 |
25-76 |
0.3-2.0 |
11KW |
24m X 1.2m |
|
BG-60 |
60 |
40 |
38-114 |
0.4-2.5 |
15KW |
26m X 1.4m |
|
BG-80 |
80 |
50 |
76-168 |
1.0-3.5 |
18.5KW |
32m X 2.3m |
|
BG-100 |
100 |
60 |
114-219 |
1.0-4.0 |
22KW |
36m X 2.5m |
|
Heater plane |
30 |
20 |
5-16 |
0.2-1.0 |
4KW |
17m X 0.9m |
|
Machinery main components: open-book machine, forming welding machine, grinding machine, sizing machine, straightening frame, cutting machine, finished frame |
Foshan Baiguan Science and Technology Co., Ltd, located in Foshan Shishan Industrial Park, is a whole-plant equipment manufacturer of the stainless steel tube mill, specialized in research, development, design, production, sales, and support services.
Our company has strong technical force and overall quality. We have a professional welded pipe R & D team, management team, and more than 50 capable technicians. Also, we established an advanced computer simulation laboratory and workshop in equipment development experiments.
We strictly carry out the ISO9001 international quality management system standard. After several years development and innovation, through the staff's pursuing and full use of modern management and advanced precision machinery processing equipment, we establish a complete operating system throughout home and abroad. Quality products and attentive service not only have won a large number of loyal customers for the company, but also achieved recognition from the industry and authorities.
Based on stainless steel welded pipe equipment, we created our brand of "BG" for a dozen specifications of products, including industrial pipe making machine, weld seam-inside leveling machine, bright annealing equipment, high frequency welding tube mill, stainless steel decoration pipe making machine, polishing machine, mold, embossing machine, milling machine etc.
To go with the development of the times, and to meet the diverse needs of customers, our company will go hand in hand with a innovation attitude. As customers continue to recognize, our products have been selling both at home and abroad.
Our company's corporate philosophy is " win by technology, strive for excellence". We forge ahead by working ways of "scientific, rigorous, innovative"; Hunt for the latest industry information with sharp market insights. We are LED by market demand. Customer-oriented is our core value. We are sure to provide our customers with quality products and first-class services.
We warmly welcome you to visit our company and negotiate win-win cooperation so as to create a better future!
Keyword: Tube Mill, Polishing Machine, Pipe Making Machine, Stainless Steel Pipe Machine
