| Prod Model: |
ML-1600/1800/2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process: |
Paper Machine |
| Usage: |
Packing Paper Machine |
| Type: |
Paper Cutting Machine |
| Certification: |
CE |
| Automatic Grade: |
Semi-Automatic |
| Placing Form Of Template: |
Vertical |
| Imprinting Type: |
Platen |
| Application: |
Earthquake Products |
| Die Cutting Tool: |
Steel Blade |
Product Description
1) High pressure with low noise
2) 4step helical gear mechanism
3) Equip with International famous brand electric components
Creasing and Die Cutting Machine is a special equipment for creasing and die cutting cardboard, corrugated board, plastic board and leather, and is widely used in printing, packaging and plastic industries. It is characterized by compact structure, fine workmanship, high pressure, high precision and easy and reliable operation.
1) High strength due to whole body casting with high quality material.
2) Smooth running, high pressure and low noise with 4-step helical gear mechanism.
3) Single plate electromagnetic clutch is sensitive and reliable.
4) Operational altitude is reasonably arranged, moving-bed opens to its maximum.
5) Electrical system is designed in conformity with IEC standard.
6) Single, continuous operation and opening delay are available, delay range adjustable.
7) Reliable safety system.
8) Adjustable chases.

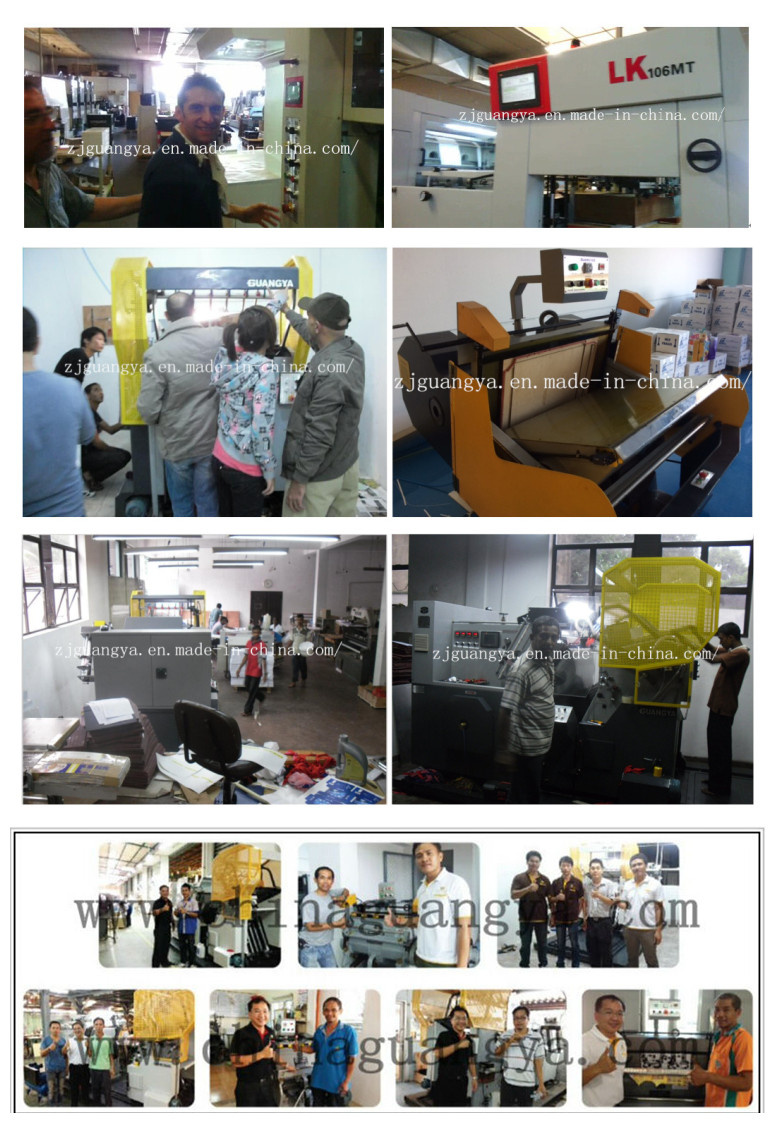

Machines work in customers' workshop:

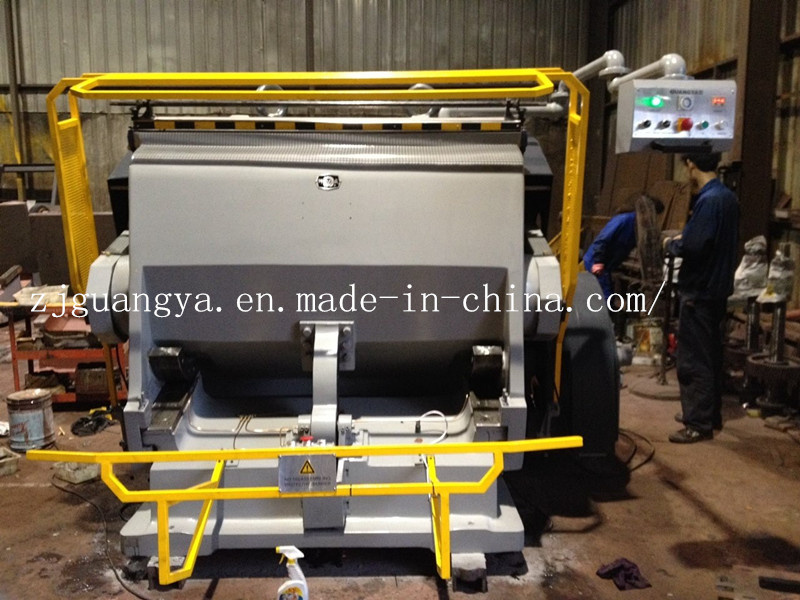

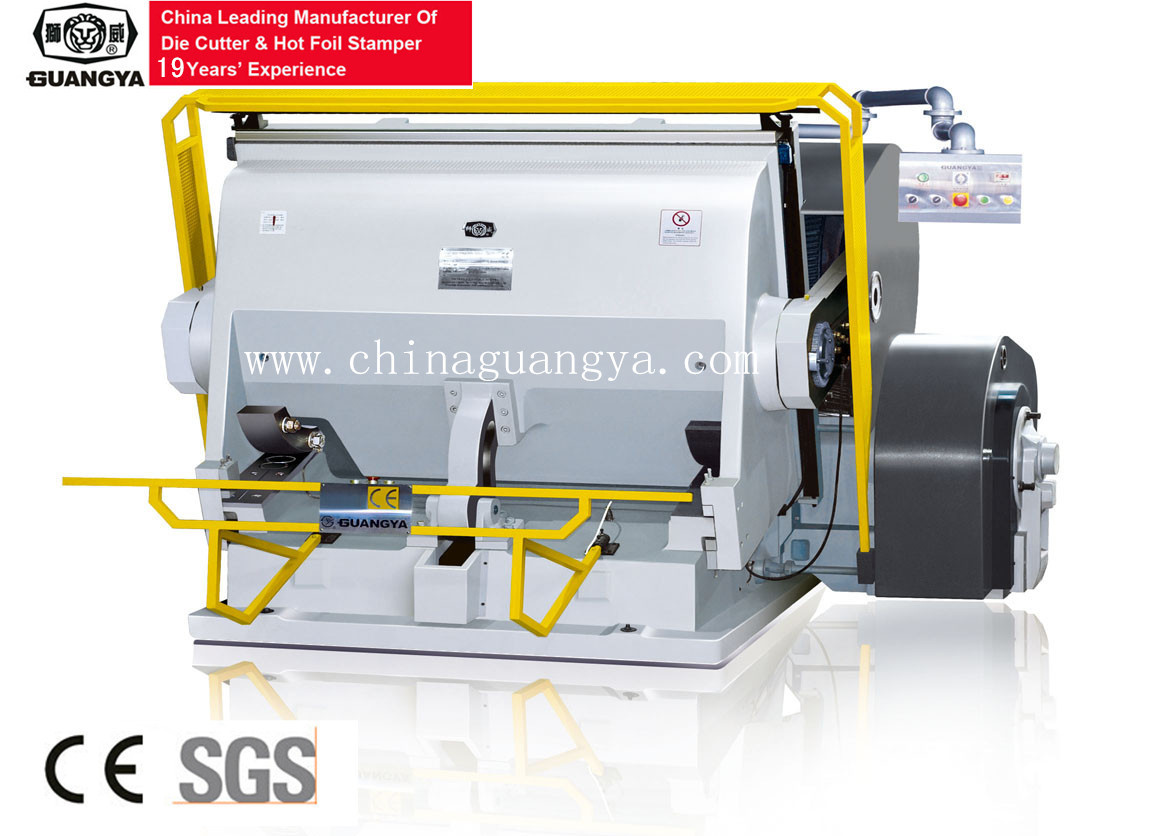

Machine photo:

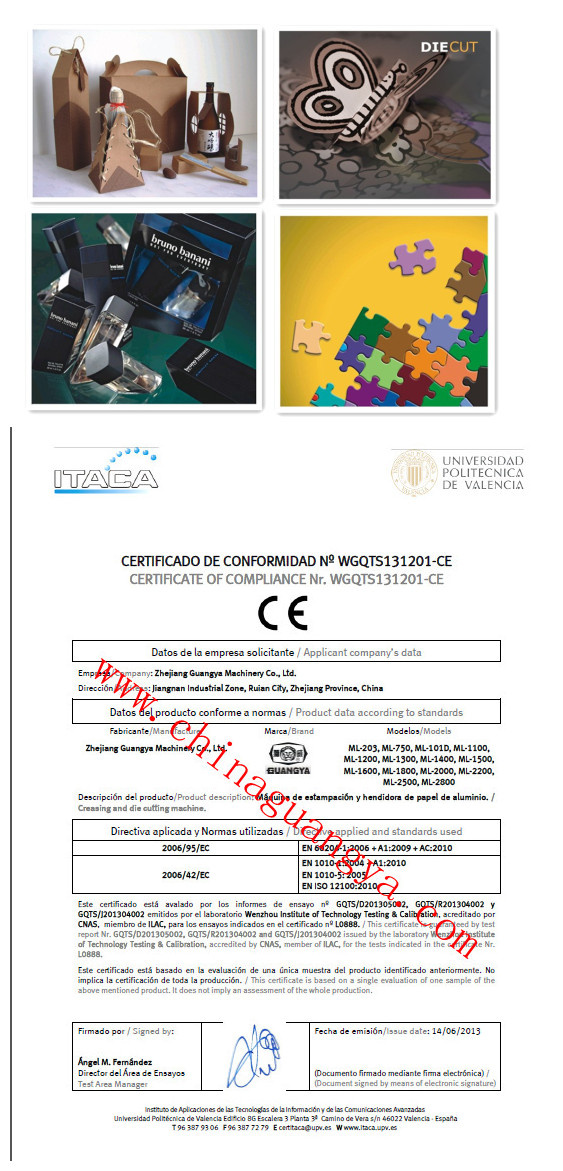

Die cutting sample and CE certificate:
| Model | ML-2000 | ML-1800 | ML-1600 |
| Inside chase (mm) | 2000× 1400 | 1800× 1300 | 1600× 1250 |
| Max. die cutting size (mm) | 2000× 1400 | 1800× 1300 | 1600× 1250 |
| Speed (cuts/min) | 16± 2 | 16± 2 | 16± 2 |
| Max. rule length (m) | ≤ 58 | ≤ 50 | ≤ 43 |
| Power main motor (kw) | 15kw | 11kw | 11kw |
| Gross weight (kg) | 16500 | 14200 | 12000 |
| Dimensions (L× W× H)(mm) | 3500× 2200× 2180 | 2900× 2300× 2180 | 2700× 2300× 2180 |
