Die Cutting and Creasing Machine (ML1100)

Name: Die Cutting and Creasing Machine (ML1100)
Brand: china-castingforging.com
SKU: 742855865
Availability: InStock
Rating: 5 (61 reviews)

Price:	US $ 3800-3900/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Heng Sheng Technology (Hk) Limited

Showroom Product Company Profile

Prod Model:	ML1100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Pyq401c
Inner Chase Size:	750X520mm
Speed:	25
Motor Power:	2.2kw
Machine Weight:	2000kgs
Dimension Size:	2300X1500X1500mm
Warranty:	One Year
Condition:	New
Place Of Original:	China
Imprinting Type:	Platen
Placing Form Of Template:	Horizontal
Die Cutting Tool:	Steel Plate
Automatic Grade:	Semi-Automatic
Application:	Insulating Materials

Product Description

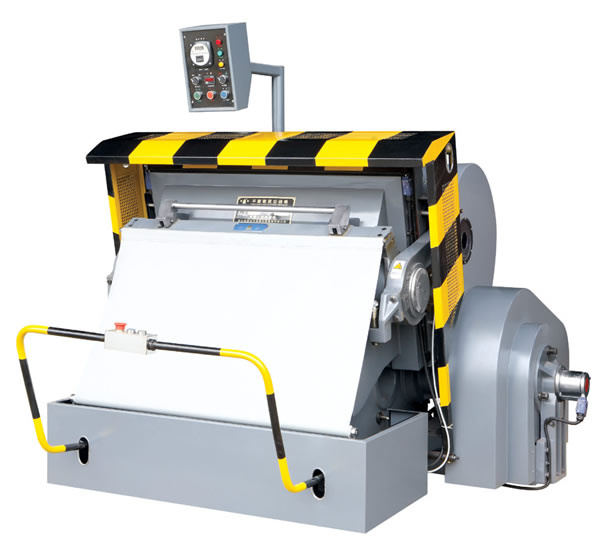

Die cutting and creasing machine (ML1100)

Usage:

Creasing and cutting machine is special equipment for creasing and cutting ordinary cardboard, corrugatedboard, plastic and leather. It's very applicable to printing packaging decoration and plastic industries. The machine has compact structure, in workmanship, big pressure, high precision and easy and reliable operation etc.
Main Specification:

High strength due to one piece casting by using top quality material for the machine body.
Smooth running, big pressure and low noise are obviously remarked as lnter gear input and helical gear
output mechanism is adopted.
Single plate electromagnetic clutch is sensitive and reliable.
Operational altitude is reasonably arranged, movable platen opens to its optimum.
The electrical system is designed in conformity with IEC standard.
With functions as single, continuous operation and opening dwell. And the dwell time is adjustable.
The safety system is reliable.
With concentrated lubricating system.

Model	Inner Chase Size	Speed	Max.Rule Length	Motor Power	Machine Weight	Overall Dimensions
PYQ401C	750×520mm	25	<15m	2.2kw	2000kg	2300×1500×1500mm
PYQ203C	930×670mm	23±3	<25m	4kw	3000kg	2350×1900×1800mm
PYQ203A	930×670mm	23±3	<30m	5.5kw	3500kg	2350×1900×1800mm
ML1100	1100×800mm	20±2	<30m	5.5kw	4500kg	2450×2100×1900mm
ML1200	1200×820mm	20±2	<32m	5.5kw	5000kg	2500×2100×1900mm
ML1300	1300×920mm	15±2	<40m	7.5kw	6000kg	2550×2100×1950mm
ML1400	1400×1000mm	15±2	<45m	7.5kw	6500kg	2650×2100×2000mm
ML1500	1500×1050mm	14±2	<45m	7.5kw	7000kg	2700×2100×2150mm
ML1500A	1500×1150mm	14±2	<45m	7.5kw	7300kg	2700×2100×2200mm
ML1600	1600×1250mm	13±2	<50m	11kw	11500kg	2800×2250×2300mm
ML1800	1800×1280mm	13±2	<60m	15kw	13000kg	3000×2250×2350mm
ML1800A	1800×1400mm	13±2	<60m	15kw	14000kg	3000×2300×2500mm
ML2000	2000×1400mm	12±2	<65m	15kw	15500kg	3100×2330×2600mm
ML2200	2200×1400mm	12±2	<68m	18kw	16500kg	3300×2330×2800mm
ML2500	2500×1400mm	12±2	<70m	18kw	18500kg	3600×2330×3100mm
